- Page 1 Car AV User Manual Model Name : LC7F-D...

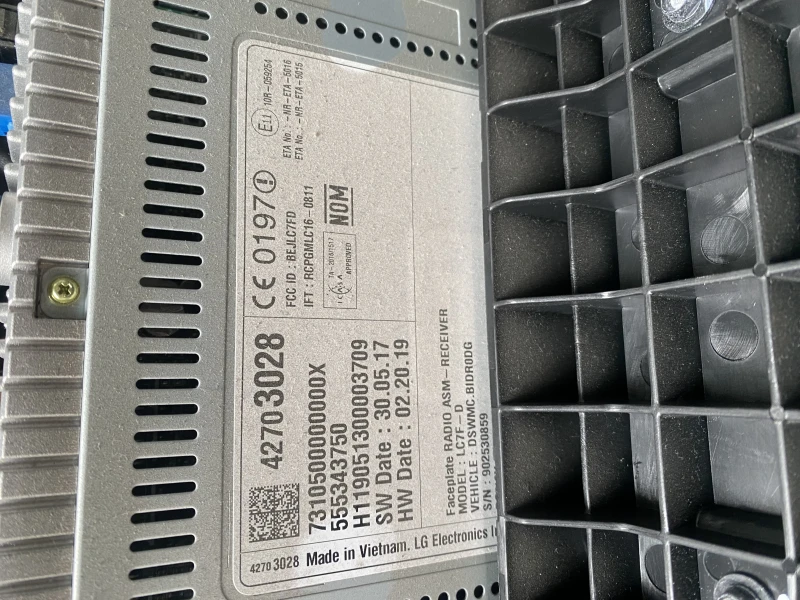

- Page 2 5) Connect a portable music player to the auxiliary sound input to enjoy the rich sound of the Infotainment system. (2) Specifications *Product Item Categories Specifications Product Name Faceplate RADIO ASM-RECEIVER Model LC7F-D Dimensions Refer to image Weight 1.48kg(Dual/Single) Specification Power source DC 12V Operational -30 ℃ ~ 80 ℃...
- Page 3 *RF specifications [ BT ] Item Specifications Unit Frequency 2400 ~2483.5 Modulation Type GFSK, Π/4-DQPSK, 8-DPSK BT Power Power class 2 Datarate 1 ~ 3 Mbps channel spacing BT version BT 3.0 [ WiFi ] Item Specifications Unit Standard IEEE 802.11 a/b/g/n 2.4G 2400 ~ 2484 Frequency...
- Page 4 2. Component...
- Page 5 3. Operation Item (#No.) Description (1) Display Display for Play/Reception/Menu state and information. (2) HOME button Press this button to enter the home menu. (3)/(6) Seek button Press this button to seek the station or media contents. Press and hold this button to turn the power on/off. (4) POWER button Press this button to turn the mute function on/off.
- Page 6 (8) Interactions | Rotary Knob *Rotate *Push Users can rotate the Volume Users can press on the center of knob on the faceplate. the rotary-push knob to mute volume. (9) Touch Gestures *Tap *Press & Hold *Fling/Swipe *Pinch & Spread...
- Page 7 4. Precautions 1) Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving and always be fully aware of all driving conditions. Do not change settings or any functions. Pull over in a safe and legal manner before attempting such operations.
- Page 8 FCC Part 15.21 statement • Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. RF Exposure Statement (MPE) • The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times.
