- Page 1 BT-720 Patient monitor Operation Manual Keep this manual for future reference P/N : 720-ENG-OPM-EUR-R03...
- Page 2 Information furnished by Bistos Co., Ltd is believed to be accurate and reliable. However, no responsibility is assumed by Bistos for its use, or any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Bistos Co., Ltd.
-
Page 3: Table Of Contents
BT-720 Operation manual Contents Safety information --------------------------------------------------------------------------4 0.1 General precautions, warnings and cautions --------------------------------------5 0.2 Shock hazards -----------------------------------------------------------------------------7 0.3 Battery warnings -------------------------------------------------------------------------8 0.4 General precautions on environment -----------------------------------------------9 System basics ----------------------------------------------------------------- --------------9 1.1 Intended use ------------------------------------------------------------------------------10 1.2 Operating principle ----------------------------------------------------------------------10 1.3 System configurations ------------------------------------------------------------------10... - Page 4 BT-720 Operation manual Caring and cleaning -----------------------------------------------------------------------27 10.1 Overview ---------------------------------------------------------------------------------27 10.2 Cleaning ----------------------------------------------------------------------------------27 10.3 Disinfection ------------------------------------------------------------------------------28 Maintenance --------------------------------------------------------------------------------28 11.1 Checking ----------------------------------------------------------------------------------28 11.2 Maintenance plan ----------------------------------------------------------------------29 Accessories --------------------------------------------------------------------------------- 29 Specifications -------------------------------------------------------------------------------30 13.1 Safety specification --------------------------------------------------------------------30 13.2 Hardware specifications --------------------------------------------------------------30 13.3 Functional specification --------------------------------------------------------------31 Common faults and maintenance -----------------------------------------------------32 Manufacturer’s declaration on EMC -------------------------------------------------33...
-
Page 5: Safety Information
BT-720 Operation manual 0 Safety information Before using BT-720 Patient monitor, read this entire manual and be fully understood the following safety information to prevent injury of patient and user. Symbols Used The following symbols identify all instructions that are important to safety. Failure to follow these instructions can lead to injury or damage to the patient monitor. -
Page 6: General Precautions, Warnings And Cautions
The recommended inspection interval is once per week or less. Do not use the patient monitor if there is any visible sign of damage. Only the DC power adapter supplied with the BT-720 is approved for use with the device. •... - Page 7 BT-720 Operation manual WARNING Thoroughly read and understand the manual prior to use of the BT-720. Failure to • do so could result in personal injury or equipment damage. The device is intended for clinical patient monitoring, and only trained and •...
-
Page 8: Shock Hazards
BT-720 Operation manual this manual. Do not remove the covers of a BT-720 yourself to avoid damage to the equipment • and unexpected electrical shock. Only qualified Bistos service engineer must repair or replace components. CAUTION Please install or carry the instrument properly to prevent damage due to falling, •... -
Page 9: Battery Warnings
Power off when the Do not disjoint or disassemble equipment is not fully the device. Bistos Co., Ltd. does ready to operate. not have liability of it. Otherwise, the equipment could be damaged. -
Page 10: System Basics
The BT-720 patient monitors are intended to be used only under regular supervision of clinical personnel. It is suitable for adult and pediatric, neonate. -
Page 11: Operating Principle
1.2 Operating principle Refer to the chapters for every physiological parameter from chapter 5 to chapter 6. 1.3 System configurations Basic configuration of BT-720 • Main body with 4.3” touch screen and built-in lithium-ion battery • Adult SpO2 probe and extension cable •... -
Page 12: Product Outlook

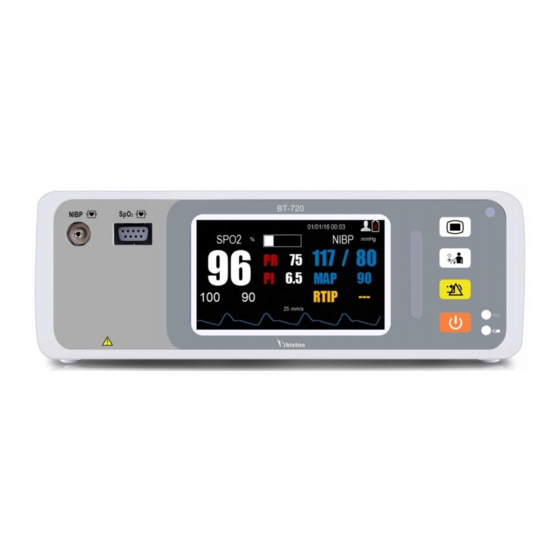

BT-720 Operation manual 1.4 Product outlook Figure1-1: Front view Figure1-2 : Rear view 1.5 Description of monitor Figure1-3: Front view Name Description NIBP tube interface. This is option. When you purchase the monitor NIBP only with SpO2, this interface will be blocked. -
Page 13: Understanding The Display
BT-720 Operation manual DC power Turned on when the monitor is being powered by the adapter. indicator On: The battery is being charged or has been fully charged. Battery indicator Off: The battery has not been installed. Flashing: The monitor is being powered by the battery. -
Page 14: Essential Performance
2.1.1 Unpack and check BT-720 patient monitor was inspected rigorously at the factory before delivery, in order to avoid being hit when transported, carried out careful packaging. Before unpacking, carefully inspect the package. If any damage, please immediately contact the Bistos. Unpack in the correct way, carefully remove the monitor and accessories from the box and check with the packing list. -
Page 15: Connecting To Power
BT-720 Operation manual 2.1.2 Placement requirements Equipment installation must meet: Ensure that the operating floor and the monitor have enough space for connecting the accessory wires. 2.1.3 Power requirements DC power supply adapter Input: A.C. 100 V ~ 240 V, 50/60 Hz Output: D.C. -
Page 16: Turn Off
If any fatal error occurs during self-test, the system will alarm. If this case persists, please stop to using the monitor and contact the maintenance personnel or Bistos. Check all available monitor functions to ensure that the monitor operate properly. - Page 17 BT-720 Operation manual Select “Backlight”, and enter value（Range: 0-5）, 5 is the brightest. Select “Alarm Reminder Signal”, you can choose “On”, or “Off”. Select “Alarm Reminder Interval”, you can choose “1min”, “2min”or “3min”. Select “Date Format”, and set the date format in accordance with custom “YYYY-MM-DD”: Year- Month-Day.
-
Page 18: Spo
The monitor is defibrillation proof, so the monitor operates normally after defibrillation. 5.2 Safety information WARNING Please use SpO2 sensor supplied from Bistos, operate in accordance with the Manual, and observe all warnings and precautions. Before monitoring, check whether the sensor cable is normal. When SpO sensor cable is ... -
Page 19: Monitoring Steps
BT-720 Operation manual 5.3 Monitoring steps Select the appropriate SpO sensor according to the patient. Turn on the monitor, and connect the SpO lead wire to the monitor. Clean the measurement site, such as finger with nail polish. Put the SpO sensor probe on the patient’s finger or toe. -
Page 20: Measuring Influencing Factor
BT-720 Operation manual 349）, Adult/ Pediatric /Neonate default: 50/75/100 Select “PR High Limit”, and enter value（Adult Range: 16-300, Pediatric/Neonate Range: 16- 350）, Adult/ Pediatric /Neonate default: 120/160/200. Alarm ,Select “Default”, the alarm parameter is set to the default value ... -
Page 21: Safety Information
BT-720 Operation manual Produce first most clear signal - reflect SBP Oscillation amplitude reaches the peak - reflect MAP When the cuff pressure is suddenly lowered - reflect DBP Measuring mode: manual mode and automatic mode. Each mode shows systolic, mean and diastolic blood pressure. -
Page 22: Measurement Limits
BT-720 Operation manual 6.3 Measurement limits According to the patient's condition, the oscillometric method has some limitations. This measurement is to look for the regular pulse waves generated by arterial pressure. If the patient's condition makes this detection method difficult, the measured value becomes unreliable, and pressure measurement time increases. -
Page 23: Setting Nibp
BT-720 Operation manual wrap too tight around the limb, or it may cause distal discoloration or even ischemia. 6.4.2 Patient posture requirements during measurement Sit comfortable or lie down relaxedly. No crossing legs. Back and elbow should be supported. The center of NIBP cuff and the right atrium are at in the same level. -
Page 24: Clean And Disinfection Method Of Nibp Cuff
BT-720 Operation manual Select “Start Measure”, starts the blood pressure measurement; select “Stop Measure”, stop the blood pressure measurement. Select “Continue Measure”, continued measure pressure. Select “Reset”, and restore the inflation pressure of the blood pressure pump to currently configured initial settings. -
Page 25: Review
BT-720 Operation manual Prepare enzyme cleaning agent, distilled water and 10% solvent, respectively in different spray bottle. Sprinkle cleaning agent on NIBP cuff, connector and extension tube, keep 1 minute for the dry stains. Use a soft cloth to wipe smooth face. Use soft hair brush to brush visible stain and irregular surface Rinsed with copious amounts of distilled water. -
Page 26: Alarm
BT-720 Operation manual Select ‘SpO2’, ‘PR’ or ‘PI’ to see. Press key to exit the Trend screen and display the Main screen or press the [Setting] key to see the NIBP Trend. Select key to page up and down to view patient data. -
Page 27: Battery
BT-720 Operation manual NIBP signal weak NIBP over range NIBP signal unstable NIBP over pressure NIBP signal saturated NIBP system error Measurement timeout 9 Battery 9.1 Overview The monitor has a built-in rechargeable battery to ensure that the monitor can also be used normally in case of patient transfer or power failure. -
Page 28: Checking Battery Performance
BT-720 Operation manual 9.3 Checking battery performance Please refer to the following steps to check the battery performance: Disconnect the monitor from the patient and stop all monitoring or measurement. Connect DC power to the monitor, and charge battery for more than 4 hours uninterruptedly. -
Page 29: Disinfection
Wipe the monitor and sensor surface with medical alcohol, dry it naturally or with clean, dry, lint-free cloth. Bistos is not liable for effectiveness of using these chemicals for infectious disease control. Please consult the infectious disease control officers or experts of the hospital for advice. -
Page 30: Maintenance Plan
Safety and maintenance checks may also be carried out by the Company's personnel. 11.2 Maintenance plan The following tasks can only be done by qualified service personnel of Bistos. When the following maintenance is needed, please contact your service representative. Before testing or maintenance, clean and disinfect the device. -
Page 31: Specifications
BT-720 Operation manual Optional accessories list is as follows: Description Type-number Manufacturer: Adult Non-Invasive Shenzhen Med-link Electronics Tech Co.,Ltd blood pressure cuff Y000A1 Manufacturer: XIAMEN CONJOIN ELECTRONICS TECHNOLOGY CO., NIBP extension tube CJP37-C12B1 13 Specifications 13.1 Safety specifications 13.1.1 Product category In accordance with classification specified in the European Medical Device Directive 93/42/EEC, this monitor is Class IIb device. -
Page 32: Functional Specification
BT-720 Operation manual Battery status indicator 1 green Audio Alarm sound (45 ~ 85 dB), key pressing sound Speaker PR sound Alarm sound meet the IEC 60601-1-8 standard requirements Alarm signal Alarm delay Off, 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s, depending on the setup... -
Page 33: Common Faults And Maintenance
The following table shows the common faults on the operation, and the solution. Faults Solution Not power on Check the battery. If the battery is low, please contact to Bistos. Blank Screen Check the screen and screen line. The system time is not... -
Page 34: Manufacturer's Declaration On Emc
15.1 Electromagnetic emissions The BT-720 is intended for use in the electromagnetic environment specified below. The customer or the user of the BT-720 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance The BT-720 uses RF energy only for its internal function. -
Page 35: Recommended Separation Distances Between Portable And Mobile Rf Communications
15.2 Recommended separation distances between portable and mobile RF communications equipment and BT-720 The BT-720 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BT-720 can help prevent... -
Page 36: Electromagnetic Immunity
BT-720 Operation manual 15.3 Electromagnetic immunity The BT-720 is intended for use in the electromagnetic environment specified below. The customer or the user of the BT-720 should assure that it is used in such an environment. IEC 60601 Electromagnetic Immunity test... - Page 37 BT-720 Operation manual The BT-720 is intended for use in the electromagnetic environment specified below. The customer or the user of the BT-720 should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level...
-
Page 38: Product Warranty
Sales Agency Manufacture Bistos Co., Ltd. ※ Thank you for purchasing BT-720. ※ This product is manufactured and passed through strict quality control and inspection. ※ Compensation standard concerning repair, replacement, refund of the product complies with “Framework Act on Consumers” noticed by Fair Trade Commission of Republic of Korea.
