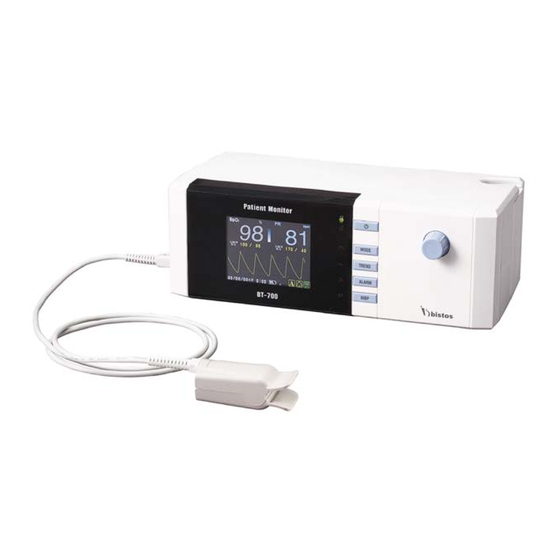

BT-700
Patient Monitor
OPERATOR MANUAL
BT-700
Keep this manual for future reference
P/N: 700-ENG-OPM-EUR-R02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-700 and is the answer not in the manual?

Questions and answers

Related Manuals for Bistos BT-700

Summary of Contents for Bistos BT-700

  • Page 1 BT-700 Patient Monitor OPERATOR MANUAL BT-700 Keep this manual for future reference P/N: 700-ENG-OPM-EUR-R02...
  • Page 2 BT-700 Operator Manual Proprietary Material Information and descriptions contained in this manual are the property of Bistos Corporation and may not be copied, reproduced, disseminated, or distributed without express written permission from Bistos Corporation. Information furnished by Bistos Corporation is believed to be accurate and reliable.

  • Page 3: Table Of Contents

    BT-700 Operator Manual Table of Contents 1. SAFETY ................5 1.1 Instructions for the Safe Operation and Use of the BT-700 ......5 1.2 Warnings ......................5 1.3 Cautions ......................6 1.4 Definitions of Symbols ..................9 2. INTROCUTION ..............10 2.1 Brief Device Description &...
  • Page 4 BT-700 Operator Manual 7. CLEANING AND DISINFECTION ........23 7.1 Monitor ......................23 7.2 Sensors......................23 8. TROUBLESHOOTING AND MAINTENANCE ....25 8.1 Sensors......................25 8.2 Battery Disposal and Handling ..............25 8.3 Maintenance ....................25 8.4 Troubleshooting ..................... 25 9.

  • Page 5: Safety

    The recommended inspection interval is once per week or less. Do not use the monitor if there is any visible sign of damage.  Only the AC line cord supplied with the BT-700, or its equivalent, is approved for use with the Unit. ...

  • Page 6: Cautions

    BT-700 Operator Manual WARNING: SHOCK HAZARD — BT-700 doesn't have protection against the burn injury caused by RF Surgical equipment. Do NOT use this product along with RF Surgical equipment. WARNING: The power receptacle must be a two wire non-grounded outlet.
  • Page 7 BT-700 Operator Manual CAUTION: Accessory equipment such as RS-232 and USB connected to the analog and digital interfaces must be certified according to the respective IEC standards ( e.g. IEC 950 for data processing equipment and IEC 601-1 for medical equipment ). Furthermore all configuration shall comply with the system standard EN 60601-1-1:2001 If in doubt, consult the technical service department or your local representative.)
  • Page 8 Power off when Do not disjoint or the equipment is disassemble the equipment. not fully installed. BISTOS Co., Ltd. does not Otherwise, the take responsibility of it. equipment could be damaged. P/N : 700-ENG-OPM-EUR-R02 Bistos Co.,Ltd.

  • Page 9: Definitions Of Symbols

    BT-700 Operator Manual Definitions and Symbols Symbol Description Requirements Power On/Off Button IEC TR 60878 This symbol identifies a safety note. Ensure you understand the function of this control before IEC 60601-1 using it. Control function is described in the operator’s manual.

  • Page 10: Introcution

    Introduction Brief Device & Intended purpose The BT-700 is a Patient monitor. It measures the SpO2, pulse rate and temperature. It provides continuous and noninvasive information on two important physiological parameters: arterial blood oxygen saturation and pulse rate. This information is obtained through measurement of light intensity transmitted across the finger at two distinct wavelengths, in the red and near-infrared regions of spectrum.

  • Page 11: Options And Accessories

    - BT-700 and The SpO2 sensor are certificated with international standards. - The SpO2 sensor of BT-700 is type nellcor SpO2 sensor. - The extension cable of BT-700 is available in the BT-700 only. If you use a different cable, check the compatibility...

  • Page 12: Installation

    BT-700 Operator Manual Section Installation Description of the BT-700 Front Panel Fig. 3.1 BT-700 Front Panel ① Power On/Off Button ② AC: Green / Battery:Orange) Power Indicating LED ③ TFT-Color LCD ④ Mode Change Button ⑤ Trend Save Button ⑥...

  • Page 13: Description Of The Bt-700 Rear Panel

    SpO2 Sensor Holder Power On & Probe Connection When the user want to turn BT-700 on, power adaptor is connected with BT-700 below Figure 3.5 and power button is pressed for 2 seconds(refer to Fig. 3.1). Also SpO2 Sensor probe is connected below Figure 3.5 Fig.

  • Page 14: Bt-700 Operation

    BT-700 Operation Factory Setting When BT-700 is turned on with pressing the knob button, enters in a factory mode. In factory mode, configuration parameter is initialized. These parameters are unaffected when the monitor is powered down. A complete list of these parameters is...
  • Page 15 BT-700 Operator Manual Fig. 4.2 Main Monitoring Screen – Numeric Mode Fig. 4.3 Main Monitoring Screen – Spo2 Trend Mode Fig. 4.4 Main Monitoring Screen – Pulse rate Trend Mode P/N : 700-ENG-OPM-EUR-R02 Bistos Co.,Ltd. 2018,03...

  • Page 16: Parameter Frame

    BT-700 Operator Manual Fig. 4.5 Main Monitoring Screen – Temperature Mode When mode button [MODE] is pressed, select the “ ‘Graph Mode’  ‘Numeric Mode’  ‘SpO2 Trend Mode’  ‘Pulse rate Trend Mode’  ‘Temperature mode ’ “ item in sequence.

  • Page 17: Alarm Message & Time Frame

    Indicates that the measuring patient is Neonate. Indicates the battery charge status Battery Status Icon BT-700 Controls and Indicators There are seven buttons located on the front panel. The buttons are activated by pushing with the finger until an audible click is heard.

  • Page 18: Bt-700 Controls Knob

    Pressing the knob stores the new value temporarily. CAUTION: Pressing the knob when “Memory All Delete”, saved data is deleted. Menu Tree The Menu Tree of BT-700 is such as table 4.4 Level 1 Level 2 Level 3 Default setting...

  • Page 19: Data Saving

    BT-700 Operator Manual Data Saving BT-700 has a data saving function. It can save up to 72 hours (data interval : 1minute ). Saving parameters are the SpO2, the Pulse rate and the Temperature. 4.6.1 How to save data Press mode button [Trend] to start saving. When the function is stared, the save icon ] is activated and rotated.

  • Page 20: Operation

     Move all line cords and line-powered equipment at least 6 feet away from the BT-700. Check for extension cords running behind or under the bed and equipment in adjacent rooms. If the artifact pulse rate indication ceases, the monitor may be used normally.

  • Page 21: 5.3 Detail Procedure

    BT-700 Operator Manual Because oxyhemoglobin and deoxyhemoglobin differ in light absorption, the amount of red and infrared light absorbed by blood is related to hemoglobin oxygen saturation. To identify the oxygen saturation of arterial hemoglobin, the monitor uses the pulsatile nature of arterial flow. Data update period of SpO2 and Pulse rate is 1second.

  • Page 22: Alarms And Messages

    BT-700 Operator Manual Section Alarms and messages In this Section, contains descriptions for Alarms and message of BT-700 unit. 6.1 Alarms priority Priority Description High Priority Audible and visual alarms for detached the spo2 sensor at the patient’s finger. Sound is “ bee bee bee - bee bee”...

  • Page 23: Cleaning And Disinfection

    BT-700 Operator Manual Section Cleaning and Disinfection This chapter contains instructions for the care and cleaning of the BT-700 unit and its accessories. The BT-700 requires proper care and preventive maintenance. This ensures consistent operation and maintains the high level of performance necessary in monitoring procedures.
  • Page 24 BT-700 Operator Manual 3. Wipe sensors three (3) times with sterile water to remove soap residue. 4. Wipe the sensors with a sterile wipe soaked in Cidex™. Wipe all exterior surfaces of the transducer three (3) times. 5. Wipe the sensors three (3) times with sterile water to remove Cidex residue.

  • Page 25: Troubleshooting And Maintenance

    When you replace internal Ni-MH, contact to our technical support office. Maintenance BT-700 requires periodic calibration or adjustment. The recommended interval for performing hipot and leakage testing is once per year. If you need a Calibration or a adjustment, contact to our technical support office.

  • Page 26: Specification

    BT-700 Operator Manual Section Specifications BT-700 Monitor Specifications: Physical Characteristics Main body : 90 mm(H) x 250 mm(L) x 118 mm(D) Probe : 29.7mm(Ø) x 126.8mm(H) Weight - approx. 1.5 kg Safety Complies with EN60601-1, EN60601-1-2, EN60601-2-37, ISO9919 Class II Equipment, Internally Powered Equipment...
  • Page 27 BT-700 Operator Manual SpO2 and Pulse rate Monitoring Patient Adult , Neonate, Pediatric SpO2 and Pulse rate Measurement Range SpO2 range 1% ~ 100% Pulse Rate range 30 BPM ~ 250 BPM Perfusion Range 0.3% ~ 20% SpO2 and Pulse rate Accuracy and Motion Tolerance SpO2 Without motion –...
  • Page 28 Telephone: Sales Agency Manufacture BISTOS Co., Ltd. ※ Thank you for purchasing BT-700. ※ This product is manufactured and passed through strict quality control and inspection. ※ Compensation standard concerning repair, replacement, refund of the product complies with “Consumer’s protection law”...
  • Page 29 BT-700 Operator Manual Service Telephone and Fax. Numbers Telephone: +82 31 750 0340 Fax: +82 31 750 0344 BISTOS Co., Ltd 7th FL., A Bldg., Woolim Lions Valley 5-cha, 302, Galmachi-ro, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea www.bistos.co.kr bistos@bistos.co.kr Model Name: BT-700 Obelis s.a...
