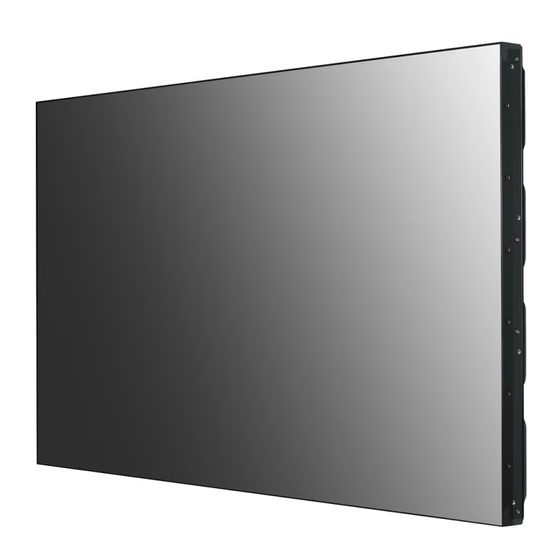

- Page 1 OWNER’S MANUAL LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 49VL5F 49VL7F www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..3 - Electrical Power Related Precautions ....3 - Precautions In Installing the Product .....5 - Precautions for Moving the Product ......6 - Precautions for Using/Cleaning the Product ..7 - Product Disposal (Only, Hg lamp used LCD Monitor) .................7 LICENSES ........8 ASSEMBLY AND... -
Page 3: Important Precautions
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. IMPORTANT PRECAUTIONS Please read these safety precautions carefully before using the product. WARNING Failure to follow those warnings may result in death, serious injury or damage to the product or other property. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged. - Page 4 • If you don’t intend to use the product for a long time, unplug the power cable from the product. - Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. • Insert the power plug firm so it cannot come loose.
-
Page 5: Precautions In Installing The Product
Do not add accessories that have not been designed for this display. • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur. -
Page 6: Precautions For Moving The Product
Precautions for Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •... -
Page 7: Precautions For Using/Cleaning The Product
Do not attempt to disassemble, repair or modify the product yourself. - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product. -
Page 8: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. -
Page 9: Assembly And Preparation
SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. • The warranty will not cover any damage caused by using the product in an excessively dusty environment. -
Page 10: Parts
Parts - The image may be different according to the model. Portrait Layout When installing in a portrait layout, rotate the monitor clockwise 90 degrees (when facing the screen). -
Page 11: Storage Method For Panel Protection
Storage Method for Panel Protection Correct Method If the product needs to be set upright, hold both sides of the product, and tilt backward carefully for. Do not let the panel to touch the floor. Panel When laying down the product, lay a cushion on a flat floor. Put the product on it with the panel of the product facing down. - Page 12 Incorrect Method If the product is tilted onto the bezel, the bottom of the panel may be damaged. Panel If the product is tilted toward the corner of the panel, the bottom of the panel may be damaged. Panel...
-
Page 13: Installing On A Wall
Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock. • If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall mount and contact your local dealer or qualified personnel to assist with the installation. - Page 14 Securing the monitor to a wall (optional) (Depending on model) Insert and tighten the eyebolts, or brackets and bolts on the back of the monitor. - If there are already bolts inserted in the eyebolts’ position, remove the other bolts first. Mount the wall brackets with the bolts to the wall.
-
Page 15: External Equipment Setup
External Equipment Setup IR Receiver This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via an RS-232C cable. -
Page 16: Tiling Displays
Tiling Displays How to Mount the Set Example of 2 x 2 Tiling Using the screws for attaching the VESA wall mount, mount the set to the wall mount plate or the wall. Screws for attaching the VESA wall mount (M6) (Unit: mm (inches)) 600 (23.6) - Page 17 How to Join Sets Join other sets using screws for fixing the VESA wall mount in the same way as above. Set 4 joined to the rest of the sets (2 x 2 tiling) After joining the sets, use the tiling guide to adjust the gap between the sets. (M4 x L8) 39 mm (1.5 inches)
- Page 18 NOTE • The load applied to each set should be supported by the wall mount plate or the wall using a VESA wall mount (600 x 400). • The load applied to each set should be supported by the wall mount plate using a VESA wall mount. (Each set must be firmly mounted to the wall mount plate or the wall.) •...
-
Page 19: Remote Control
REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the monitor correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse. - Page 20 Selects the Picture Mode. (HOME) Activates the Launcher. Enters the White Balance menu. (SETTINGS) Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input. (BACK) Allows you to move back one step in the user interaction function.
-
Page 21: Making Connections
MAKING CONNECTIONS You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a PC Some of the cables are not provided. -
Page 22: Using The Input List
NOTE • For the best image quality, using the monitor with HDMI connection is recommended. • To comply with the specifications of the product, use a shielded interface cable with ferrite core, such as a D-sub 15- pin cable and DVI-D/HDMI cable. •... -
Page 23: Daisy Chain Monitors
Daisy Chain Monitors To use multiple products, first connect an external device to the product, connect one end of the supported signal input cable to the connector of the product, and then connect the other end to the connector of the product you wish to connect to. -
Page 24: Troubleshooting
TROUBLESHOOTING No image is displayed. Problem Action Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Power is on, but the screen appears • Adjust brightness and contrast again. extremely dark. •... - Page 25 After-image appears on the product. Problem Action After-image appears when the product is • If you use a fixed image for a long time, the pixels may be damaged. turned off. Use the screen-saver function. • When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may cause image sticking.
- Page 26 CAUTION • Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood of image sticking occurring when using a fixed image.
-
Page 27: Product Specifications
PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). LCD screen Screen type Thin Film Transistor (TFT) Liquid Crystal Display (LCD) Screen Video signal Maximum resolution... - Page 28 49VL5F LCD screen Pixel pitch 0.55926 mm (H) x 0.55926 mm (V) Power Rated power AC 100-240 V ~ 50/60 Hz, 1.3 A Power consumption On Mode: 90 W (Typ.) Sleep Mode: ≤ 0.5 W Off Mode: ≤ 0.5 W Dimensions (Width x Height x Depth) / Weight 1,077.6 mm x 607.8 mm x 89.7 mm / 17.8 kg (42.4 inches x 23.9 inches x 3.5 inches / 39.2 lbs) 49VL7F...
- Page 29 HDMI / DVI-D / DisplayPort (PC) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1280 x 1024 63.981 60.02 1366 x 768 47.7 1680 x 1050 65.29 59.954 1920 x 1080 67.5 HDMI / DisplayPort (DTV) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz)
- Page 30 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 1000 Sylvan Ave Englewood Cliffs, NJ 07632 Telephone (201)266-2215 ENERGY STAR® is a set of power-saving guidelines issued by the U.S.Environmental Protection Agency (EPA). As an ENERGY STAR® Partner LGE U. S. A., Inc.
