SAFETY PRECAUTIONS For safe operation of the weighing indicator, please follow these instructions: ● Calibration inspection and maintenance of the indicator are prohibited by non-pro- fessional staff ● Please ensure that the indicator rests on a stable surface ● The indicator is a piece of static sensitive equipment; Please cut off power during electrical connections ●...
POWER SUPPLY AC Adapter The indicator is charged by an ac adapter, plug the adapter directly into the “DC” pin located at the back of the indicator. We recommend to plug into a wall outlet to avoid interference with other wirings. A 110 to 220V AC adapter should be provided with your indicator.

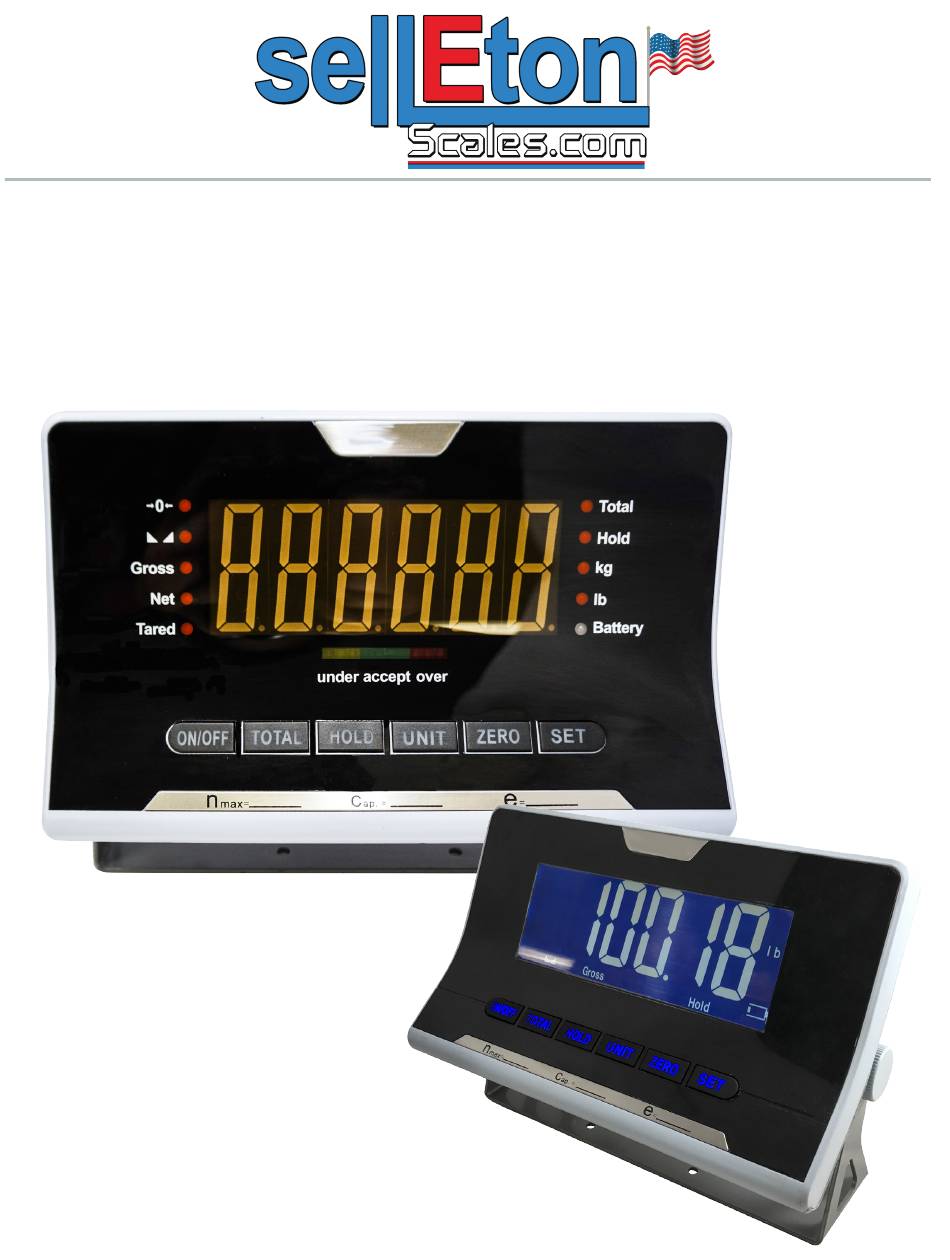

DISPLAY AND KEY DESCRIPTION ON/OFF Powers the Indicator On or Off if held for 2 seconds TOTAL Accumulates weights HOLD 1. Peak hold - Grabs the highest weight (for tension and pulling force) 2. Data hold - Holds the current weight value (ex. for use with weighing moving animals) UNIT Shifts between weighing units (kg/lb)
OPERATING INSTRUCTIONS Power On ● Turn on the power by pressing the power button for 2 seconds. Once on, the scale will flash the voltage and then begin to auto-check and count down from 0-9 sequentially before entering the weighing mode Note: Anything on the scale before powering on will automatically be tared out.
Page 10
Accumulation ● The accumulation function is used to add multiple weights and total them together ● In weighing mode load the first weight, once stable press the ACCUM key to enter the accumulation mode. The “total” light will display ● Remove weight and press ZERO key before adding the second weight to the scale ●...
Page 11
Hold In the parameter settings you can choose one of these 5 hold options 1. Peak Hold: Grabs the highest weight (for materials testing, ie. tension and pulling force) ● Press the HOLD key then add weight to the scale ●...
Page 12
CALIBRATION PROCEDURE Function Exit ON/OFF Confirm Move Up ZERO UNITS Move Down Move Left HOLD TOTAL Move Right Turn on the scale by holding ON/OFF for 2 seconds. Press ON/OFF and SET together to access the setup menu. If done correctly, the display should now show Press SET to access the C1 channel.
Page 13
CALIBRATION cont. 23. The C6 channel is used to calibrate the scale with a known weight. Press ZERO set the value of C6 to [ ]. Press SET . The display will flash , and SPAN then show [######]. 24. Enter the calibration weight value you will use (at least 10% of max capacity you set in C04 by using HOLD and TOTAL to move the cursor left and right, and ZERO...
INDICATOR PARAMETER SETTINGS The parameter settings menu has a calibration section (C01 to C06 explained above) and a parameter settings section (C07 and up). To access the calibration section the seal switch (located at one corner of the PCB) must be OFF.
Page 15
Table 2. Indicator Parameter Settings Function Parameter Settings/Options Restore Default 0 = do not restore Settings 1 = restore to default settings Warning Tone 0 = turn off warning tone 1 = turn on warning tone Power Off 0 = turn off auto power off Automatically 10 = power off automatically if no change within 10 minutes 30 = power off automatically if no change within 30 minutes...
Page 16
Function Parameter Settings/Options Initial Zero Range 0 = no initial zero setting 1 = ±1% max capacity 2 = ±2% max capacity 5 = ±5% max capacity 10 = ±10% max capacity 20 = ±20% max capacity Zero Tracking 0= turn off zero tracking 0.5 = ±0.5d d = division 1.0 = ±1.0d...
HELPFUL DEFINITIONS Division: The amount of increments a scale offers. How accurate the scale can be Capacity: the maximum amount the scale can contain Initial Zero Range: The percentage of weight allowed on the scale when indicator is powered on that will automatically zero. example: If initial zero range is set to 10% of the max.
CONNECTORS Connecting load cells to the indicator ● The indicator can connect with 4 pcs load cells of 350Ω at most ● 4 wire or 6 wire load cell connections are both okay ● Please contact us directly if you have other special needs for your application Quick Disconnect as shown below: QUICK DISCONNECT CONNECTION DIAGRAM DB9 SERIAL CONNECTOR PINOUT...
COMMUNICATION MODE Continuous sending mode for PC: the indicator continuously sends the data to the RS232 port Communication Format is done using ASCII as shown below: CR LF Data weight status, ST=standstill, US=not standstill, OL=overload weight mode, GS=gross mode, NT=net mode weight of positive and negative, “+”...
