Summary of Contents for TypeS BT530033
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..................................1 2. Package Contents ................................2 3. Product Specifications ..............................3 4. Before You Install ..................................4 5. Installation Guide ................................4 6. Settings and Operation ..............................9 7. Safety Information ................................14 8. Maintenance & Warranty ..............................17 9. General Information ................................ 20... -
Page 3: Introduction
Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. -
Page 6: Before You Install
4. BEFORE YOU INSTALL Please charge and test the Camera / Monitor before you install on your vehicle. 1. Fully charge camera. Fold back camera power port plug and insert included charging cable. Most AC wall adapters will work with the USB charging cable. 2. - Page 7 DASH MONITOR INSTALLATION - WINDSHIELD MOUNT 1. Place the Windshield Mount on the windshield and push the knob counter clockwise to lock in place. 2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position. 3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface of the dashboard in order to reduce vibration rattling.
- Page 8 WIRELESS BACKUP CAMERA INSTALLATION A) STANDARD INSTALLATION: 1. Unscrew your license plate. 2. Secure the Wireless Backup Camera and license plate with screws back onto the rear of your vehicle. Blue LED light 3. Push and hold the power button of 4.
- Page 9 B) LOWERING INSTALLATION – FOR VEHICLES WITH TRUNK OR HATCH DOOR RELEASE (This allows more clearance for finger tips to release door latch) 3. Install the license plate onto the Wireless 1. Unscrew and remove your license plate. Backup Camera with the Mounting Screws & Nuts.
- Page 12 PAIRING The Wireless Backup Camera is pre-paired with the Monitor, and it is set as rear camera as default. You should see the following screen that shows the rear view if the Dash Monitor is powered and the Wireless Backup Camera is fully charged. If you can not see camera image showing on Dash Monitor, pair the Camera with the following steps: Blue LED light Press and hold the Power Button under the...
- Page 13 The camera should be paired within 30 seconds. If the pairing is successful, the display will show “Pair OK”. If no camera is found, then the display will show “Pair Fail”. In this case, cut off power and reboot the Dash Monitor. If you keep receiving the “Pair Fail”...
- Page 14 CONTRAST Swipe to adjust screen contrast OPERATION TIME Tap to choose different operation time. The Dash Monitor’s parking view operation time will start to count down when you wake up the Wireless Backup Camera. When the timer runs out, the parking view will automatically switch to stand-by mode.
- Page 15 ADJUST CAMERA VIEW Swipe up and down to adjust view. NOTE: You cannot adjust the parking aid line and camera view in the split screen mode. BACKUP CAMERA POWER, MODES & LED INDICATORS Power / Mode Status LED Indicators Power On Blue LED light flashes 2 times when Camera is powered on.
-
Page 16: Safety Information
IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of car charger for Model BT530033. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. - Page 17 is different from actual conditions. Objects viewed in the Dash Monitor differ from actual distance because a wide-angle lens is used. Objects in the Dash Monitor will appear visually opposite than when viewed in the rear view and outside mirrors. Use the inside mirror or glance over your shoulder to properly judge distances to other objects.
- Page 18 modify it. This may cause incorrect operation. Wireless Backup Camera is waterproof. • Do not submerge Wireless Backup Camera in water, which can cause internal damage to the Camera. • If the temperature changes rapidly, such as when hot water is poured on the vehicle in cold weather, the system may not operate normally.
-
Page 19: Maintenance & Warranty
• Teach children to move away from a vehicle whenever it is started. 8. MAINTENANCE & WARRANTY CLEANING • If dirt, rain or snow attaches to the Camera, the Monitor may not clearly display objects. If water droplets, snow or mud adhere to the Camera lens, rinse with water and wipe with a dry cloth. •... - Page 20 2. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale. 3. The equipment must not have been altered or damaged through negligence, accident, improper operation, or failure to follow the product instructions for installation, use, or care.
- Page 21 WITHOUT LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TYPE S and/or its affiliates do not guarantee or promise that the user of Wireless Backup Camera will not be in an accident or otherwise not collide with an object and/or person. Our Wireless Backup Camera is not intended in any way to be a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations.
-
Page 22: General Information
9. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC / IC Compliance Statement: This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). - Page 23 To maintain compliance with FCC/IC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. CAN ICES-3 (B)/NMB-3(B) Wireless Backup Camera With Extended Battery Life BT530033 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626...
- Page 24 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2020 TYPE S. All rights reserved. www.typesauto.com ML-530033_V1...
Need help?
Do you have a question about the BT530033 and is the answer not in the manual?
Questions and answers

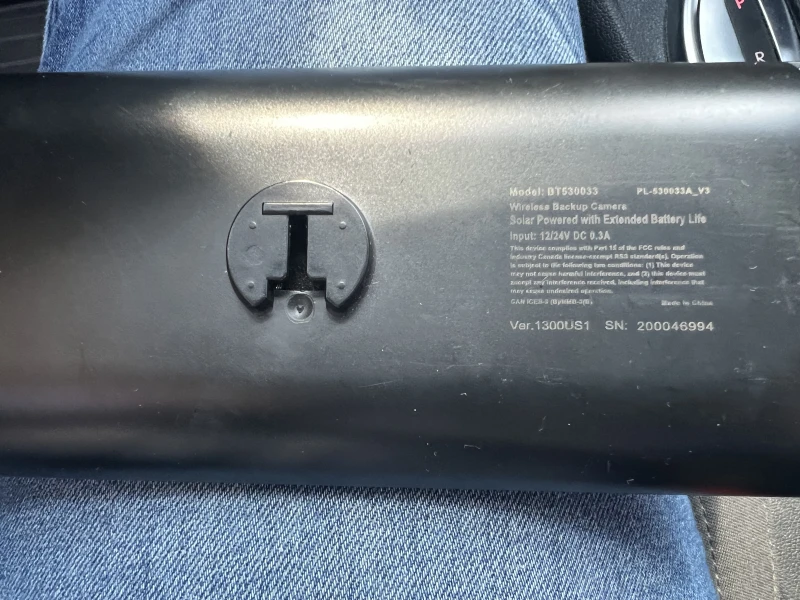

Windshield mount for BT530033
