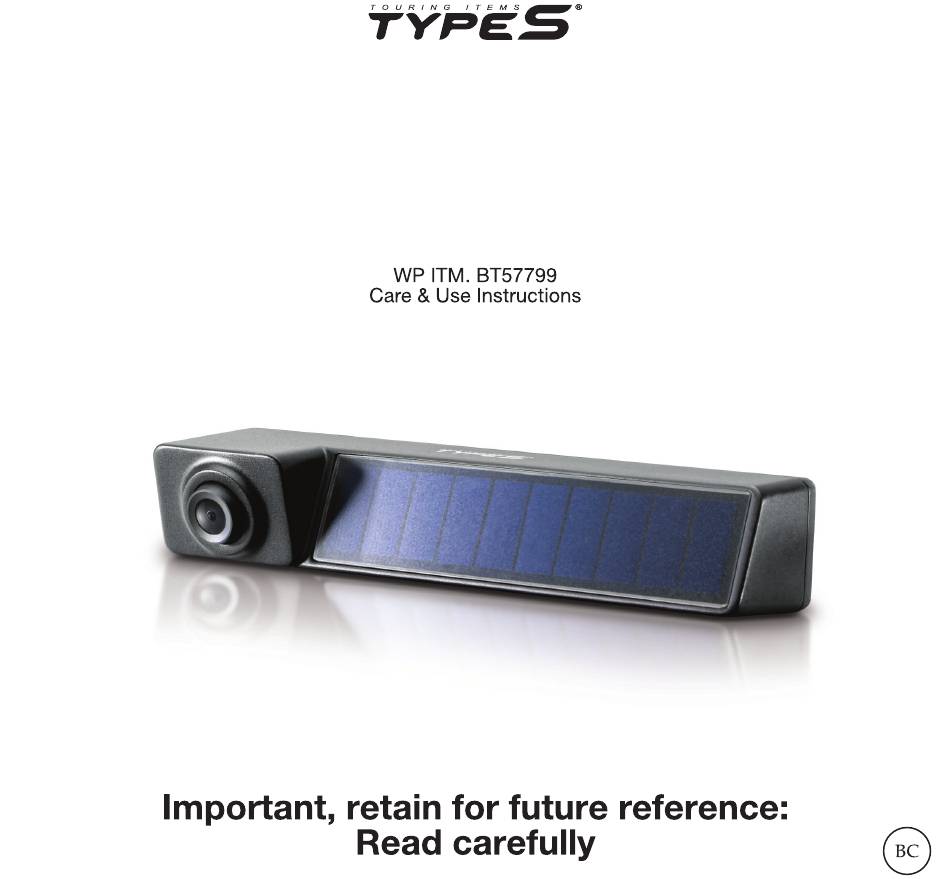

TypeS BT57799 Care & Use Instructions

1080p solar powered app view backup camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

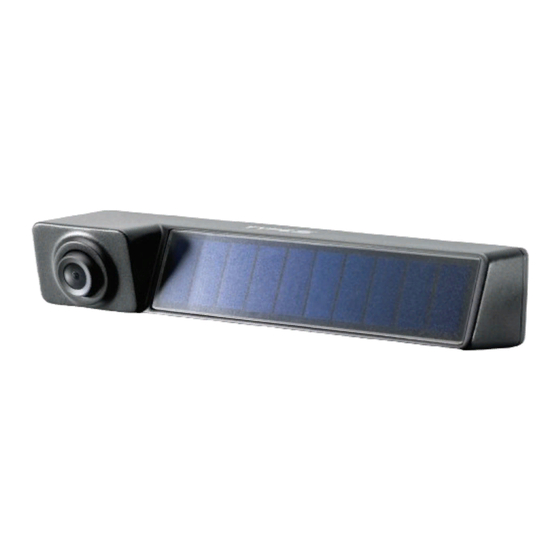

1080P Solar Powered App View Backup Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT57799 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TypeS BT57799

Summary of Contents for TypeS BT57799

  • Page 1 1080P Solar Powered App View Backup Camera...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..................................1 2. Package Contents ................................2 3. Product Specifications ..............................3 4. Product Overview ................................3 5. Camera Status & LED Indicators............................4 6. Before You Install ..................................4 7. APP Installation ..................................5 8. Pairing the camera ................................6 9. Installation Guide ................................8 10.

  • Page 3: Introduction

    Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system.

  • Page 5: Product Specifications

    3. PRODUCT SPECIFICATIONS Frequency: 2.4 GHz Operating Voltage: DC 5V Operating Temperature: 14ºF~122ºF (-10ºC~50ºC) Camera Water Resistance: IP67 Rating Battery Capacity: 2500mAh (Minimum Capacity 2400mAh) Maximum Signal Range: 33 Feet / 10 Meters (without interference or obstruction) 4. PRODUCT OVERVIEW Camera Lens Solar Panel Power Button...

  • Page 6: Camera Status & Led Indicators

    5. CAMERA STATUS & LED INDICATORS Power / Mode Status LED Indicators Power On Blue LED light flashes twice. Press and hold the power button until you see the blue LED light flashes and then release. Power Off Red LED light flashes once. Press and hold the power button for more than 2 seconds and then release.
  • Page 9 5. Tap Pair Camera. 6. Tap the Connect icon to pair with the camera. 7. Follow the on-screen instructions and assign a new password for the camera. 8. Tap Join when the APP prompts you to join the Backup Camera’s WiFi network. 9.
  • Page 11 OPTION B - MOUNT ONTO EXISTING LICENSE PLATE WITH DOUBLE-SIDED TAPE 1. Attach the International Mounting Plate to the back of the Wireless Backup Camera. 2. Secure with screws provided. 3. Unscrew and remove the license plate from your vehicle. 4.
  • Page 12 5. Secure the license plate with the attached Wireless Backup Camera to the vehicle.
  • Page 13 OPTION C - LOWERING INSTALLATION – FOR VEHICLES WITH TRUNK OR HATCH DOOR RELEASE (This allows more clearance for finger tips to release door latch) 1. Unscrew and remove the license plate 3. Secure the Two Way Mounting Tabs to the from your vehicle.

  • Page 14: Settings And Operation

    10. SETTINGS AND OPERATION ROTATE CAMERA Tap on the setting to reverse the camera view. BRIGHTNESS Swipe to adjust screen brightness. CHROMA Swipe to adjust screen chroma. CONTRAST Swipe to adjust screen contrast. SATURATION Swipe to adjust screen saturation. OPERATION TIME Tap to choose a different operation time.
  • Page 15 FIRMWARE VERSION Tap to check the Backup Camera’s firmware version. UPGRADE Tap to upgrade the Backup Camera’s firmware to the latest version through the APP: NOTE: - Keep your smart device connected to WiFi in order to download the firmware. - Make sure the APP is paired and connected to the camera prior the upgrade.

  • Page 16: Safety Information

    IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of Model BT57799. 2. Before using the product, read all instructions and cautionary markings. 3. Use of an attachment not recommended or sold by the product manufacturer may result in a risk of fire, electric shock, or injury to persons.
  • Page 17 may change. • When washing the vehicle with high pressure water, be sure not to spray it around the Wireless Backup Camera. Otherwise, water may enter the Camera unit causing water condensation on the lens, a malfunction, fire or an electric shock. •...
  • Page 18 • Will work up to 33 feet. • ALWAYS engage Parking/Emergency/Hand Brakes of the vehicle when testing the system. SAFETY AROUND AND BEHIND OTHER VEHICLES Using a Wireless Backup Camera is not enough to completely overcome a vehicle’s blind spot. Many preventable injuries and deaths occur in driveways or parking lots when drivers do not see children, pets, or others near their vehicles.

  • Page 19: Maintenance & Warranty

    12. MAINTENANCE & WARRANTY CLEANING • If dirt, rain or snow attaches to the Camera, the APP screen may not clearly display objects. If water droplets, snow or mud adhere to the Camera lens, rinse with water and wipe with a dry cloth.
  • Page 20 5. Repair or replacement parts supplied by TYPE S under this warranty are protected only for the unexpired portion of the original warranty. 6. This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any mobile phone device or vehicle.
  • Page 21 the consistent adherence to all applicable traffic laws and motor vehicle safety regulations. The Wireless Backup Camera is not intended to be a substitute for rearview mirrors or for any other motor vehicle equipment mandated by law. Even when properly installed, our Wireless Backup Camera has a limited field of vision and does not provide a comprehensive view of the rear area of the vehicle.

  • Page 22: General Information

    13. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
  • Page 23 été évalué à répondre général rf exposition exigence.pour maintenir la conformité avec les directives d'exposition du RSS-102-Radio Fréquence (RF). ce matériel doit être installé et exploité à une distance minimale de 20 cm entre le radiateur et votre corps. Contains Transmitter Module FCC ID: WUI-BT57799 Contains Transmitter Module IC: 7297A-BT57799...
  • Page 24 1080P Solar Powered App View Backup Camera BT57799 Responsible Party: TYPE S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 Tel: 866-294-9244 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2020 TYPE S. All rights reserved.
