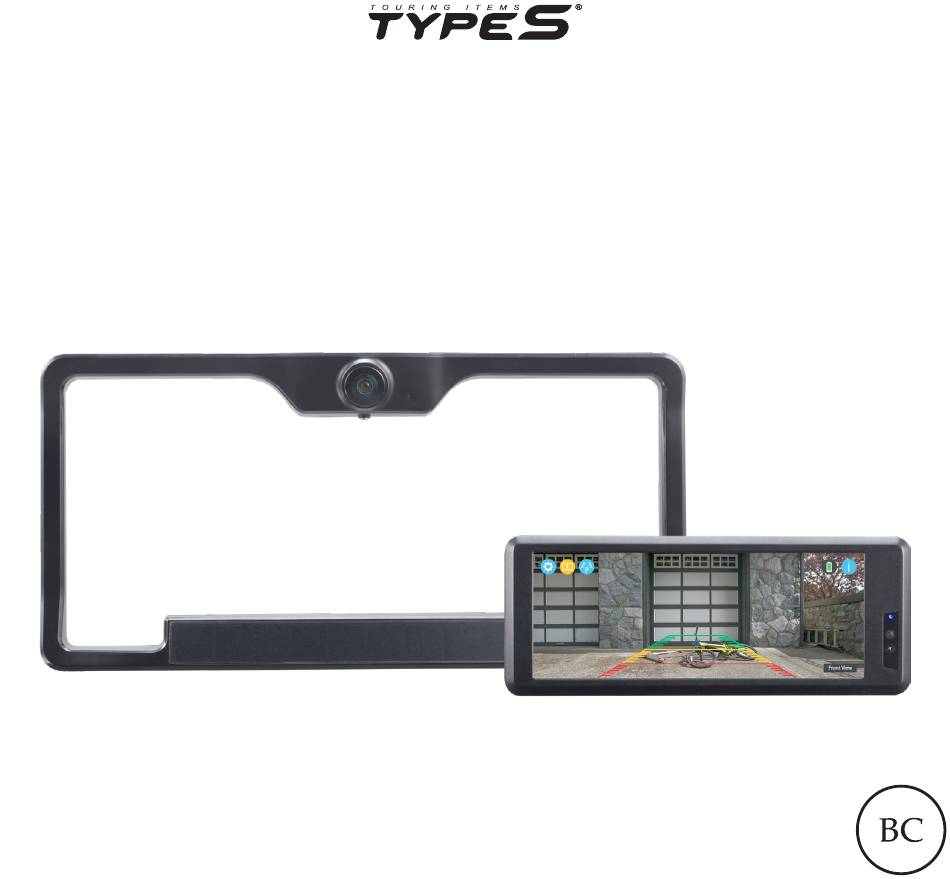

- Page 1 WIRELESS BACKUP CAMERA Solar Powered With 6.8” Widescreen HD Monitor ITM. / ART. 1344584 WP ITM. BT57132 Care & Use Instructions Important, retain for future reference: Read carefully...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ....................................1 2. Package Contents ...................................2 3. Product Specifications ................................3 4. Before You Install ..................................4 5. Installation Guide ..................................4 6. Settings and Operation ................................9 7. Safety Information ................................14 8. Maintenance & Warranty ..............................17 9. General Information ................................20... -
Page 3: Introduction
Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. The installation instructions do not apply to all types of vehicles, and are written as guidelines to assist in installing the system. -
Page 4: Package Contents
13. Warranty Card Product code / Code de produit / C—digo del producto : BT57132 Register this product within 30 days of purchase to receive 1 FREE YEAR of additional warranty coverage (beyond the standard one year warranty), along with special product offers and announcements. -
Page 5: Product Specifications
3. PRODUCT SPECIFICATIONS Frequency: 2.4GHz Operating Voltage: Monitor - DC 12V/24V, Backup Camera - DC 5V Operating Temperature: 14ºF~122ºF (-10ºC~50ºC) Camera Water Resistance: IP65 Rating Battery Capacity: 3350mAh Maximum Signal Range: 33 feet/10 meters (without interference or obstruction) Power Button Solar Wireless Backup Camera MicroUSB input... -
Page 6: Before You Install
4. BEFORE YOU INSTALL Please charge and test the Camera / Monitor before you install on your vehicle. 1. Fully charge camera. Fold back camera power port plug and insert included charging cable. Most AC wall adapters will work with the USB charging cable. 2. - Page 7 DASH MONITOR INSTALLATION - WINDSHIELD MOUNT 1. Place the Windshield Mount on the windshield and push the knob counter clockwise to lock in place. 2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position. 3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface of the dashboard in order to reduce vibration rattling.
- Page 8 SOLAR WIRELESS BACKUP CAMERA INSTALLATION A) STANDARD INSTALLATION: 1. Unscrew your license plate. 2. Secure the Solar Wireless Backup Camera and license plate with screws back onto the rear of your vehicle. Blue LED light 3. Push and hold the power button of 4.
- Page 9 B) LOWERING INSTALLATION – FOR VEHICLES WITH TRUNK OR HATCH DOOR RELEASE (This allows more clearance for finger tips to release door latch) 3. Install the license plate onto the Solar Wireless 1. Unscrew and remove your license plate. Backup Camera with the Mounting Screws & Nuts.
- Page 10 C) RAISED INSTALLATION – FOR TRUCKS & SUV WITH STEP BUMPERS (This will raise the camera frame out of the cavity of the step bumper) 1. Unscrew and remove your license plate. 2. Install the Two Way Mounting Tabs using original Plates Screws and Mounting Screws.
-
Page 11: Settings And Operation
Split Screen icon to switch between different screen modes after you pair the extra camera with the Dash Monitor. NOTE: Other than BT57132 and BT56780, DO NOT pair this monitor with other Type S backup cameras. BATTERY INDICATOR The battery indicator shows the battery level of the Solar Wireless Backup Camera. - Page 12 PAIRING The Solar Wireless Backup Camera is pre-paired with the Monitor, and it is set as rear camera as default. You should see the following screen that shows the rear view if the Dash Monitor is powered and the Solar Wireless Backup Camera is fully charged. If you can not see camera image showing on Dash Monitor, pair the Camera with the following steps: Blue LED light Press and hold the Power Button under the...
- Page 13 The camera should be paired within 30 seconds. If the pairing is successful, the display will show “Pair OK”. If no camera is found, then the display will show “Pair Fail”. In this case, cut off power and reboot the Dash Monitor. If you keep receiving the “Pair Fail”...
- Page 14 CONTRAST Swipe to adjust screen contrast OPERATION TIME Tap to choose different operation time. The Dash Monitor’s parking view operation time will start to count down when you wake up the Solar Wireless Backup Camera. When the timer runs out, the parking view will automatically switch to stand-by mode.
- Page 15 ADJUST CAMERA VIEW Swipe up and down to adjust view. NOTE: You cannot adjust the parking aid line and camera view in the split screen mode. BACKUP CAMERA POWER, MODES & LED INDICATORS Power / Mode Status LED Indicators Power On Blue LED light flashes 2 times when Camera is powered on.
-
Page 16: Safety Information
IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS– This manual contains important safety and operating instructions of 12V Car charger for Model BT57132. 2. Before using the product, read all instructions and cautionary markings. 3. Do not expose car charger to rain, moisture, or snow. - Page 17 • Never depend on the Solar Wireless Backup Camera entirely when backing up. The image on the screen is different from actual conditions. Objects viewed in the Dash Monitor differ from actual distance because a wide-angle lens is used. Objects in the Dash Monitor will appear visually opposite than when viewed in the rear view and outside mirrors.
- Page 18 • The Solar Wireless Backup Camera has a water resistant construction. Do not detach, disassemble or modify it. This may cause incorrect operation. Solar Wireless Backup Camera is waterproof. • Do not submerge Solar Wireless Backup Camera in water, which can cause internal damage to the Camera.
-
Page 19: Maintenance & Warranty
• Roll down your window so you will be able to hear what is happening outside your vehicle. • Owners of SUVs, trucks, and vans need to take extra care to avoid hitting or running over a child. • Teach children to move away from a vehicle whenever it is started. 8. - Page 20 1. All repairs must be performed by Type S. 2. All warranty claims must be accompanied by a copy of the sales receipt or bill of sale. 3. The equipment must not have been altered or damaged through negligence, accident, improper operation, or failure to follow the product instructions for installation, use, or care.
- Page 21 WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIES, IS MADE AS TO THE SOLAR WIRELESS BACKUP CAMERA. EXCEPT AS EXPRESSLY SET FORTH HEREIN, TYPE S AND/OR ITS AFFILIATES EXPRESSLY DISCLAIMS, WITHOUT LIMITATION, ANY STATUTORY WARRANTIES AND ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
-
Page 22: General Information
9. GENERAL INFORMATION CUSTOMER SERVICE/CONTACT IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT TYPE S DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. FCC / IC Compliance Statement: This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). - Page 23 20cm between the radiator and your body. CAN ICES-3 (B)/NMB-3(B) Wireless Backup Camera Solar Powered With 6.8” Widescreen HD Monitor BT57132 Responsible Party: Type S 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626...
- Page 24 A Horizon Brands Company 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 1.866.294.9244 | info@typesauto.com ©2019 Type S. All rights reserved. www.typesauto.com ML-57132_V1...
Need help?
Do you have a question about the BT57132 and is the answer not in the manual?
Questions and answers
CHARGING CAMERA
To charge the Type S BT57132 camera, you need a compatible 12V power adapter or a car charger adapter designed specifically for this model. Ensure the adapter is compatible with the BT57132 model as listed in the product description. Follow the user manual for proper installation and usage.
This answer is automatically generated
My display is not turning on
The display for the TypeS BT57132 is not turning on because the battery of the Solar Wireless Backup Camera is lower than the working voltage. You need to fully charge the camera.
This answer is automatically generated
How to switch cameras on type s with no split screen

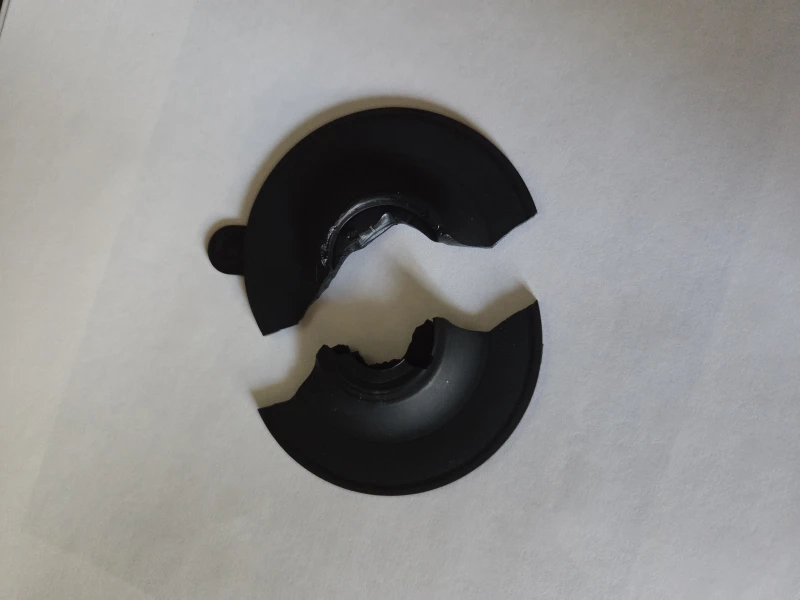

The windshield mount (rubber disk), broke off the windshield. Where can I purchase a replacement?
