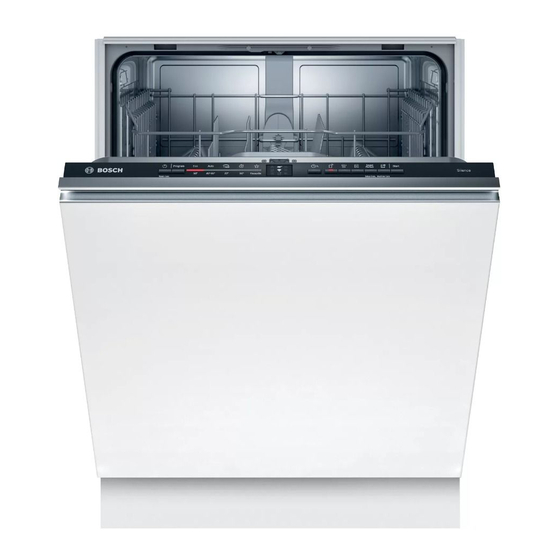

- Page 1 Dishwasher SMV2ITX22E [en] User manual...
-
Page 2: Table Of Contents
Table of contents Safety .......... 4 Folding prongs ....... 22 General information...... 4 Basket heights........ 23 Intended use........ 4 Before using for the first time .. 23 Restriction on user group.... 4 Performing the initial configura- Safe installation ........ 5 tion.......... 23 Safe use ........... 6 Damaged appliance ...... 8 Water softening system.... - Page 3 Customer Service...... 54 Terminate programme.... 33 Product number (E-Nr.), produc- Switching off appliance .... 33 tion number (FD) and consecut- Basic settings........ 34 ive numbering (Z-Nr.) ..... 55 Overview of basic settings ..... 34 AQUA-STOP guarantee .... 55 Home Connect ...... 36 Technical specifications.... 56 Home Connect quick start ..... 36 Information regarding Free and Open Source Software .... 56...
-
Page 4: Safety
en Safety Safety Please read the safety information to ensure that you use the ap- pliance safely. General information You can find general information for this instruction manual here. ¡ Read this instruction manual carefully. Only this will ensure you use the appliance safely and efficiently. ¡... -
Page 5: Safe Installation
Safety en Keep children under the age of 8 years away from the appliance and power cable. Safe installation Follow these safety instructions when installing the appliance. WARNING ‒ Risk of injury! Improper installation may cause injury. ▶ When installing and connecting the appliance, follow the in- structions in the manual and installation instructions. -
Page 6: Safe Use
en Safety WARNING ‒ Risk of fire! It is dangerous to use an extended power cord and non-ap- proved adapters. ▶ Do not use extension cables or multiple socket strips. ▶ If the power cord is too short, contact Customer Service. ▶ Only use adapters approved by the manufacturer. WARNING ‒ Risk of injury! Hinges move when opening and closing the appliance door and can cause injury. - Page 7 Safety en ¡ Highly caustic alkaline or highly acidic cleaning agents in con- junction with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in conjunction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety ¡ If the insulation of the power cord is damaged, this is danger- ous. ▶ Never let the power cord come into contact with hot appli- ance parts or heat sources. ▶ Never let the power cord come into contact with sharp points or edges. -
Page 9: Risk To Children
Safety en Risk to children Follow the safety instructions if there are children in your home. WARNING ‒ Risk of suffocation! ¡ Children may put packaging material over their heads or wrap themselves up in it and suffocate. ▶ Keep packaging material away from children. ▶... - Page 10 en Safety WARNING ‒ Risk of injury! Children may get their fingers caught in the slots of the tablet collecting tray and injure themselves. ▶ Keep children away from the appliance when open. WARNING ‒ Risk of suffocation! Children may become trapped in the appliance and suffocate. ▶...
-
Page 11: Preventing Material Damage
Preventing material damage en ¡ Modified or damaged water hoses Preventing material damage Preventing material dam- may result in material damage and damage to the appliance. Never kink, crush, modify or cut ▶ through water hoses. Follow these instructions to prevent Preventing material damage Only use the water hoses sup- material damage to your appliance,... -
Page 12: Environmental Protection And Saving Energy
en Environmental protection and saving energy ¡ Unsuitable cleaning agents may Saving energy damage the appliance. If you follow these instructions, your Do not use a steam cleaner. ▶ appliance will use less electricity and So as not to scratch the finish ▶... -
Page 13: Installation And Connection
Installation and connection en installing it under a continuous work- Installation and connection Installation and connec- top that is securely connected to ad- jacent cabinets. tion "Follow the safety instructions." To ensure proper operation, connect Installation and connection → Page 4 the appliance to the power and water "Follow the instructions for elec- supply correctly. -
Page 14: Drinking Water Connection
en Installation and connection Check that the mains plug is inser- Drinking water connection ted properly. Connect your appliance to a drinking water connection. Installing the drinking water connection Note: If you are replacing the appli- ance, you must use a new water sup- ply hose. -
Page 15: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance Familiarising yourself with your appliance Familiarise yourself with the parts of your appliance. Familiarising yourself with your appliance Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with "E number and FD number"... -
Page 16: Controls
en Familiarising yourself with your appliance "Detergent" → Page 27 is added to the detergent Detergent dispenser dispenser. "Bottom basket" → Page 21 Bottom basket Dispenser for special salt Add the special salt to the dispenser for special salt. → "Water softening system", Page 23 Lower spray arm The lower spray arm washes the tableware in the bot- tom basket. - Page 17 Familiarising yourself with your appliance en 4 5 6 7 "Switching on the appliance" → Page 31 ON/OFF button and reset button "Switching off the appliance" → Page 33 "Terminating the programme" → Page 33 "Programmes" → Page 18 Programme button "Programmes" → Page 18 Programmes Water supply display Display for water supply Programme sequence display The programme sequence display shows the cur- rent cycle of the appliance, e.g.
-
Page 18: Programmes
en Programmes Programmes Programmes You can find an overview of the pro- ted. The running time will change if Programmes grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending... -
Page 19: Information For Test Institutes
Additional functions en Programme Programme sequence Additional func- tions Tableware: Time-optimised: ExtraDry → "Additional ¡ Cleaning mixed table- ¡ Cleaning 65 °C Express 65° - 1h ware and cutlery. functions", ¡ Intermediate rinse Level of soiling: Page 19 ¡ Final rinse 69 °C ¡ Removing common ¡... -
Page 20: Features
en Features Top basket Additional func- tion Arrange cups and glasses in the top ¡ Switch on with small basket. loads. Half Load ¡ It is recommended adding less detergent to the detergent dis- penser than for a full machine load. ¡... -
Page 21: Bottom Basket
Features en Check that the basket is level on both sides. Cutlery basket Slide the basket back in. Arrange cutlery in the cutlery basket, always without sorting it and with the Bottom basket sharp points downwards. Arrange pans and plates in the bot- tom basket. -
Page 22: Etagere
en Features Push the lever forwards and fold Etagere down the prongs . Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. To use the prongs again, fold them back up. -
Page 23: Basket Heights
Before using for the first time en Basket heights Set the baskets at the right height. Appliance height 81.5 cm with cutlery basket Setting Top basket Bottom basket 1 max. ø 22 cm 31 cm 2 max. ø 24.5 cm 27.5 cm 3 max. -
Page 24: Overview Of Water Hardness Set- Tings
en Water softening system Water hard- Hardness mmol/l Setting "LED A" "LED B" "LED C" ness value range → Page 16 → Page 16 → Page 16 °E 0 - 8 Soft 0 - 1.1 9 - 20 Medium 1.2 - 2.9 21 - 26 Hard 3.0 - 3.7 27 - 44 Hard 3.8 - 6.2... -
Page 25: Switching Off The Water Softening System
Water softening system en Do not use table salt. ¡ The water hardness is 0 - 8 °E. You do not need to use special Add the special salt to the dis- salt. penser. Press . To open the appliance settings, press for 3 seconds. -
Page 26: Rinse Aid System
en Rinse aid system Additional water consumption in litres Additional power consumption in 0.05 The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard and using the Eco 50° programme and the factory value of the water hardness is set to 9 - 20°E. -
Page 27: Switching The Rinse Aid System Off
Detergent en To save the settings, press Modern, powerful detergents mainly for 3 seconds. use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygen- Switching the rinse aid sys- based bleaching agents are generally tem off used to remove coloured marks, e.g. tea or ketchup. -
Page 28: Unsuitable Detergents
en Detergent Tip: Suitable detergents are available Unsuitable detergents online via our website or from "Cus- Do not use detergent which could tomer Service" → Page 54. cause damage to the appliance or Separate detergents present a risk to health. Separate detergents are products Detergent Description that do not contain components other... -
Page 29: Adding Detergent
Tableware en ¡ The function of rinse aid is limited with combined detergents. You will generally get better results using rinse aid. ¡ Use tablets with a special drying performance. Adding detergent To open the detergent dispenser, press the locking latch. Add the detergent to the dry deter- a The lid clicks into position. -
Page 30: Damage To Glass And Tableware
en Tableware Damage to glass and table- Cause Recommendation ware The water temperat- Select a programme ure of the programme with lower temperat- Avoid damage to glass and table- is too high. ures. ware. After the programme has ended, take glass- Cause Recommendation ware and cutlery out... -
Page 31: Removing Tableware
Basic operation en To save resources, do not pre- Removing tableware rinse tableware under running wa- ter. WARNING Observe the following when arran- Risk of injury! ging tableware: Hot tableware can cause burns to the – Put heavily soiled tableware in skin. -
Page 32: Setting A Programme
en Basic operation If you do not perform any actions Starting the programme on the appliance for 10 minutes, Press the appliance will automatically ▶ a The programme has ended when switch off. no indicators on the controls light Setting a programme Notes To adjust the wash cycle to the soil- ¡... -
Page 33: Terminate Programme
Basic operation en Terminate programme To end a programme early or to switch from a programme that has already started, you will need to can- cel it first. Open the appliance door. Press for approx. 4 seconds. Close the appliance door. a All displays light up. a As soon as the displays are off, the residual water is pumped out. -
Page 34: Basic Settings
en Basic settings Basic settings Basic settings You can configure the appliance to meet your needs. Basic settings Overview of basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. - Page 35 Basic settings en If "LED A" → Page 16 is not lit, the Setting Extra Dry wireless network connection is Press . switched off. To open the appliance settings, If "LED A" → Page 16 is lit, the press for 3 seconds. wireless network connection is flashes in the display.
-
Page 36: Home Connect
en Home Connect Home Connect Home Connect This appliance is network-capable. Home Connect Connect your appliance to a mobile device to control its functions via the Home Connect app. Start the app and set up access The Home Connect services are not for Home Connect. available in every country. The avail- The Home Connect app guides ability of the Home Connect function you through the entire login pro-... -
Page 37: Remote Start
Home Connect en Home Connect has been set up and nect server and if Remote Dia- whether the appliance is connected gnostics is available in the country in to your home network. which you are using the appliance. Tip: For further information and de- Remote Start tails about the availability of Remote Diagnostics in your country, please... -
Page 38: Declaration Of Conformity
Declaration of Conformity additional documents on the product page for your appliance. Robert Bosch Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality 2.4 GHz band: 100 mW max. 5 GHz band: 100 mW max. -
Page 39: Machine Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 40: Filter System
en Cleaning and servicing Do not place any additional ma- chine cleaner in the appliance in- terior. Press . Press . a Machine Care is run. a Once the programme has ended, the indicator for Machine Care goes out. Filter system Pull down the micro filter to re- The filter system removes coarse... -
Page 41: Cleaning Spray Arms
Cleaning and servicing en Make sure that the locking catches Insert the lower spray arm. on the coarse filter click into posi- a The spray arm clicks into position. tion. Insert the upper spray arm and Insert the filter system into the ap- screw it firmly in place. -
Page 42: Troubleshooting
en Troubleshooting Troubleshooting Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... -
Page 43: Washing Results
Troubleshooting en Fault Cause troubleshooting Display for water supply Check the water connection for lights up leaks. Restore the power supply. Switch the appliance on. Wastewater hose is blocked Reposition the wastewater hose or kinked. without kinks. Remove residues. Siphon connection is still Check the connection to the siphon ▶... - Page 44 en Troubleshooting Fault Cause troubleshooting Tableware is not dry. Programme or programme "Select a programme with drying, ▶ option has no drying phase, e.g. intensive, strong or ECO pro- gramme." → Page 18 or the drying phase is too brief. Some option buttons decrease the drying result, e.g varioSpeed.
- Page 45 Troubleshooting en Fault Cause troubleshooting Appliance interior still wet Not a fault. The condensa- No action required. after wash cycle. tion drying principle causes water droplets in the tub – they are indeed desirable here. The moisture in the air condenses on the inside walls, runs off and is pumped out.
- Page 46 en Troubleshooting Fault Cause troubleshooting Detergent residue in the ap- Lid of the detergent dis- Arrange tableware in the top basket pliance penser is blocked by items tableware so the tab collecting tray of tableware parts and will is not obstructed by tableware. → "Arrange tableware", Page 30 not open.
- Page 47 Troubleshooting en Fault Cause troubleshooting Stubborn white coatings are Detergent substances are Change your "detergent" ▶ → Page 27. present on tableware, inside deposited there. These coat- the appliance or the door. ings cannot generally be re- Clean the appliance mechanically. ▶ moved with chemicals. The hardness range is set in- Set the Water softening system to ▶...
- Page 48 en Troubleshooting Fault Cause troubleshooting Coloured coatings (blue, yel- may not always be possible to com- low, brown) that are difficult pletely remove deposits but they or impossible to remove are are harmless to health. present inside the appliance or on stainless steel table- ware.
- Page 49 Troubleshooting en Fault Cause troubleshooting Removable streaks are Tableware has been pre- Only remove large remnants of food ▶ present on glasses, glass- cleaned too intensely. The and do not prerinse tableware. ware with a metallic appear- sensors chose a weaker pro- ance and cutlery.
-
Page 50: Home Connect Problem
en Troubleshooting Fault Cause troubleshooting Excessive formation of foam Detergent or appliance care Change the brand of detergent. ▶ occurs. product used causes excess- ive foaming. Home Connect problem Fault Cause troubleshooting Connection to home net- WLAN on router is not act- Check the wireless network con- ▶... -
Page 51: Mechanical Damage
Troubleshooting en Fault Cause troubleshooting → "Terminate programme", Water is left in the appliance ▶ at the end of the pro- Page 33 gramme. Appliance cannot be Software update is taking Wait until the software update has ▶ switched on or operated. place. finished. -
Page 52: Noise
en Troubleshooting Fault Cause troubleshooting Appliance door cannot be When closed, the appliance door, closed. its decor or attached parts should not knock against adjacent cabin- ets or the worktop. Lid on the detergent dis- Detergent dispenser or lid Remove detergent residue. ▶... -
Page 53: Clean Wastewater Pump
Transportation, storage and disposal en Clean wastewater pump Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. WARNING Risk of injury! Sharp and pointed objects or frag- ments of glass may block the waste a The pump cover clicks into posi-... -
Page 54: Protect Appliance From Frost
en Customer Service Protect appliance from frost Disposing of old appliance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 55: Product Number (E-Nr.), Produc- Tion Number (Fd) And Consecut- Ive Numbering (Z-Nr.)
Customer Service en We will always find an appropriate Product number (E-Nr.), pro- solution and try to avoid unnecessary duction number (FD) and con- visits being made by a Customer Ser- secutive numbering (Z-Nr.) vice technician. With any warranty claims, we will You can find the product number (E- make sure that your appliance is re- Nr.), the production number (FD) and... -
Page 56: Technical Specifications
en Technical specifications needs to be turned off if you are Capacity 12 place settings away from home for a long period, More information about your model e.g. on holiday for several weeks. can be found online at https://en- ergylabel.bsh-group.com . This web address is linked to the official EU Technical specifications Technical specifications... - Page 57 Technical specifications en Reference "OSSREQUEST" The cost of performing your request will be charged to you. This offer is valid three years from the date of pur- chase or at least as long as we offer support and spare parts for the re- spective appliance.
