Summary of Contents for HTW P16

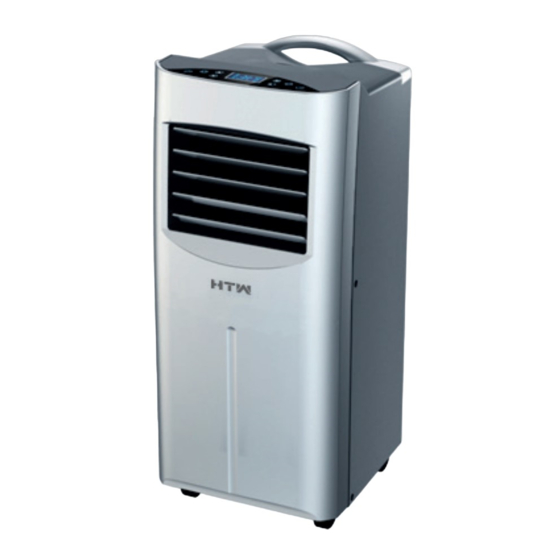

- Page 1 OWNER’S MANUAL PORTABLE HTW-PC-026P16 | HTW-PCS-026P16 Thanks for choossing our product. Please, read carefully this manual before using the product...
-
Page 2: Table Of Contents
Thank you for choosing super quality air conditioner. Please be sure to read this user’s manual carefully before using the machine. Any problem, please contact the professional service for help. CONTENTS IMPORTANT SAFEGUARDS…................3 PLACEMENT AND INSTALLATION…...............4 PARTS NAME….......................6 CONTROL PANEL…....................7 REMOTE CONTROL…..................8 OPERATION METHODS…..................9 WATER DRAINAGE…..................10... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read following safeguards carefully before using the machine: ·This machine just for domestic use, please don’t use it in any other places. ·Please use this machine indoor not outdoor, and place it in a dry environment. ·Don’t use the machine when any damage in power cord, plug or machine itself. Any damage, please contact professional serviceman for help. -
Page 4: Placement And Installation
Note: ·Place the machine on flat ground, and keep it far from around things at least 50cm. ·Make sure the socket can be reached from machine location. ·Keep the machine stand upright so that compressor can work well. ·Don’t run the machine near to gasoline or any other flammable liquids. ·Make sure free access of air-inlet and air-outlet. - Page 5 Installation ·Spin slide bar connector into exhaust hose first, then spin the exhaust hose into exhaust connector (counter-clockwise) . ·Put slide bar connector into adjustable slide bar, adjust window open width in order slide bar match window well, and the length of slide bar is adjustable. (fig.2) (fig.2) Installation Errors ·Free access of exhaust pipe is important, installation errors will bring bad influence of...
-
Page 6: Parts Name
Parts Name Front side(fig.5) 1. Handle 2. Control Panel 3. Air-outlet 4. Fan blade 5. Castor fig.5 Back Side(fig.6) 6. Filter frame upper 7. Exhaust Connector 8. Filter frame lower 9. Rubber plug 10. Plug cap 11.Power Cord fig.6 Check packing accessories, read user’s manual to get how to use them. (fig.4) (fig.4) 1. -
Page 7: Control Panel
Control Panel 1. POWER: press this key to turn on/off machine. After machine turns on, default value is cooling mode with low fan speed. 2. MODE: after machine turns on, press this key to select cooling, dehumidifying and fan mode. 3. -
Page 8: Remote Control
Remote Control 1. Power 2. Timer 3. Down 4. Mode 5. Up 6. Fan 7. Sleeping 8. Swing Operation Methods Cooling mode ·After machine turns on, default value is cooling mode with 22℃ and low fan speed. ·Press “ MODE” to select cooling mode, cooling mode indictor turns on . ·Press “... -
Page 9: Water Drainage
·Under power-on mode, press “TIMER” to setup power-off timer. Timer indicator turns on. Dehumidifying mode ·Press “MODE” to select dehumidifying mode, dehumidifying mode indicator turns on . ·Under dehumidifying mode, sleeping function cannot be setup, and fan speed is low. Sleeping mode ·... -
Page 10: Maintenance
Maintenance Note: in order to avoid electric shocks, please power-off the machine and pull out plug before maintenances or repairs. Cleaning ·Please pull out plug before cleaning . ·Use soft semi-dry cloth to clean the machine. Don’t use chemical agents, such as benzene, alcohol, gasoline and so on ;... -
Page 11: Trouble Shooting
Trouble Shooting Please contact professional serviceman without delay in following situation Trouble Cause Solution Power off Power on Machine cannot water-full indicator turns on Drain water out work Direct sunlight Draw the curtains Machine Door and windows are open, Close the door and windows, move out auto-restarts many heat sources in the room. - Page 12 C./ Industria, 13 l Polígono Industrial El Pedregar 08160 Montmeló Barcelona (Spain) Phone: 93 390 42 20 Fax: 93 390 42 05 info@htwspain.com www.htwspain.com...
