Cable Box Hookup
This chapter will show you
how to connect external
devices, such as a cable box,
stereo, or satellite receiver, to
your Dual-Deck VCR.
1
Connect Cable to Cable Box
Connect an RF antenna cable from your cable
wall outlet to the "In from Cable" jack on the
Cable Box.
2
Connect Cable Box to VCR
Connect a second RF cable from the "Out to
TV" jack on the Cable Box to the "IN (FROM
ANT.)" jack on the back panel of the VCR.
3
Connect VCR to TV
Connect the supplied RF cable from the "OUT
(TO TV)" jack on the back panel of the VCR to
your television's "Antenna In" jack.
4
Plug In VCR
Connect the VCR power cord to a standard
120V/60Hz wall outlet.
5
Turn On TV, VCR & Cable Box
Press the power buttons on the remote control,
TV, and Cable Box.

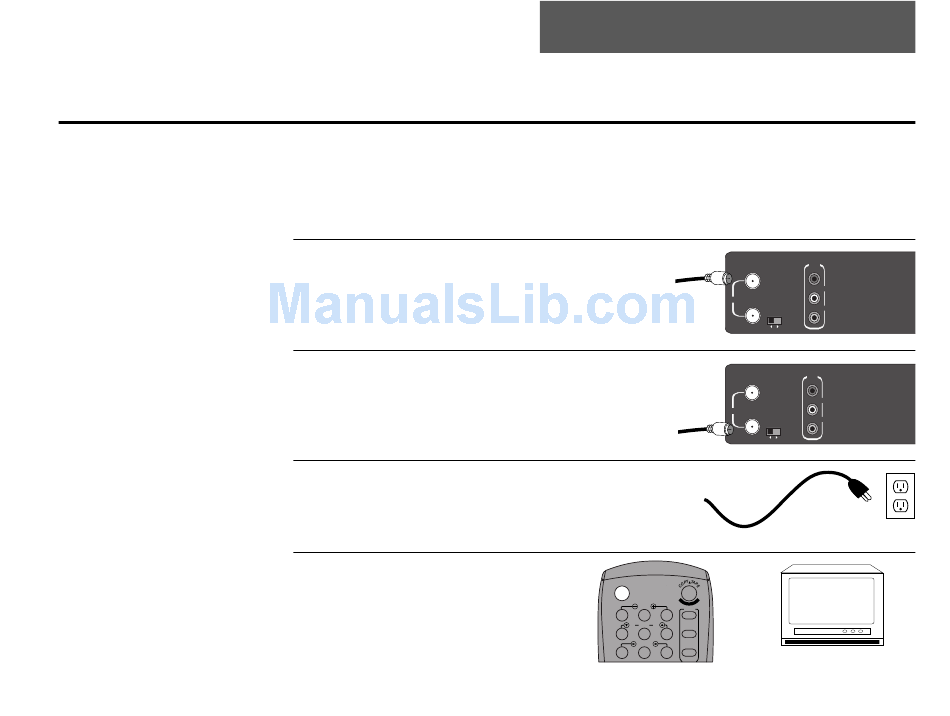

11 - Advanced Connections
From Cable
Box
RF
RF
To TV
POWER
SLOW
VCR
1
2
3
TRK
AUTO
TRK
¥TV
6
4
5
SHUTTLE
¥CABLE
7
8
9
¥DSS
IN
LINE
(FROM ANT.)
OUT
R
AUDIO
L
OUT
(TO TV)
VIDEO
CH
3
4
IN
LINE
(FROM ANT.)
OUT
R
AUDIO
OUT
L
(TO TV)
VIDEO
CH
3
4
ON
81
ADVANCED CONNECTIONS
