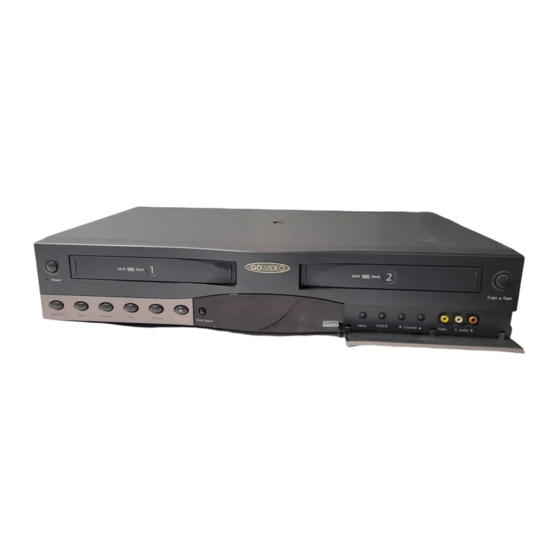

Go-Video DDV9556 Specifications

DDV9556
UPC Code 0 98226 09556 6
DDV9556TechnicalSpecifications
Weight/Dimensions:
17 lbs. / 534 x 105 x 331mm (21" x 4" x 13")
Video System: VHS system
Television System: NTSC-type color signal
EIA standard (525 lines, 60 fields)
Audio Track Normal: 1 track; Hi-Fi: 2 track
Tape Width: 12.7mm, 1/2 inch
Tape Speed SP: 33.35mm/s SLP: 11.12mm/s
Play/Record Time:
T-120 tape: SP 2 hrs, SLP 6 hrs
FF/Rew Time: T-120 tape: <110 seconds
Power Requirement:
120V AC, 60Hz, 26 watts max.
Agency Approvals: UL, FCC, CSA, NOM
RF Modulation: Channel 3 or 4
Clock Backup Time: 1 Minute
Environment:41-104°F (5-40°C); 10-75% humidity
Frequency Response:
20-20kHz (Hi-Fi); S/N Ratio: 70dB (Hi-Fi)
Wow & Flutter:<0.005% (Hi-Fi)
Video: DA 4 rotary heads, both decks
Audio:2 rotary heads (Hi - Fi ) ;1 stationary head(Linear)
Control: 1 stationary head
Erase: 1 full track, 1 audio track
Input: RCA type 75 ohms unbalanced, 1 V P-P
Output: RCA type 75 ohms unbalanced, 1 V P-P
Horiz Res: Monochrome, more than 230 lines (SP)
Signal to noise ratio: Better than 43 db
Input: AUDIO IN (RCA) -8dbu, 47K ohms
Output: AUDIO OUT (RCA) -8dbu,1.5K o h m
unbalanced
TV Tuner: 181 channel frequency synthesized.
VHF input Ch 2-13. UHF input Ch 14-69.
Cable Channel 1-125.
Sensory Science pioneered and holds the patents
on Dual-Deck technology. These features are an
intrinsic part of each and every Dual-Deck VCR:
TheSensoryScienceExperience
Two VCRs In One
Watch one video while recording another.
Record two different videotapes from two
different sources at the same time. Easily
duplicate home movies without having to
hook up two separate VCRs. All of this...
only with the Go-Video ® Dual-Deck from
Sensory Science. Why settle for an ordinary
VCR when you can have two in one!
Easy Camcorder Footage Editing
If you're like most of us, you've got boxes
full of home VHS tapes just waiting to be
edited together and copied for other family-
members. The Go-Video ®
you to add voice explanations or funny lines,
add on-screen written titles, and/or change
the order of up to 8 scenes automatically!
Now you can easily make your own custom
home movies.
Copying Made So Simple
Heads: Place the tape you want to copy in Deck 1,
place a blank tape in Deck 2. Then hit the
Copy Tape Button located right on the front
of your Dual-Deck VCR or on the top of your
remote control. Copying couldn't possibly
get any easier.
Video:
Twice the Playback or
Recording Time
In loop mode, your Go-Video
will keep playing—from Deck 1 to Deck 2
back to Deck 1—indefinitely. Or choose
Audio:
Sequence to record (or play) from Deck 1
through to Deck 2—after which the unit will
stop, rewind, and turn itself off!
©2000 Sensory Science Corporation. Dual-Deck
(CPR) and Copy Tape ™ , are trademarks of Sensory Science Corporation. VCR Plus+ and PlusCode are registered trademarks
of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development
Corporation. Copyright Warning: Go-Video's Dual-Deck VCR is not made or sold for unauthorized recording of copyrighted
works, including, without limitation, unauthorized recordings from pre-recorded copyrighted movies. All specifications subject to
change.
Americhrome
This patented process ensures picture-
perfect copies every time without the hisses
and poor picture quality you get with
regular VCRs when you're copying from
tape to tape. Great engineering is just part of
the Sensory Science experience that you'll
enjoy right in your living room.
Even More Features Part of Every
Go-Video ® Dual-Deck VCR
Complete Program Record (CPR) which
senses the end of a tape and switches to
slow play to make sure your tape doesn't
Dual-Deck allows run out.
Timer Recording which lets you set up to
16 events to record up to 1 year in advance
whether or not your VCR is turned on. (As
long as there's a tape in a deck.)
Skip Search/Edit which allows you to
easily remove or skip commercials later.
Child Lock which disables the front of the
unit completely. (Then you hide the remote.)
Auto Setup which automatically sets the
clock and searches for channels when you
plug your unit in to your TV.
Your choice of menu settings in English,
Spanish or French.
The Go-Video
VCR is twice as good as any
® Dual-Deck
VCR on the market...only from
Sensory Science.
™ , Americhrome , Video Sequencing ™ ™ , EZ Copy
TM Circuitry
® Dual-Deck
, Complete Program Record ™ ™
Scottsdale, Arizona USA 85260-1732
TEL 480.998.3400 FAX 480.998.8312
New remote
control with glow-
in-the-dark keys
7835 East McClain Drive
www.sensoryscience.com
