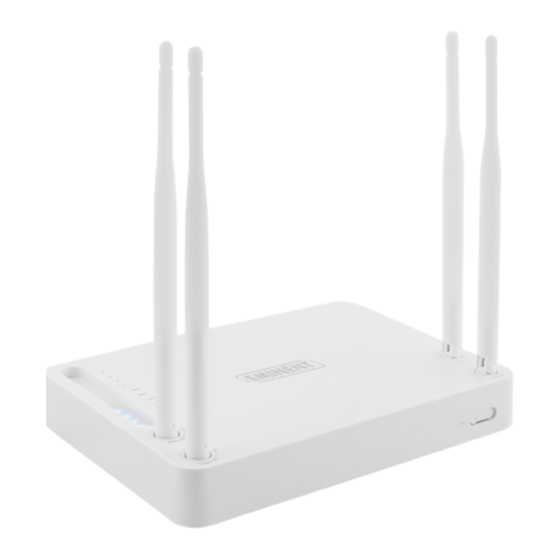

- Page 1 EM4510 R1 Concurrent Dual Band AC Gigabit Router...
-
Page 2: Table Of Contents
ENGLISH EM4510 R1 - Concurrent Dual Band AC Gigabit Router Table of contents 1.0 Introduction ......................3 1.1 Packing contents ....................3 2.0 Configure your wireless router ................3 2.1 Connecting the router ..................4 2.2 Configuring the router for connection with the Internet ........5 2.3 Determining the connection method .............. -
Page 3: Introduction
ENGLISH 13.0 Warranty conditions ................... 29 1.0 Introduction Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by Eminent warranty. -
Page 4: Connecting The Router
ENGLISH Example of EM4510 as wireless router 2.1 Connecting the router Turn off your computer. Connect the router to a wall outlet using the supplied power adapter. Connect the supplied UTP network cable to the ‘WAN’ port of the router. Connect the other end of the UTP network cable to the ‘LAN’... -
Page 5: Configuring The Router For Connection With The Internet
ENGLISH 2.2 Configuring the router for connection with the Internet Before you can configure the router for a connection with the Internet, you will first need to connect to the router. Follow the instructions below to connect to the router. Turn on your computer. -
Page 6: Configuring The Router For A Dhcp Internet Connection
ENGLISH 2.3.1 Configuring the router for a DHCP Internet connection For an internet connection using ‘DHCP’ you can use the following steps. Click ‘Internet Wizard’. Select ‘Manual Internet Configuration’. Click ‘Next’. Select ‘DHCP Method’. Click ‘Next’. Click ‘Next’. Click ‘Save’ and ‘Close’. The wizard will now save the settings en will close the screen automatically. -
Page 7: Securing A Wireless Network
ENGLISH 2.4 Securing a wireless network To avoid having uninvited guests probing your wireless network we strongly recommend securing your wireless network. There are several security methods which can secure the network at different levels. To apply a method to your network it is required that all wireless network devices support this method. -
Page 8: Wep Security
ENGLISH 22. Click ‘Apply and Set 5GHz Wireless Network’. 23. Now the Wizard will help you to setup the security for the 5GHz band. 24. Choose you country/region and click ‘Next’. 25. At the field ‘SSID’ fill out the name desired for your wireless network. (Use the ‘Check SSID’... -
Page 9: Setting Up A Secured Connection Using Wps
The EM4510 can be secured using WPS. WPS is a handy feature, which allows you to secure your wireless network by pressing the WPS button on both your Eminent router and your wireless WPS adapter. The Eminent router and your wireless WPS device will then automatically ‘agree’... - Page 10 If correct, Windows will now ask you to fill out your wireless security key. Also, the lower part of the screen shows you to push the WPS button on the router. Press the WPS button on the Eminent router for approximately 1-2 seconds (not longer!).
-
Page 11: Manual Configuration As An Access Point
WPS adapter for the exact amount of time you need to press the WPS connection. The connection between the Eminent router and your wireless WPS adapter will be established automatically. The following icon will be visible in the taskbar: . -
Page 12: Connecting The Router
12 | ENGLISH Example of EM4510 as an Access Point 4.1 Connecting the router Turn off the computer. Connect the router to a wall outlet using the supplied power adapter. Connect the supplied UTP network cable to the ‘LAN 4’ port of the router. Connect the other end of this UTP network cable to the network adapter of your computer. -
Page 13: Configuring The Router As An Access Point
13 | ENGLISH 4.2 Configuring the router as an Access Point Before you can configure the router for an Internet connection you first need to connect to the router by following the procedure below. Turn on your computer. Open your web browser (e.g. Internet Explorer or Firefox). Type ‘http://192.168.8.1’... -
Page 14: Connecting The Signal Booster (2)
14 | ENGLISH Note: WDS is not a standard protocol and may not work between different brands and models. If you are facing problems please refer to the chapter “Configure the router as a signal booster (Wireless Multi Bridge). EM4510 as signal repeater 5.1 Connecting the signal booster (2) Turn off your computer. -
Page 15: Securing Your Signal Booster (2) (Wpa2 Aes)
15 | ENGLISH 5.2 Securing your signal booster (2) (WPA2 AES) If you use the router as a signal booster with another device, WPA2 AES security is supported. If you use another type of wireless router, WEP security is recommended. To avoid having uninvited guests probing your wireless network we strongly recommend securing your wireless network. -
Page 16: Configuring The Signal Booster (2)
16 | ENGLISH Channel: ____________________________________________________ 5.3 Configuring the signal booster (2) Turn on your computer. Open your internet browser (e.g. Internet Explorer or Firefox). Type ‘http://192.168.8.1’ in the address bar. Press the ‘Enter key’ or click ‘Go to’. Click ‘Setup Tool’. You will now be asked for a ‘Username’... -
Page 17: Connecting Your Wireless Router With The Signal Booster (2)
17 | ENGLISH You will now be asked for a ‘Username’ and a ‘Password’. Fill out ‘admin’ in the ‘Username’ field and ‘admin’ in the ‘Password’ field and press the enter key. The wizard appears in a pop-up screen. Click ‘Next’. Choose you country/region and click ‘Next’. -
Page 18: Completing The Installation Of The Signal Booster
18 | ENGLISH Type ‘http://192.168.8.1’ in the address bar. Click ‘Setup Tool’. You will now be asked for a ‘Username’ and a ‘Password’. Fill out ‘admin’ in the ‘Username’ field and ‘admin’ in the ‘Password’ field and press the enter key. Click ‘Advanced Setup’... -
Page 19: Configuring The Router As A Signal Booster (Wireless Multi Bridge)
EM4510 as a signal booster by using the Wireless Multi Bridge option. Using this option, the Eminent router will connect to your wireless modem or router using the same technique as your computer does. Once the Eminent router has established a connection with your wireless modem or router, the Eminent router has an internet connection. -
Page 20: Configuring The Wireless Multi Bridge Settings
IP-Address ‘192.168.1.1’, you need to make sure the Eminent router is set to this IP-range. You can set the Eminent router to ‘192.168.1.200’. From that moment on, the Eminent router is accessible using this new IP-Address. -
Page 21: Configuring The Wireless Network On Your Computer
21 | ENGLISH 7.0 Configuring the wireless network on your computer Now that the router has been secured you will need to configure the computer itself so it can recognize your secured wireless network and will be able to make a connection. Windows XP, Windows Vista, Windows 7 and Windows 8 are at this moment the most commonly used operating systems. -
Page 22: Configuring A Wireless Network Using Windows Vista/7/8
22 | ENGLISH 7.2 Configuring a wireless network using Windows Vista/7/8 To realize a wireless connection using Windows Vista you will need to follow the steps below: Click ‘Start’. Click ‘Control Panel’. Click ‘Network and Internet’. Click ‘Network and Sharing Centre’. Click ‘Manage wireless networks’... -
Page 23: Port Forwarding
23 | ENGLISH 8.1 Port Forwarding Open your web browser (e.g. Internet Explorer or Firefox). Type ‘http://192.168.8.1’ in the address bar. Press the enter key or click ‘Go to’. Click ‘Setup Tool’. You will now be asked for a ‘Username’ and a ‘Password’. Fill out ‘admin’ in the ‘Username’... -
Page 24: Setting Up Qos
24 | ENGLISH 8.3 Setting up QoS Thanks to QoS (Quality Of Service) you can make sure that a specific program or computer gets priority above other programs. By using this feature, you are certain that you will not get ‘lag’ in games or hitches during video playback, in case one of the computers starts to download. -
Page 25: Vpn - Virtual Private Networking
25 | ENGLISH Example: 10Mbit / 1Mbit connection. Problem: When PC1 starts to download, the internet connection gets slow or sluggish. Suggestion: Set PC1 to ‘Max Limit’ and set a maximum of 5000 Kbit download and 512 Kbit upload. Problem: During online play with PC, Playstation or Xbox the screen freezes strange artifacts appear on screen. -
Page 26: Frequently Asked Questions And Other Related Information
The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about... -
Page 27: Service And Support
A power socket is needed which should be close and easy accessible from the device. Repairing of the device should be done by qualified Eminent staff. Never try to repair the device yourself. The warranty immediately voids when products have undergone self-repair and/or by misuse. - Page 28 - Unplug the device when you don’t use it for a long time - Use the device at a well ventilated place *Tip: Eminent manuals are written with great care. However, due to new technological developments it can happen that a printed manual does not longer contain the most recent information.
- Page 29 Eminent warranty. Products are not covered by the Eminent warranty when exposed to incorrect/improper use, external influences or when opening the service parts of the product by parties other than Eminent.
