Eminent EM4561 / EM4567 Manual

Router wireless n adsl2/2+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EM4561 / EM4567
Router Wireless N ADSL2/2+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM4561 / EM4567 and is the answer not in the manual?

Questions and answers

Related Manuals for Eminent EM4561 / EM4567

Summary of Contents for Eminent EM4561 / EM4567

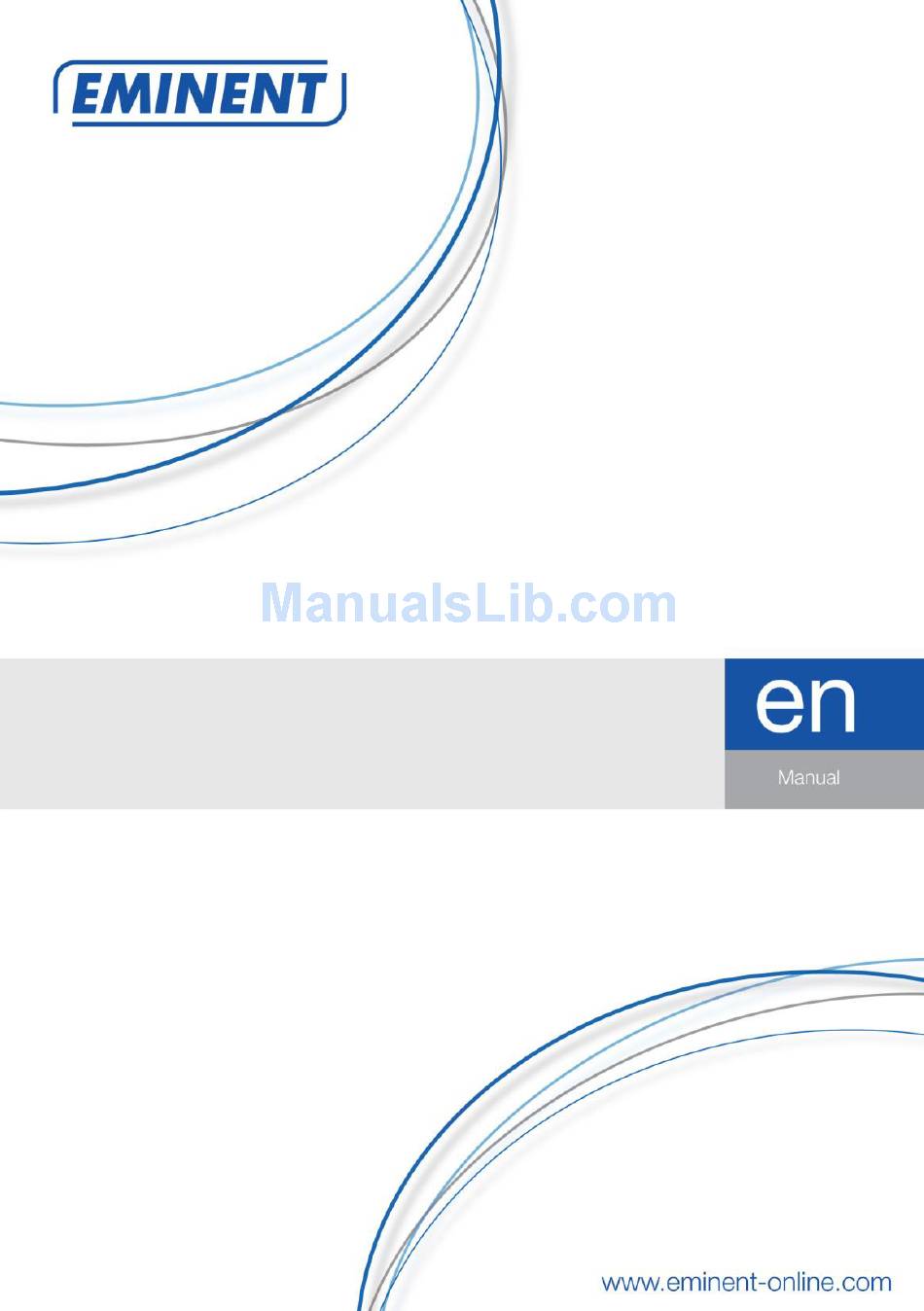

  • Page 1 EM4561 / EM4567 Router Wireless N ADSL2/2+...

  • Page 2: Table Of Contents

    ENGLISH EM4561/EM4567 Router Wireless N ADSL2/2+ Table of contents 1.0 Introduction ......................3 1.1 Packing contents ....................3 2.0 LEDs and interface ....................4 2.1 System Requirements ................... 5 2.2 Features ........................ 5 3.0 Hardware Installation ..................... 6 4.0 Access the Router ....................7 4.1 Status ........................

  • Page 3: Introduction

    Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by a five-year Eminent warranty. Please keep this manual and the receipt in a safe place.

  • Page 4: Leds And Interface

    ENGLISH  Quick Installation Guide 2.0 LEDs and interface Front Panel LEDs Status Description The initialization of the device is successful Power The device is powered off DSL link up / link synchronized Link disconnection Blinkink Link training / DSL link not synchronized Successful PPP session Blinking Failure PPP session (1 minute after link)

  • Page 5: System Requirements

    ENGLISH LAN1~4 RJ45 interface, for connecting to the Ethernet interface of a PC or the Ethernet devices through an Ethernet cable. RJ11 interface, for connecting to the ADSL interface or a splitter through a telephone cable WLAN/WPS Press the button between 1s and 5s to enable WLAN function.

  • Page 6: Hardware Installation

    ENGLISH  Line connection status test  Remote management (Telnet; HTTP )  Backup and restoration of configuration file  IP quality of service (QoS)  Universal plug and play (UPnP)  WLAN with high-speed data transmission rate, compatible with IEEE ...

  • Page 7: Access The Router

    ENGLISH Connection 4.0 Access the Router The following is the detailed description of accessing the router for the first time. Configure the IP address of the PC as 192.168.1.X (2~254), Subnet Mask as 255. 255.255.0. Open the Internet Explorer (IE) browser and enter http://192.168.1.1.In the Login page that is displayed, enter the username and password.

  • Page 8: Status

    ENGLISH appears. You can check the basic settings of the modem, such as firmware version, upstream speed, downstream speed, LAN MAC address, LAN IP address, DHCP server status. You can also view the basic status of WAN and DNS server. 4.1 Status The tab Status contains Device Info and Statistics.
  • Page 9 ENGLISH Click Status > Statistics, the following page appears. In this page, you can view the statistics of each network port.

  • Page 10: Wizard

    10 | ENGLISH 4.2 Wizard In the navigation bar, click Wizard. The tab Wizard only contains Wizard.
  • Page 11 11 | ENGLISH 1) Change the VPI or VCI values which are used to define a unique path for your connection. If you have been given specific settings for this to configuration, type in the correct values assigned by your ISP. 2) Please select the Connection Type given by your ISP.
  • Page 12 12 | ENGLISH 5) On this page, please confirm all parameters. Click Prev to modify or click the Apply Changes button to save your configuration. 6) You will see the Complete screen below.

  • Page 13: Setup

    13 | ENGLISH 4.2 Setup In the navigation bar, click Setup. The tab Setup contains WAN, LAN and WLAN. 4.2.1 WAN Configuration Choose Setup > WAN > WAN and the page shown in the following figure appears. In this page, you can configure WAN interface of your router.
  • Page 14 14 | ENGLISH The following table describes the parameters of this page. Field Description Default Route Selection You can select Auto or Specified. The virtual path between two points in an ATM network, ranging from 0 to 255. The virtual channel between two points in an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known protocols) Encapsulation...
  • Page 15 15 | ENGLISH Management Protocol (IGMP) function. IP Protocol Select this interface support ipv4/ipv6, ipv4 or ipv6. PPP Settings User Name Enter the correct user name for PPP dial-up, which is provided by your ISP. Password Enter the correct password for PPP dial-up, which is provided by your ISP.
  • Page 16 16 | ENGLISH item of this table is eight. After proper settings, click Add and the following page appears. Click in the PPPoE mode, the page shown in the following figure appears. In this page, you can configure parameters of this PPPoE PVC.
  • Page 17 17 | ENGLISH The following table describes the parameters and buttons of this page. Field Description Protocol It displays the protocol type used for this WAN connection. ATM VCC The ATM virtual circuit connection assigned for this PPP interface (VPI/VCI). Login Name The user name provided by your ISP.

  • Page 18: Atm Setting

    18 | ENGLISH Connection Type You can choose Continuous, Connect on Demand or Manual. Idle Time (s) If choose Connect on Demand, you need to enter the idle timeout time. Within the preset minutes, if the router does not detect the flow of the user continuously, the router automatically disconnects the PPPoE connection.

  • Page 19: Adsl Setting

    19 | ENGLISH Peak cell rate (PCR) is the maximum rate at which cells can be transmitted along a connection in the ATM network. Its value ranges from 1 to 65535. CDVT Cell delay variation tolerance (CDVT) is the amount of delay permitted between ATM cells (in microseconds).
  • Page 20 20 | ENGLISH The following table describes the parameters of this page. Field Description IP Address Enter the IP address of LAN interface. It is recommended to use an address from a block that is reserved for private use. This address block is 192.168.1.1- 192.168.255.254.

  • Page 21: Dhcp

    21 | ENGLISH Modify Select the index from Ethernet status table, and then click modify. Ethernet Status Table It shows the current Ethernet status list. MAC Address Control Select the LAN interface on which you want to run MAC Address Control. New MAC Address A MAC address to be added.
  • Page 22 22 | ENGLISH The following table describes the parameters of this page. Field Descriprion DHCP Mode If set to DHCP Server, the router can assign IP addresses, IP default gateway and DNS Servers to the host in Windows95, Windows NT and other operation systems that support the DHCP client.
  • Page 23 23 | ENGLISH Expiry (s) It displays the lease time. The lease time determines the period that the host retains the assigned IP addresses before the IP addresses change. Refresh Click it to refresh this page. Close Click it to close this page. Click Set Vendor Class IP Range in the DHCP Mode page, the page as shown in the following figure appears.

  • Page 24: Dhcp Static

    24 | ENGLISH The following table describes the parameters and buttons of this page. Field Description DHCP Mode If set to DHCP Relay, the router acts a surrogate DHCP Server and relays the DHCP requests and reponses between the remote server and the client. Relay Server Enter the DHCP server address provided by your ISP.

  • Page 25: Wlan

    25 | ENGLISH The following table describes the parameters and buttons of this page. Field Description IP Address Enter the specified IP address in the IP pool range, which is assigned to the host. MAC Address Enter the MAC address of a host on the LAN. After entering the IP address and MAC address, click it.
  • Page 26 26 | ENGLISH The following table describes the parameters of this page. Field Description Band Choose the working mode of the modem. You can choose from drop-down list. Mode Choose the network model of the modem, which is varied according to the software. By default, the network model of the modem is AP.

  • Page 27: Security

    27 | ENGLISH 4.2.8 Security Choose WLAN > Security, and the following page appears. The following table describes the parameters of this page. Field Description SSID Type Service Set Identifier, is a name of a local area network Encryption Configure the wireless encryption mode. You can choose None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 (TKIP) or WPA2 Mixed.
  • Page 28 28 | ENGLISH Click SetWEP Key, and the following page appears. The following describes the parameters of this page. Field Description Key Length Choose the WEP key length. You can Choose 64-bit or 128-bit.  Key Format If you choose 64-bit, you can choose ASCII (5 characters) or Hex (10 characters).

  • Page 29: Multi-Bssid

    29 | ENGLISH Encryption Key 1 to 4 The Encryption keys are used to encrypt the data. Both the modem and wireless stations must use the same encryption key for data transmission.  If you choose 64-bit and ASCII (5 characters), enter any 5 ASCII characters.

  • Page 30: Access Control

    30 | ENGLISH It supports 4 virtual access points (VAPs).It is a unique name to identify the modem in the wireless LAN. Wireless stations associating to the modem must have the same name. Enter a descriptive name that is used when the wireless client connecting to the modem.

  • Page 31: Advanced

    31 | ENGLISH Choose Allow Listed as the access control mode to enable white list function. Only the devices whose MAC addresses are listed in the Current Access Control List can access the modem. Choose Deny Listed as the access control mode to to enable black list function. The devices whose MAC addresses are listed in the Current Access Control List are denied to access the modem.
  • Page 32 32 | ENGLISH The following table describes the parameters and buttons of this page. Field Description Enable Select it to use static IP routes. Destination Enter the IP address of the destination device. Subnet Mask Enter the subnet mask of the destination device. Next Hop Enter the IP address of the next hop in the IP route to the destination device.

  • Page 33: Rip

    33 | ENGLISH 4.3.1.2 RIP Click RIP in the left pane, the page shown in the following figure appears. If you are using this device as a RIP-enabled router to communicate with others using Routing Information Protocol (RIP), enable RIP. This page is used to select the interfaces on your devices that use RIP, and the version of the protocol used.

  • Page 34: Nat

    34 | ENGLISH 4.3.2 NAT 4.3.2.1 DMZ Demilitarized Zone (DMZ) is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers.

  • Page 35: Alg

    35 | ENGLISH The following table describes the parameters of this page. Field Description Service Type You can select the common service type, for example, AUTH, DNS,FTP or POP3. You can also define a service name.  If you select Usual Service Name, the corresponding parameter has the default settings.

  • Page 36: Nat Exclude Ip

    36 | ENGLISH 4.3.2.4 NAT Exclude IP Click NAT Exclude IP in the left pane, the page shown in the following figure appears. In the page, you can configure some source IP addresses which use the purge route mode when accessing internet through the specified interface.

  • Page 37: Port Trigger

    37 | ENGLISH 4.3.2.5 Port Trigger Click Port Trigger in the left pane, the page shown in the following figure appears. Click the Usual Application Name drop-down menu to choose the application you want to setup for port triggering. When you have chosen an application the default Trigger settings will populate the table below.

  • Page 38: Nat Ip Mapping

    38 | ENGLISH 4.3.2.7 Nat IP Mapping Click Nat IP Mapping in the left pane, the page shown in the following figure appears. Entries in this table allow you to config one IP pool for specified source ip address from Lan,so one packet which's source ip is in range of the specified address will select one IP address from pool for NAT.

  • Page 39: Qos

    39 | ENGLISH 4.3.3 QOS Choose Advanced > QoS, the page shown in the following figure appears. Entries in the QoS Rule List are used to assign the precedence for each incoming packet based on physical LAN port, TCP/UDP port number, source IP address, destination IP address and other information.
  • Page 40 40 | ENGLISH The following table describes the parameters and buttons of this page. Field Description IP QoS Select to enable or disable IP QoS function. You need to enable IP QoS if you want to configure the parameters of this page.

  • Page 41: Cwmp

    41 | ENGLISH Source IP The IP address of the source data packet. Source Mask The subnet mask of the source IP address. Destination IP The IP address of the destination data packet Destination Mask The subnet mask of the destination IP address. Source Port The port of the source data packet.
  • Page 42 42 | ENGLISH...

  • Page 43: Port Mapping

    43 | ENGLISH The following table describes the parameters of this page: Field Description The URL of the auto-configuration server to connect to. User Name The user name for logging in to the ACS. Password The password for logging in to the ACS. Periodic Inform Select Enable to periodically connect to the ACS to check whether the configuration updates.
  • Page 44 44 | ENGLISH Create four rules through Group1 to Group4. The procedure is as follows: Step 1 Select Enable to enable port mapping. Step 7 Select Group1. Then the interfaces are added in the WAN and LAN table. Step 8 Select the interfaces that are respectively added to WAN and LAN. Press Ctrl while selecting multiple interfaces.
  • Page 45 45 | ENGLISH Step 10 Click Apply to apply the settings, and the following page appears.

  • Page 46: Others

    46 | ENGLISH In this example, only interfaces of pppoe1 and LAN1 can communicate with each other. That is, only LAN1 can access the Internet through pppoe1 interface. 4.3.6 Others Choose Advanced > Others. The page that is displayed contains Bridge Setting, Client Limit, Tunnel and Others.

  • Page 47: Bridge Setting

    47 | ENGLISH 4.3.6.1 Bridge Setting Choose Bridge Setting in the left pane, the page shown in the following figure appears. This page is used to configure the bridge parameters. You can change the settings or view some information on the bridge and its attached ports. Field Description Ageing Time...

  • Page 48: Others

    48 | ENGLISH 4.3.6.3 Others Choose Others in the left pane, the page shown in the following figure appears. 4.4 Service In the navigation bar, click Service. The tab Service contains IGMP, UPnP, SNMP, DNS and DDNS. 4.4.1 IGMP Choose Service > IGMP, and the following page appears. The page that is displayed contains IGMP Proxy.

  • Page 49: Igmp Proxy

    49 | ENGLISH 4.4.1.1 IGMP Proxy Click IGMP Proxy in the left pane, the page shown in the following figure appears. In this page, you can enable or disable IGMP proxy. If you disable IGMP proxy, the modem will discard all the received multicast data packets. 4.4.2 UPnP Click UPnP in the left pane, the page shown in the following figure appears.

  • Page 50: Dns

    50 | ENGLISH Field Description Enable SNMP Select it to enable SNMP function. You need to enable SNMP, and then you can configure the parameters of this page. Trap IP Address Enter the trap IP address. The trap information is sent to the corresponding host.

  • Page 51: Ddns

    51 | ENGLISH The following table describes the parameters and buttons of this page. Field Description Attain DNS Select it, the router accepts the first received DNS assignment Automatically from one of the PPPoA, PPPoE or MER enabled PVC(s) during the connection establishment.

  • Page 52: Ftp Server

    52 | ENGLISH The following table describes the parameters of this page. Field Description DDNS provider Choose the DDNS provider name. You can choose DynDNS.org or TZO. Host Name The DDNS identifier. Interface The WAN interface of the router. Enable Enable or disable DDNS function.

  • Page 53: Firewall

    53 | ENGLISH 4.5 Firewall 4.5.1 MAC Filter Click MAC Filter in the left pane, the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway. These filters are helpful in securing or restricting your local network.

  • Page 54: Ip Port/Filter

    54 | ENGLISH 4.5.2.1 IP Port/Filter Click IP/Port Filter in the left pane, the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network.

  • Page 55: Acl

    55 | ENGLISH 4.5.4 ACL Choose Firewall > ACL, the page shown in the following figure appears. The page that is displayed contains ACL. 4.5.4.1 ACL Click ACL in the left pane, the page shown in the following figure appears. In this page, you can permit the data packets from LAN or WAN to access the router.
  • Page 56 56 | ENGLISH The following table describes the parameters and buttons of this page. Field Description Direction Select Select the router interface. You can select LAN or WAN. In this example, LAN is selected. LAN ACL Switch Select it to enable or disable ACL function. IP Address Enter the IP address of the specified interface.
  • Page 57 57 | ENGLISH Web, Telnet, FTP, TFTP, SNMP or PING. You can also choose all the services. After setting the parameters, click it to add an entry to the Current ACL Table. Reset Click it to refresh this page. Set direction of the data packets to WAN, the page shown in the following figure appears.

  • Page 58: Dos

    58 | ENGLISH Field Description Select the router interface. You can select LAN or WAN. In Direction Select this example, WAN is selected. WAN Setting You can choose Interface or IP Address. WAN Interface Choose the interface that permits data packets from WAN to access the router.
  • Page 59 59 | ENGLISH...

  • Page 60: Maintenance

    60 | ENGLISH 4.6 Maintenance In the navigation bar, click Maintenance. The Maintenance page that is displayed contains Update, Password, Reboot, Time, Log and Diagnostics. 4.6.1 Update Choose Maintenance > Update. The Update page that is displayed contains Firmware Update and Backup/Restore. Caution: Do not turn off the router or press the Reset button while the procedure is in progress.

  • Page 61: Password

    61 | ENGLISH 4.6.2 Password Choose Maintenance > Password, the page shown in the following figure appears. By default, the user name and password are admin and admin respectively. The common user name and password are user and user respectively. The following table describes the parameters of this page.

  • Page 62: Reboot

    62 | ENGLISH Confirm Password Enter the new password again. 4.6.3 reboot Choose Maintenance > Reboot, the page shown in the following figure appears. You can set the router reset to the default settings or set the router to commit the current settings.

  • Page 63: Log

    63 | ENGLISH The following table describes the parameters of this page. Field Description System Time Set the system time manually. NTP Configuration State Select enable or disable NTP function. You need to enable NTP if you want to configure the parameters of NTP. Server Set the primary NTP server manually.

  • Page 64: Diagnostic

    64 | ENGLISH 4.6.6 Diagnostic Choose Maintenance > Diagnostics, the page shown in the following page appears. The page that is displayed contains Ping, Tracert, OAM Loopback, ADSL Diagnostic and Diag-test. Select the option that you want to run diagnostics.

  • Page 65: Frequently Asked Questions And Other Related Information

    5.0 Frequently Asked Questions and other related information The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about your product.
