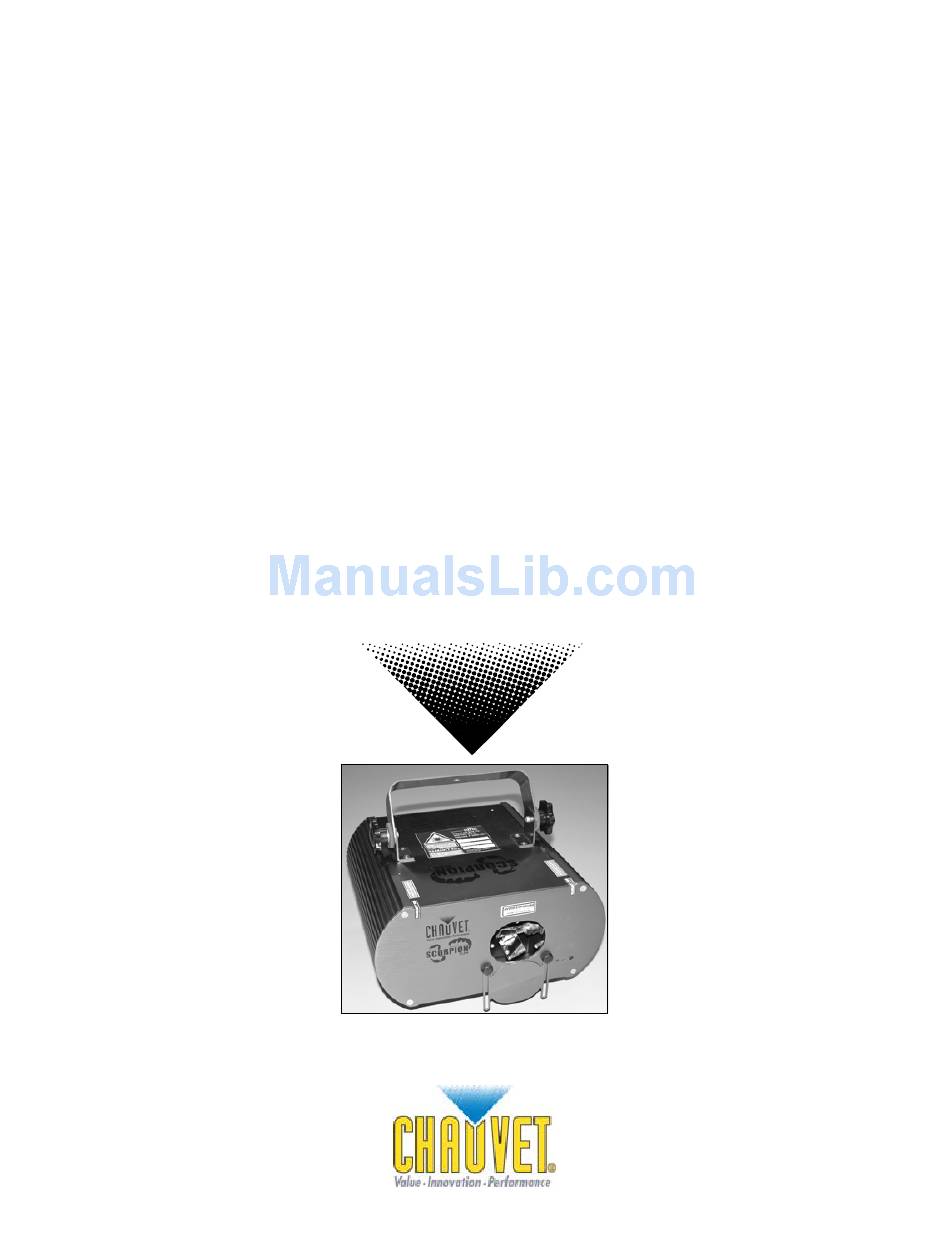

- Page 1 LRG-55 Scorpion™ 55 RG USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
-
Page 2: Table Of Contents
ABLE OF ONTENT BEFORE YOU BEGIN... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 4 AFETY NSTRUCTIONS INTRODUCTION ... 5 ... 5 EATURES DMX C ... 5 HANNEL UMMARY ... 6 RODUCT VERVIEW ... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Scorpion™ 55 RG Warranty Card Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Safety Instructions
Avoid direct eye exposure to lamp while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. LRG-55 User Manual usage and maintenance? Introduction... -
Page 5: Introduction
4.95mW projectors. There is a very distinct reason for this. Unlike 4.95mW projectors the output of the CHAUVET laser projectors with Fatbeam™ technology inside outputs <20mW for each beam. Normally outputs greater than 4.95mW require a variance from the FDA. This product has been designed to meet a special classification of ClassIIIR. -
Page 6: Product Overview

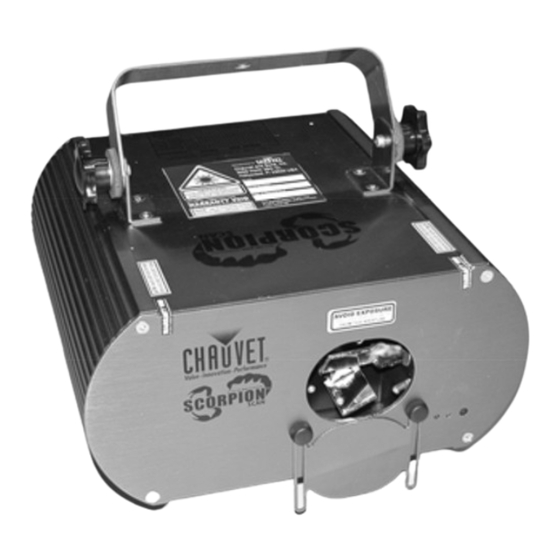

Product Overview Dipswitch settings for DMX addressing & other functions connectors LRG-55 User Manual DANGER: Laser Radiation emitted from this aperture. Before connecting the unit to AC power, make certain that the front aperture is pointed away from you or others. Sound Power Switch Sensitivity... -
Page 7: General Instructions
• Be sure all equipment necessary to operate the system gas arrived intact. • In the event that damage has been found or parts are missing, please contact CHAUVET customer support for further instructions. • Please do not return the unit to your dealer without first contacting CHAUVET customer support. -
Page 8: Compliance Statement
OMPLIANCE TATEMENT Your LRG-55 complies with FDA/CDRH 21CFR1040 and Laser Notice 50 as well as IEC 60825- 1:2003. Due to a unique optic design, this product does not exceed output powers that exceed its classification and output levels government agencies have determined to be appropriate for the products function. -
Page 9: Proper Usage
CHAUVET offers a range of items, which are ideal for safe mounting. It is the responsibility of the manufacturer to provide useful instruction on the proper use of this product. -
Page 10: Dmx Mode
DMX Mode In this mode you will be able to control each individual trait of the fixture independently. The LRG-55 occupies 8 channels of DMX control. For detailed listing of the DMX channel values refer to the Appendix section. SETTING TH E STAR TING ADDRESS This DMX mode enables the use of a universal DMX controller device. -
Page 11: Operation
Operation Stand-Alone Operation (Sound_Active, Auto Mode): This mode allows a single unit to run to the beat of the music, or the unit will auto change in Auto Mode. Set dipswitches position to Sound Active or Auto Mode. Mode Sound Active Auto Mode The unit will react to the low frequencies of music via the internal microphone in Sound Active mode, or the unit will auto change in Auto Mode. -
Page 12: Universal Dmx Control (Dmx Mode)
If the test pattern is not in the proper position restart the AC power by turning off the AC switch and leaving off for 15 seconds and then turning the switch back to the on position. After trying the above solution you still have a problem, please contact CHAUVET. LRG-55 User Manual... -
Page 13: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 14: Dmx Quick Reference Chart
DMX Quick Reference Chart DMX DIP SWITCH 0=OFF 1=ON X=OFF or ON #1 #2 #3 #4 #5 32 64 33 65 34 66 35 67 36 68 100 37 69 101 38 70 102 39 71 103 40 72 104 41 73 105 10 42 74 106 11 43 75 107... -
Page 15: Dmx Channel Values
If the test pattern is not in the proper position restart the AC power by turning off the AC switch and leaving off for 15 seconds and then turning the switch back to the on position. After trying the above solution you still have a problem, please contact CHAUVET. LRG-55 User Manual... -
Page 16: Dynamic Patterns & Dmx Values
Dynamic Patterns & DMX Values LRG-55 User Manual 11/14/2007/18:46... -
Page 17: Static Patterns & Dmx Values
Static Patterns & DMX Values LRG-55 User Manual LRG-55 User Manual 11/14/2007/18:46 11/14/2007/18:46... -
Page 18: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 19: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length... 256 mm (10.08 in) Width ... 270 mm (10.63 in) Height ... 130 mm (5.12 in) Weight ... 4.25 Kg (9.37 lbs) POWER Switch-selectable power settings ...120V 60Hz AC or 230V 50Hz Fuse... 2A 250V Current draw ...
