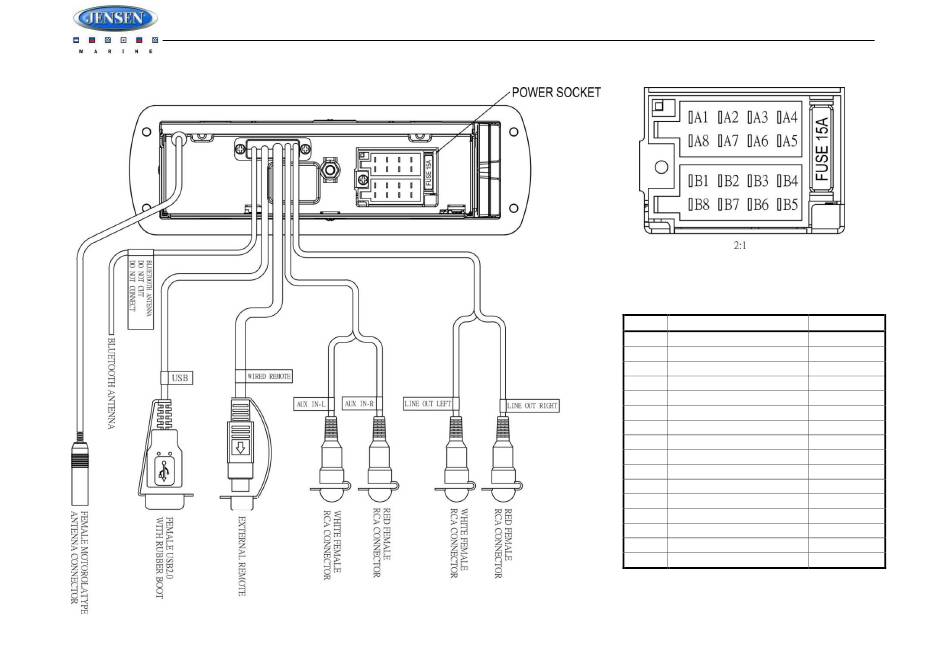

WIRING

PIN
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
5
MS2A
POWER SOCKET
SHOWN FROM PIN VIEW
DESCRIPTION WIRE COLOR
RIGHT REAR SPEAKERS (+) PURPLE
RIGHT FRONT SPEAKERS (+) GRAY
LEFT FRONT SPEAKERS (+) WHITE
LEFT REAR SPEAKERS (+) GREEN
LEFT REAR SPEAKERS (-) GREEN/BLACK
LEFT FRONT SPEAKERS (-) WHITE/BLACK
RIGHT FRONT SPEAKERS (-) GRAY/BLACK
RIGHT REAR SPEAKERS (-) PURPLE/BLACK
NO CONNECTION EMPTY
NO CONNECTION EMPTY
AMP REMOTE (+12VDC 100mA) BLUE
NO CONNECTION EMPTY
GROUND BLACK
NO CONNECTION EMPTY
+12VDC SWITCHED RED
NO CONNECTION EMPTY
