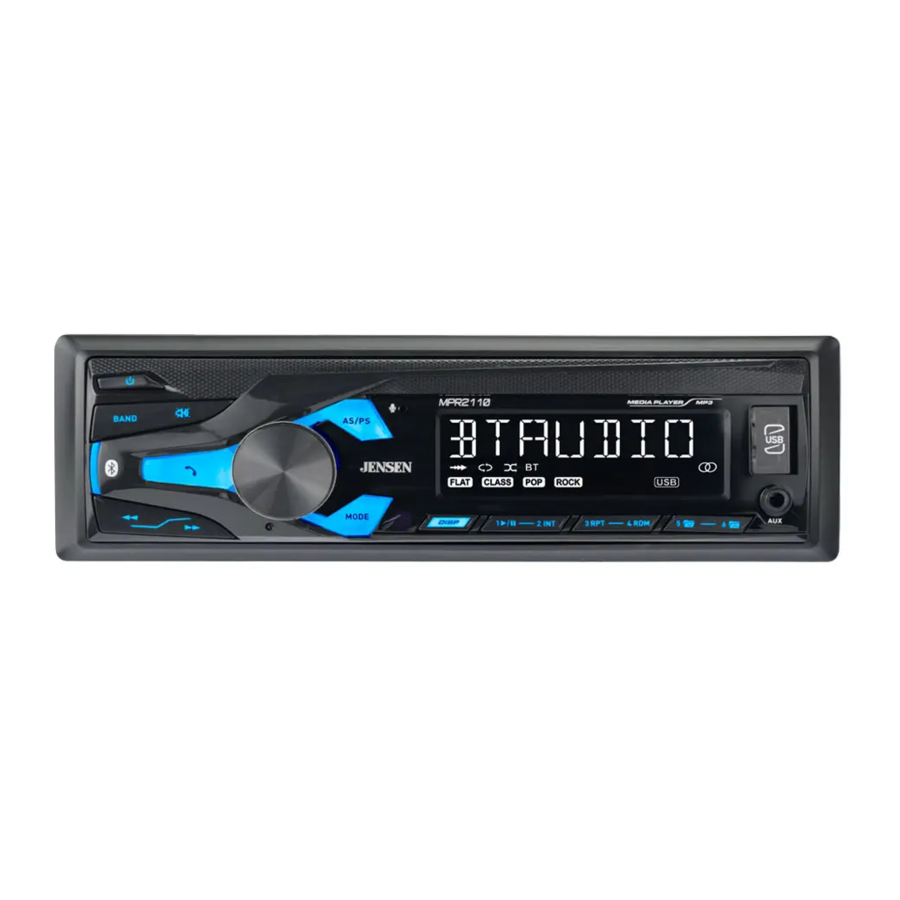

Jensen MPR2110 - Receiver Manual

INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Mounting the Head Unit: Typical DIN mounting

Step 1:
Insert the mounting sleeve into the installation kit or dashboard.

Step 2:
Bend multiple mounting tabs around the mounting sleeve until the mounting sleeve is secure.

Step 3:
Connect all wiring harnesses and slide the head unit into the mounting sleeve until it clicks into place.

Mounting the Head Unit: ISO mounting

Using the existing brackets or the brackets supplied with the installation kit, mount the brackets to the sides of the head unit with the screws supplied with the head unit.

Wiring Diagram

Control Locations

1. Power
2. Band
3. Mute
4. Volume Knob
5. Automatically Store
6. USB Port
7. Auxiliary Input
8. Preset 6 / Folder Up
9. Preset 5 / Folder Down
10. Preset 4 / Random
11. Preset 3 / Repeat
12. Preset 2 / Intro
13. Preset 1 / Play/Pause
14. Display
15. Mode
16. Reset
17. Tune Up
18. Tune Down

1. Mode
2. Volume Up
3. Power
4. Audio
5. Tune Up
6. Volume Down
7. Band
8. Preset 3 / Repeat
9. Preset 2 / Intro
10. Preset 6 / Folder Up
11. Mute
12. AS/PS
13. Preset 5 / Folder Down
14. Preset 4 / Random
15. Preset 1 / Play / Pause
16. Bluetooth Talk
17. Tune Down

OPERATION

General Operation

Power On/Off	Press the button to turn the unit on. Press again to turn the unit off.
Changing Modes	Press MODE to select between Radio, USB, Auxiliary Input and Bluetooth. Modes of operation are shown in the display.
Volume	Adjust volume using the volume knob (00-43).
Mute	Press to silence the audio. Press again to resume listening at the previously selected volume.
Auxiliary Inputs	Insert a 3.5mm cable in the unit's front AUX port.
Reset	Press the RESET button to reset the unit back to the factory settings if abnormal operation occurs. The reset button is located on the front panel.
Setting the Clock	With the unit on, long press DISP to display clock time. Press and hold DISP until the hours or minutes begin to flash, then release. Rotate the volume knob to adjust the time. Long press DISP to finish the clock setting.
Display	Press DISP to toggle display between various displayed information.
Audio / Menu	Press the volume knob momentarily to select between audio functions. Press and hold the volume knob for more than two seconds to select between the menu functions. Rotate the volume knob left/right to adjust or activate the desired function/audio.

AM/FM Tuner Operation

Seek Tuning	Press TUNE or TUNE to seek to the previous or next strong station.
Manual Tuning	Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Press and hold TUNE or TUNE advance quickly.
Band	Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. Up to six presets can be programmed for each band, enabling up to 18 FM stations and 12 AM stations to be stored in memory.
Storing Presets	Up to 18 FM and 12 AM stations can be stored. To store a station, select the desired band and station. Press and hold the desired preset button (1-6) for more than two seconds. When stored, the preset number will appear in the display.
Recalling Presets	Preset stations can be recalled any time by pressing the corresponding preset button.
Automatically Store	Press and hold AS/PS for more than 2 seconds to store 18 FM stations and 12 AM stations automatically.
Preset Scan Stations	Press AS/PS to recall each preset staion that stored in the memories in each band.

USB Operation

Playing MP3 Files	To play MP3 files, insert a USB device containing MP3 files.
Track Select	Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track.
Fast Forward and Reverse	Press and hold TUNE or TUNE to fast forward or reverse a track.
Pause	Press to temporarily stop USB playback. Press again to resume playback.
Folder Access	Folders can be found by pressing Folder Up or Folder Down. About one second after the folder name is displayed, the first file under the selected folder will be displayed and playback will begin.
Repeat	Press RPT to toggle between RPT ALL, RPT FLR and RPT ONE. RPT ALL - Plays all tracks on USB device. RPT ONE - Continuously repeats selected track. RPT FLR - Continuously repeats all files in current folder.
Random	Press RDM to play tracks in random order; press again to cancel the RDM function.
Intro	Press INT to play the first 10 seconds of each track; press again to cancel the INT function.

Bluetooth Operation

Troubleshooting

Specifications

Design and specifications subject to change without notice.

CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)

Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1% THD+N
Signal to Noise Ratio: 75dBA (reference: 1 watt into 4 ohms)

For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Toll Free: 888-921-4088
• E-mail: jensenmobile2015@gmail.com
• www.jensenmobile.com
