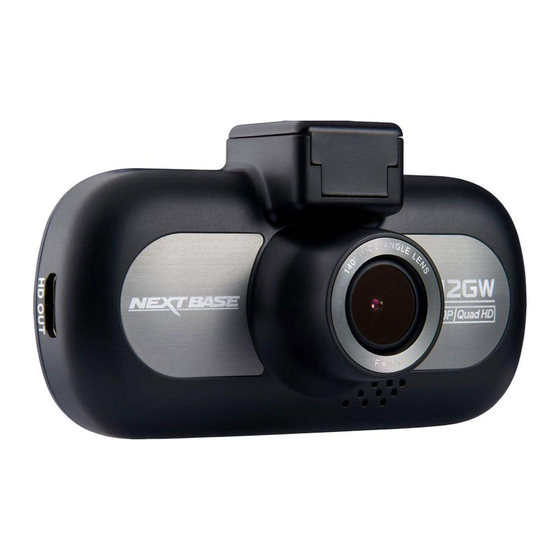

Summary of Contents for NextBase NBDVR412GW

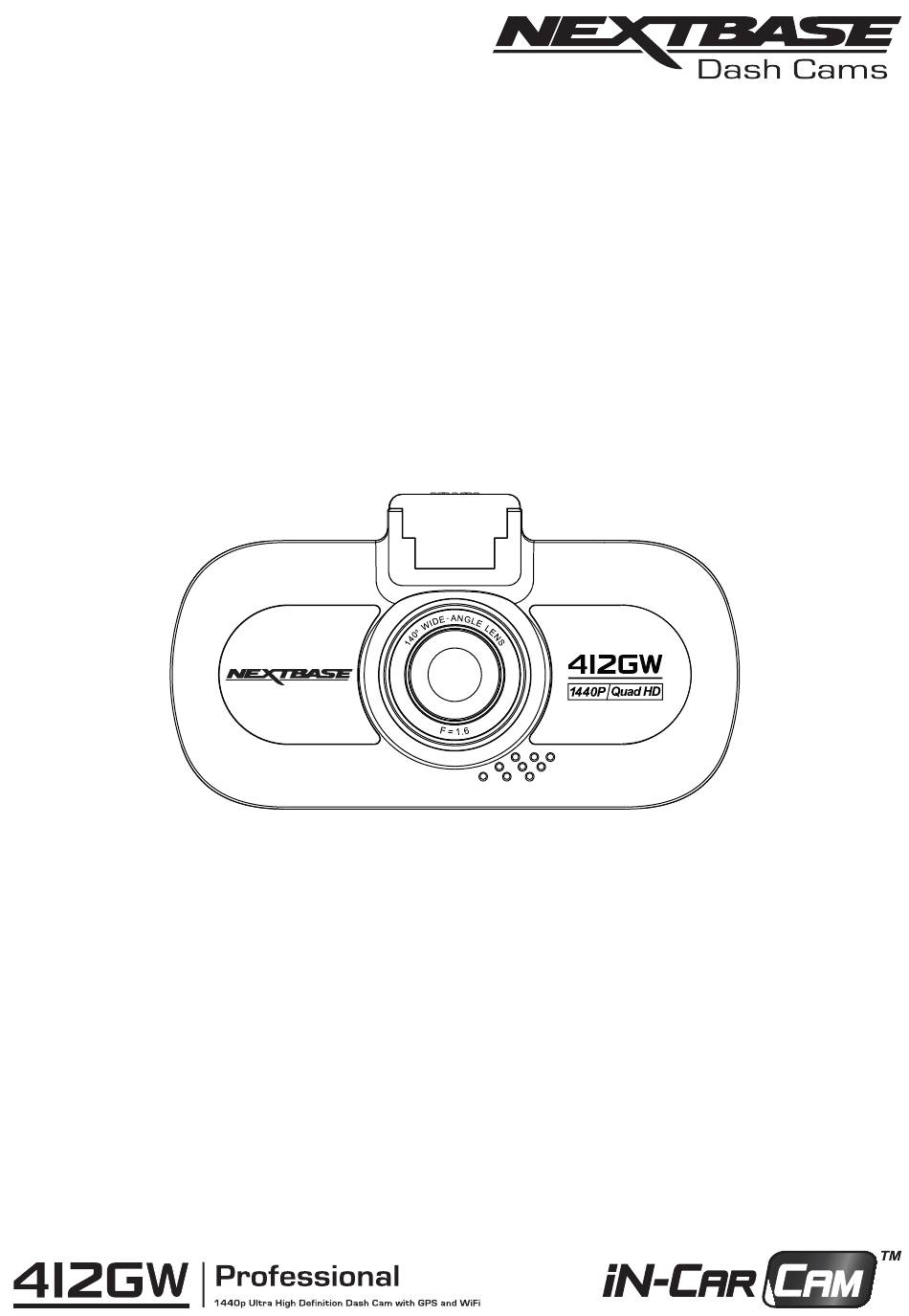

  • Page 1 Instruction Manual...

  • Page 2: Introduction To Using An In-Car Cam

    INTRODUCTION TO USING AN IN-CAR CAM The iN-CAR CAM range of dash cams have been designed specifically with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use.
  • Page 3 1.4 To improve dash board glare, a Nextbase Reflection free lens can be purchased. 2. Tips for stable memory card performance: 2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION TO USING AN IN-CAR CAM ............. TABLE OF CONTENTS ....................PRECAUTIONS ......................CAUTIONS ON USING THIS PRODUCT ..............FCC STATEMENT ......................PRODUCT SPECIFICATION ..................PACKAGE CONTENTS ....................PRODUCT FEATURES ....................POWERED GPS MOUNT ....................CAMERA - PARTS & CONTROLS .................

  • Page 5: Precautions

    PRECAUTIONS Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire. CAUTION: To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so.

  • Page 6: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 7 Contact : Graham Lambert Tel : +44 02920 866429 Email Address : support@nextbase.com 2. Product Info Product Name : Dash Cam Model No. : NBDVR412GW Brand Name : Nextbase 3. Applied Standard Standards E-CFR Title 47 Part 15 Subpart B—Unintentional Radiators: 2017 Report No.
  • Page 8 Company Name: Portable Multimedia Ltd Mailing Address : Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK Contact Person : Graham Lambert Signature: Email Address : support@nextbase.com Tel : +44 02920 866429 Date : 28th March 2018 8. Responsible party in US.

  • Page 9: Product Specification

    PRODUCT SPECIFICATION Model Number / Name NBDVR412GW / NEXTBASE iN-CAR CAM PROFESSIONAL Power Requirements 5V / 1.5A Power Supply 12-24Vdc Car Power Cable (supplied) Fuse Type: 20mm / 2A Output: 5Vdc Sensor Resolution 4M Pixel (4,085,760 Pixel) Lens - Type / Angle / Aperture 6G / 140°...

  • Page 10: Package Contents

    Guide Product appearance may differ slightly to that shown above. PRODUCT FEATURES Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features available with this dash cam. 3.0" LCD Colour Screen LCD screen for ease of use and viewing the playback of recorded videos and photos.

  • Page 11: Powered Gps Mount

    POWERED GPS MOUNT Please see below to identify the parts of the supplied powered mount. Locking lever The locking lever is used to attach and release the window mount to your vehicles windscreen. Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the windscreen (in a suitable location) push the lever to lock the mount in place.

  • Page 12: Camera - Parts & Controls

    CAMERA - PARTS & CONTROLS Please see below to identify the parts and controls of your iN-CAR CAM. Front: Mounting point (located under dust cover) After removing the dust cover, attach the supplied powered GPS mount here. Camera lens Wide Angle 140°, 6 Element glass lens for optimum picture quality. Speaker Integral speaker for audio playback directly from the iN-CAR CAM.
  • Page 13 CAMERA - PARTS & CONTROLS (CONTD.) Back: Power On / Off Press and hold for 2 seconds to turn on / off the iN-CAR CAM. Up / Microphone Off Press to navigate up within menus and to move to the previous file when in playback mode. Microphone Off: Press to turn off / on the microphone (audio recording), only available whilst in video mode.
  • Page 14 CAMERA - PARTS & CONTROLS (CONTD.) CAMERA - PARTS & CONTROLS (CONTD.) Continued from previous page. Dual colour LED indicator Red = power on Red flashing = recording Blue = battery charging Screen 3.0' LCD colour screen for the viewing of recorded files on the iN-CAR CAM. 10.
  • Page 15 CAMERA - PARTS & CONTROLS (CONTD.) Top: 13. AV Out socket Used to connect your iN-CAR CAM to a television using an AV Cable (sold separately). 14. Microphone Integral microphone for audio recording. 15. DC-IN & USB socket Connect the supplied car power cable or USB data cable here. Note: - Normally the car power cable is connected to the mount when in use, not directly to this socket.
  • Page 16 CAMERA - PARTS & CONTROLS (CONTD.) Sides: 17. HD Output Used to connect your iN-CAR CAM to a television using an HD Cable (sold separately). 18. MicroSD Card slot Insert the MicroSD card here, taking care that the gold contacts are facing towards the back of the iN-CAR CAM.

  • Page 17: In Vehicle Installation

    IN VEHICLE INSTALLATION Please follow the instructions below for first-time installation of the iN-CAR CAM. For day to day use simply remove the camera from the mount as required. Insert MicroSD Card Insert a suitable MicroSD card (Class 10 48/Mbps) in to the iN-CAR CAM, taking care that the gold contacts are facing towards the LCD screen side of the iN-CAR CAM.
  • Page 18 IN VEHICLE INSTALLATION (CONTD.) Attach the mount to the iN-CAR CAM Slide the iN-CAR CAM onto the mount. Once attached magnets within the mount will hold the two parts together. Attach the mount to the windscreen Remove the protective plastic film from the suction cup of the mount. Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to achieve a good contact between the glass and suction cup.
  • Page 19 - Do NOT wire the iN-CAR CAM directly to a 12V supply by cutting the cigarette plug off the end of the cable, or damage will result. - A Nextbase hardwire kit is available from your retailer. This connects directly to the vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav charging.
  • Page 20 IN VEHICLE INSTALLATION (CONTD.) Please read and follow the notes below for the safe operation of your iN-CAR CAM within your vehicle. As per the installation instructions, you must install the iN-CAR CAM so it does NOT obstruct the drivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror.

  • Page 21: First Time Use

    FIRST TIME USE To ensure the set up of this Dash Cam is as quick and simple as possible, there is an easy to follow ‘First Time Use’ menu. This menu is used to set your preferred Language, Country (this defines your time zone) and speed units.

  • Page 22: Video Mode

    VIDEO MODE The key below explains the various information displayed on the screen when your iN-CAR CAM is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below. 2:37 16:04:37 14/10/2015...
  • Page 23 VIDEO MODE (CONTD.) Video Menu The Video Menu is accessed by pressing the MENU button whilst in video mode. Video Menu Resolution Exposure Audio Recording Number / Licence Plate Back Enter MENU The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings.
  • Page 24 VIDEO MODE (CONTD.) Continued from previous page. Video Menu Video Length Parking Mode Rotate Display Number Plate Time & Date Stamp Back Enter MENU Video Length Select the duration of the individual recorded video files. The iN-CAR CAM will continue recording, filling the memory card.
  • Page 25 10. GPS Location Stamp Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files. When a recording is viewed using the supplied NEXTBASE Replay playback software both the GPS co-ordinates and speed information remains available.
  • Page 26 VIDEO MODE (CONTD.) Continued from previous page. Video Menu Dual Files G Sensor Back Enter MENU 12. Dual Files During normal recording there will be two files saved to the SD Card, one will be the full sized High Resolution recording (example: 2560 x 1440) and the other is a Low Resolution recording (848 x 480).

  • Page 27: Photo Mode

    PHOTO MODE Press the MODE button to select Photo mode. The key below explains the information displayed on the screen when your iN-CAR CAM is in Photo mode. 16:04:37 14/10/2015 Mode: indicates the iN-CAR CAM is in Photo mode. Exposure: displays current exposure level setting. Date: current date.
  • Page 28 PHOTO MODE (CONTD.) Photo Menu The Photo Menu is accessed by pressing the MENU button whilst in photo mode. Photo Menu Exposure Time & Date Stamp Back Enter MENU The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings.

  • Page 29: Playback Mode

    PLAYBACK MODE Press the MODE button to select Playback mode, the Dash Cam will display the last recorded file. Dependent on the type of file, the on-screen information and playback functions differ. Video Files: 170419_102024_001_HI 1:39 HH:MM:SS DD/MM/YYYY Mode: indicates the Dash Cam is in Playback mode. File type: indicates whether a video or photo file is being viewed.
  • Page 30 PLAYBACK MODE Photo Files: 170419_102024_001 HH:MM:SS DD/MM/YYYY Mode: indicates the iN-CAR CAM is in Playback mode. File type: indicates whether a video or photo file is being viewed. File number: displays current file number. Time: displays the time that the current image was taken. Date: displays the date that the current image was taken.
  • Page 31 PLAYBACK MODE (CONTD.) Deleting files: Highlight the Delete Files option and press the OK button. Playback Menu Delete Files Protect Files Back Enter MENU This will then give you two options: Delete File Delete ALL Files Delete Files Delete Files Delete File Delete File Delete ALL Files...
  • Page 32 PLAYBACK MODE (CONTD.) Protecting files: Highlight the Protect Files option and press the OK button. Playback Menu Delete Files Protect Files Back Enter MENU This will then give you two options: Protect File Unprotect File Protect Files Protect Files Protect File Protect File Unprotect File Unprotect File...

  • Page 33: Setup Menu

    SETUP MENU Setup Menu The Setup Menu is accessed by pressing the MENU button twice. Setup Menu WiFi Format SD Card Time & Date Timezones / DST Back Enter MENU The default settings have been carefully selected to allow you to use the Dash Cam without the need to change any settings.
  • Page 34 SETUP MENU (CONTD.) Continued from previous page. Setup Menu Language Country Speed Units Screen Saver Back Enter MENU 5. Language Select preferred language. Options: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian Spanish and Swedish Default Setting: English 6. Country Select your current Country, this will then automatically adjust the Time Zone / DST setting to your Time Zone, i.e.
  • Page 35 SETUP MENU (CONTD.) Continued from previous page. Setup Menu Device Sounds Auto Power Off System Info Default Settings Back Enter MENU 9. Device Sounds Turn Off / On the beep sound which is heard when a button is pressed and also mute the startup and shutdown chimes.

  • Page 36: Pc Connection

    - ALWAYS turn Off the Dash Cam before disconnecting from your computer. Update (Windows and Mac) When this option is selected, it is for use with the NEXTBASE Replay 3 Playback software in order to update the Firmware within the Dash Cam to the latest version.

  • Page 37: Tv Connection

    All playback functions of the iN-CAR CAM are available whilst using the Standard Definition output. Please contact your local NEXTBASE dealer for accessory purchases. Note: - An external power supply may be required when viewing recordings via the AV or HD output of the iN-CAR CAM, e.g.

  • Page 38: Trouble Shooting

    TROUBLE SHOOTING PROBLEM SOLUTION The sucker will not stay in Ensure that the protective cover (plastic film) has been removed place upon my windscreen. from the suction pad. Moisten the sucker slightly before affixing upon the windscreen. Ensure that the locking lever is fully open when the sucker is pushed on to the windscreen and then close the lever.
  • Page 39 Restart the PC, as this may be required for the necessary driver to be loaded correctly. Disconnect and reconnect the Dash Cam. Contact NEXTBASE for the required driver. Video files cannot be played. The video files from the iN CAR CAM are in .MOV format and may not be compatible with your PC if suitable playback software is not installed.
  • Page 40 The Codecs upon your PC may not be compatible or the latest with video during playback. standard. Download the latest Codecs from: www.nextbase.com Video has no sound. Ensure that “Record Audio” setting is turned ON within the Video Menu of the Dash Cam.
  • Page 41 When Wi-Fi Mode is turned on the screen of the Dash Cam will display the Network Name and Password. This password is case sensitive. The NEXTBASE Cam Viewer Please uninstall the NEXTBASE Cam Viewer app and re-download app will not open. again from your devices App Store. When I open the NEXTBASE...
  • Page 42 Unresolved issues. Reset the Dash Cam to the Default Settings within the Setup Menu and try again. Should the problem persist call the UK helpline (02920) 866429 or call your local support centre found at www.nextbase.com Alternatively email: support@nextbase.com...
  • Page 43 NBDVR412GW-IM-ENG-R10...
