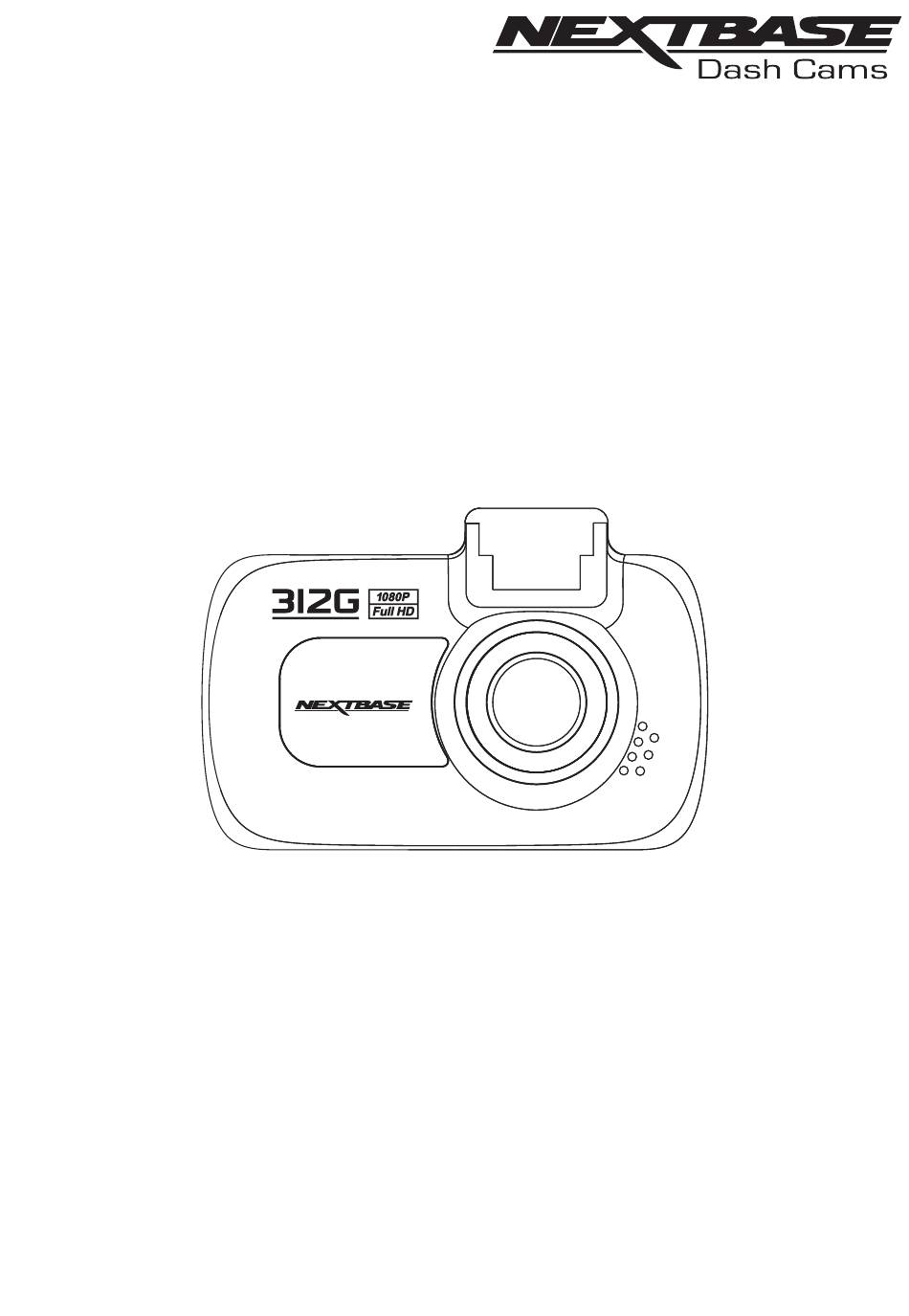

  • Page 1 Instruction Manual...

  • Page 3: Introduction To Using An In-Car Cam

    1.4 To improve dash board glare, a Nextbase Reflection free lens can be purchased. 2. Tips for stable memory card performance: 2.1 Periodically reformat the memory card. Every 2-3 weeks we recommend that you reformat the memory card.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION TO USING AN IN-CAR CAM ............. TABLE OF CONTENTS ....................PRECAUTIONS ......................CAUTIONS ON USING THIS PRODUCT ..............FCC STATEMENT ......................PRODUCT SPECIFICATION ..................PACKAGE CONTENTS ....................PRODUCT FEATURES ....................POWERED GPS MOUNT ....................CAMERA - PARTS & CONTROLS .................

  • Page 5: Precautions

    PRECAUTIONS Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire. CAUTION: To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so.

  • Page 6: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 7 Contact : Graham Lambert Tel : +44 02920 866429 Email Address : support@nextbase.com 2. Product Info Product Name : Dash Cam Model No. : NBDVR312G Brand Name : Nextbase 3. Applied Standard Standards E-CFR Title 47 Part 15 Subpart B—Unintentional Radiators: 2017 Report No.
  • Page 8 Company Name: Portable Multimedia Ltd Mailing Address : Unit 2, Caerphilly Business Park, Van Road, Caerphilly. CF83 3ED. UK Contact person : Graham Lambert Signature: Email Address : support@nextbase.com Tel : +44 02920 866429 Date : 14th May 2018 8. Responsible party in US.

  • Page 9: Product Specification

    PRODUCT SPECIFICATION Model Number NBDVR312G Power Requirements 5V / 1.5A Power Supply 12-24Vdc Car Power Cable (supplied) Fuse Type: 32mm / 2A Output: 5Vdc Sensor Resolution 3M Pixel (3,000,000 Pixel) Lens - Type / Angle / Aperture 6G / 140° / F1.8...

  • Page 10: Package Contents

    Guide Product appearance may differ slightly to that shown above. PRODUCT FEATURES Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features available with this dash cam. 2.7" LCD Colour Screen LCD screen for ease of use and viewing the playback of recorded videos and photos.

  • Page 11: Powered Gps Mount

    POWERED GPS MOUNT Please see below to identify the parts of the supplied powered mount. Locking lever The locking lever is used to attach and release the window mount to your vehicles windscreen. Pull the lever down to prepare the window mount for use. Once the mount is firmly upon the windscreen (in a suitable location) push the lever to lock the mount in place.

  • Page 12: Camera - Parts & Controls

    CAMERA - PARTS & CONTROLS Please see below to identify the parts and controls of your iN-CAR CAM. Front: Mounting point (located under dust cover) After removing the dust cover, attach the supplied powered mount here. Camera lens Wide Angle 140°, 6 Element glass lens for optimum picture quality. Speaker Integral speaker for audio playback directly from the iN-CAR CAM.
  • Page 13 CAMERA - PARTS & CONTROLS (CONTD.) Back: 11 10 Screen 2.7' LCD colour screen for the viewing of recorded files on the iN-CAR CAM. Protect File button Press whilst recording to protect the current file in event of an emergency situation. A beep sound will be heard to confirm that the file was protected successfully.
  • Page 14 CAMERA - PARTS & CONTROLS (CONTD.) Back continued: 11 10 Up / Microphone Off button Press to navigate up within menus and to move to the previous file when in playback mode. Microphone Off: Press to turn off / on the microphone (audio recording), only available whilst in video mode. 10.
  • Page 15 CAMERA - PARTS & CONTROLS (CONTD.) Top: 13. AV Out socket Used to connect your iN-CAR CAM to a television using an AV Cable (sold separately). 14. DC-IN & USB socket Connect the supplied car power cable or USB data cable here. Note: - Normally the Car power cable is connected to the powered mount when in use, not directly to this socket.

  • Page 16: In Vehicle Installation

    IN VEHICLE INSTALLATION Please follow the instructions below for first-time installation of the iN-CAR CAM. For day to day use simply remove the camera from the mount as required. Insert MicroSD Card Insert a suitable MicroSD card (Class 10 48/Mbps) in to the iN-CAR CAM, taking care that the gold contacts are facing towards the LCD screen side of the iN-CAR CAM.
  • Page 17 IN VEHICLE INSTALLATION (CONTD.) Attach the mount to the iN-CAR CAM Slide the iN-CAR CAM onto the mount. Once attached magnets within the mount will hold the two parts together. Attach the mount to the windscreen Remove the protective plastic film from the suction cup of the mount. Select a suitable position for the mount and clean the windscreen with a dry / clean cloth to achieve a good contact between the glass and suction cup.
  • Page 18 - A Nextbase hardwire kit is available from your retailer. This connects directly to the vehicle fusebox and hence leaves your cigarette socket available for Phone / Sat Nav charging.
  • Page 19 IN VEHICLE INSTALLATION (CONTD.) Please read and follow the notes below for the safe operation of your iN-CAR CAM within your vehicle. As per the installation instructions, you must install the iN-CAR CAM so it does NOT obstruct the drivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror.

  • Page 20: First Time Use

    FIRST TIME USE To ensure the set up of this Dash Cam is as quick and simple as possible, there is an easy to follow ‘First Time Use’ menu. This menu is used to set your preferred Language, Country (this defines your time zone) and speed units.

  • Page 21: Video Mode

    VIDEO MODE The key below explains the various information displayed on the screen when your iN-CAR CAM is in Video mode, some icons will only be displayed once the relevant function has been selected within the Video menu, as described below. 16:04:37 14/10/2017 Mode: indicates the iN-CAR CAM is in Video mode.
  • Page 22 VIDEO MODE (CONTD.) Video Menu The Video Menu is accessed by pressing the MENU button whilst in video mode. Video Menu Video Menu Resolution Resolution Exposure Exposure Audio Recording Audio Recording Video Length Number / Licence Plate Back Enter MENU The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings.
  • Page 23 VIDEO MODE (CONTD.) Continued from previous page. Video Menu Video Menu Resolution Video Length Exposure Parking Mode Audio Recording Time & Date Stamp Video Length Speed Stamp Back Enter MENU Video Length Select the duration of the individual recorded video files. The iN-CAR CAM will continue recording, filling the memory card.
  • Page 24 GPS Location Stamp Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files. When a recording is viewed using the supplied NEXTBASE Replay playback software both the GPS co-ordinates and speed information remains available.

  • Page 25: Photo Mode

    PHOTO MODE Press the MODE button to select Photo mode. The key below explains the information displayed on the screen when your iN-CAR CAM is in Photo mode. 16:04:37 14/10/2017 1. Mode: indicates the iN-CAR CAM is in Photo mode. 2.
  • Page 26 PHOTO MODE (CONTD.) Photo Menu The Photo Menu is accessed by pressing the MENU button whilst in photo mode. Video Menu Photo Menu Resolution Exposure Exposure Time & Date Stamp Audio Recording Audio Recording Video Length Back Enter MENU The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings.

  • Page 27: Playback Mode

    PLAYBACK MODE Press the MODE button to select Playback mode, the last file that was saved to the memory card will be shown on screen along with the relevant playback controls. Press the Up or Down buttons to move to the previous or next file respectively. Dependent on the type of file, the on-screen information and playback functions differ.
  • Page 28 PLAYBACK MODE (CONTD.) Photo Files: 170419_102024_001.JPG 1080P 23:55:54 10:20:31 06/01/2015 14/10/2017 : NEXT : NEXT : PREV : NEXT OK : MODE : / II File name: displays current file name. Time: displays the time that the current image was taken. Date: displays the date that the current image was taken.
  • Page 29 PLAYBACK MODE (CONTD.) PLAYBACK MODE (CONTD.) Deleting files: Highlight the Delete Files option and press the OK button. Playback Menu Delete Files Protect Files Back Enter MENU This will then give you two options: Delete File Delete ALL Files Delete Files Delete Files Delete File Delete File...
  • Page 30 PLAYBACK MODE (CONTD.) Protecting files: Highlight the Protect Files option and press the OK button. Playback Menu Delete Files Protect Files Back Enter MENU This will then give you two options: Protect File Unprotect File Protect Files Protect Files Protect File Protect File Unprotect File Unprotect File...

  • Page 31: Setup Menu

    SETUP MENU Setup Menu The Setup Menu is accessed by pressing the MENU button twice. Video Menu Setup Menu Resolution Format SD Card Exposure Time & Date Audio Recording Time Zone / DST Video Length Language Back Enter MENU The default settings have been carefully selected to allow you to use the iN-CAR CAM without the need to change any settings.
  • Page 32 SETUP MENU (CONTD.) Continued from previous page. Video Menu Setup Menu Resolution Country Exposure Speed Units Audio Recording Screen Saver Video Length Device Sounds Back Enter MENU Country Select your current Country, this will then automatically adjust the Time Zone / DST setting to your Time Zone, i.e.
  • Page 33 SETUP MENU (CONTD.) Continued from previous page. Video Menu Setup Menu Resolution Auto Power Off Exposure System Info Audio Recording Keep User Settings Default Settings Video Length Back Enter MENU Auto Power Off Adjust the timing of the Auto Power Off function, this can be used to continue recording in event of loss of power within in the vehicle.

  • Page 34: Pc Connection

    - ALWAYS turn Off the Dash Cam before disconnecting from your computer. Update (Windows and Mac) When this option is selected, it is for use with the NEXTBASE Replay 3 Playback software in order to update the Firmware within the Dash Cam to the latest version.

  • Page 35: Tv Connection

    TV CONNECTION The iN-CAR CAM can be connected to external video equipment, such as a television or a monitor within your vehicle that uses standard RCA inputs. Connect the AV cable (sold separately) between the iN-CAR CAM and your external device, then turn on the iN-CAR CAM.

  • Page 36: Trouble Shooting

    The sound is not synchronised The Codecs upon your PC may not be compatible or the latest with video during playback. standard. Download the latest Codecs from: www.nextbase.com Video has no sound. Ensure that “Record Audio” setting is turned ON within the Video Menu.
  • Page 37 TROUBLE SHOOTING (CONTD.) PROBLEM SOLUTION My iN-CAR CAM shuts down Either the battery has gone flat, or there is no power to the by itself after a while. iN-CAR CAM and the AutoPower Off period has been triggered. No power to my iN-CAR CAM, The cigarette power cable is not working.
  • Page 38 Dash Cam and not into the mount. Unresolved issues. Reset the iN-CAR CAM to the default settings within the Setup Menu and try again. Should the problem persist call the UK helpline (02920) 866429 or call your local support centre found at www.nextbase.com Alternatively email: support@nextbase.com...
