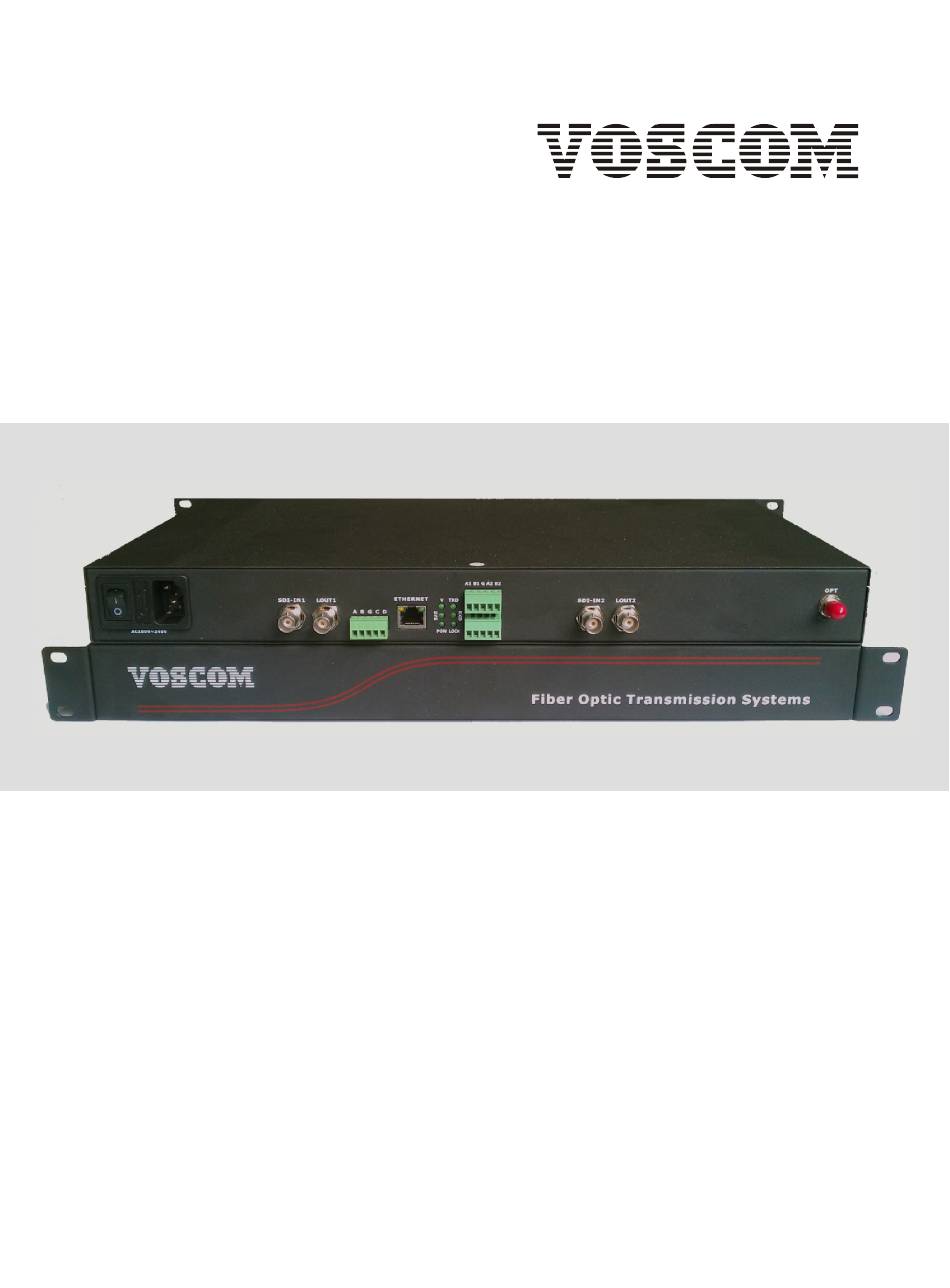

- Page 1 Installation Manual 19inch 1U Rack version Fiber Optic Transmission Systems VOS-1DH3G-ADT/R series 1-Channel Duplex 3G-SDI + 2 Duplex Analog Audio + 1 Duplex RS232/485 Data VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com Website:www.voscom.com... -
Page 3: Product Overview
En_2 Product Overview The VOS-1DH3G-ADT/R provides for the digital transmission of 1-Channel uncompressed Duplex (Bi-Directional) 2.97Gbps 3G-SDI (SMPTE 424M), 1.485Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI (SMPTE 259M) 1080P HD video over fiber, support 2 duplex analog audio, and 1 duplex RS232 /RS485 data, also support one loopback output for local display, and dual outputs for two displays in the remote end. -
Page 4: Transmitter Front Panel
5-PIN Terminal Block Audio Connector: 2-Channel Duplex Analog Audio Input/Output. No Function, No Contact Closure support for this model. Fiber Optic Connector: support FC/PC or ST/PC optical connector. Power supply Connector: AC100V~240V Input TRANSMITTER REAR PANEL Fiber Optic Transmission Systems 19inch, 1U Rack-mount Transmitter. Website:www.voscom.com Website:www.voscom.com... -
Page 5: Receiver Front Panel
5-PIN Terminal Block Audio Connector: 2-Channel Duplex Analog Audio Input/Output. No Function, No Contact Closure support for this model. Fiber Optic Connector: support FC/PC or ST/PC optical connector. Power supply Connector: AC100V~240V Input RECEIVER REAR PANEL Fiber Optic Transmission Systems 19inch, 1U Rack-mount Receiver Website:www.voscom.com Website:www.voscom.com... -
Page 6: Data Connection
5 Pin Terminal Block Receiver (Data) : 1-Channel Duplex Rs232/Rs485 Data (Input/Output) Input/Output Conect Data Rs485+(A) Input/Output Conect Data Rs485-(B) Input/Output Conect Ground (GND) Input/Output Conect Data Rs232 TXD Input/Output Conect Data Rs232 RXD 5 Pin Terminal Block Website:www.voscom.com Website:www.voscom.com... -
Page 7: Audio Connection
5-Pin Terminal Block Receiver (Audio) 2-Channel Duplex Audio (Input/Output) Output 1st-Channel Audio Output Output 2nd-Channel Audio Output Input/Output Conect all GND to this PIN A3 B3 G A4 B4 Input 1st-Channel Audio Input Input 5-Pin Terminal Block 2nd-Channel Audio Input Website:www.voscom.com Website:www.voscom.com... - Page 8 En_7 Panel & Cable Connection 3G-SDI TRANSMMITTER A1 B 1 G A2 B2 SDI-OUT4 LOUT1 ETHERNET SDI-OUT3 SDI-IN1 SYS RXD AC100V~240V POW LOCK A3 B 3 G A4 B4 Power Supply Display Duplex Data 3G/HD-SDI Source with PTZ Mount Display Display 3G-SDI Output 3G-SDI Output 3G-SDI RECEIVER...
-
Page 9: Stand-Alone Installation
NOTE: Before mounting the VOS-1DH3G-ADT transmitter/ VOS-1DH3G-ADR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Standard 19inch 1U Rack: 483mm x 250mm x 44.5mm Website:www.voscom.com Website:www.voscom.com... -
Page 10: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 11 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 12: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 13 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 14 Power Adapter User Manmual Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact with our sales staff.
- Page 15 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
