- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-48000FT/R series 48-Channel Video Fiber Optic Transmission VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com... -
Page 3: Product Overview

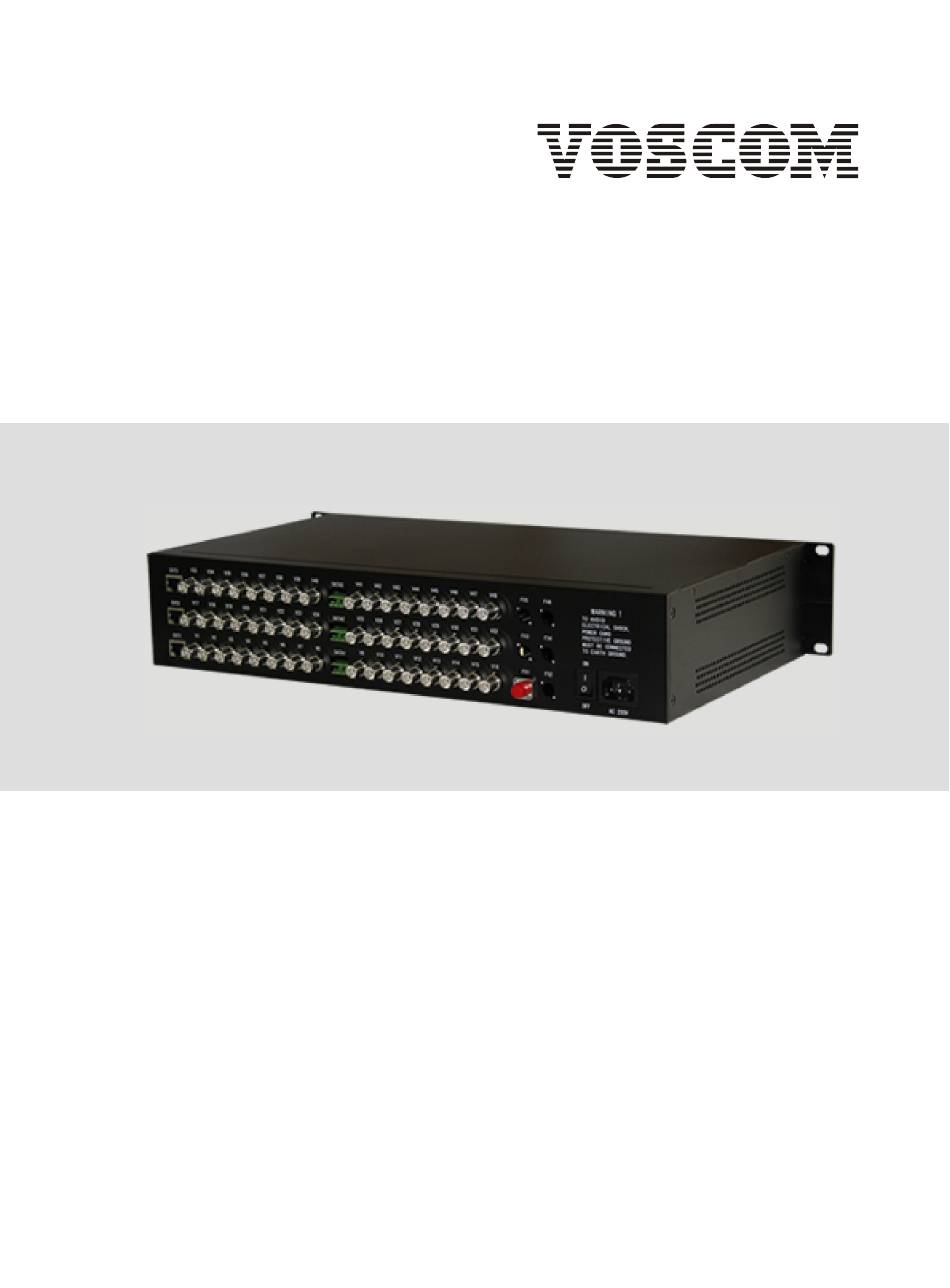

En_2 Product Overview The VOS-48000FT/R can transmission 48-Channel Video video for fixed camera over optical cable, this model only support single-mode. 48 48 Only support Stand-alone 19 inch 2U rack. All units of VOS-48000FT/R can not be used by video card style. Features: •Uncompressed Digital Composite Video over one fiber •Compatible with all PAL, NTSC,SECAM Video Systems... - Page 4 En_3 Panel & Cable Connection Installation Instructions: NOTE1:Digital video optic transmitter and receiver should be used in pairs, one is Transmitter (LED is red), the other is Receiver (LED is green). NOTE2: Avoid simultaneously connecting video signals to both the front BNC and rear BNC of the same channel.Also, since each video channel is factory terminated to 75 ohm, unused BNCs should not be used for loop-through video connections.
-
Page 5: Stand-Alone Installation
All units of VOS-48000FT/R can not be used by video card style. NOTE: Before mounting the VOS-48000FT transmitter/VOS-48000FR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Standard 19inch 2U Rack: 483mm 250mm 89mm Website:www.voscom.com... -
Page 6: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 7 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 8: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 9 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 10 User Manmual Network Cable with RJ-45 connector (If the product with RJ-45 port) Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact...
- Page 11 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
