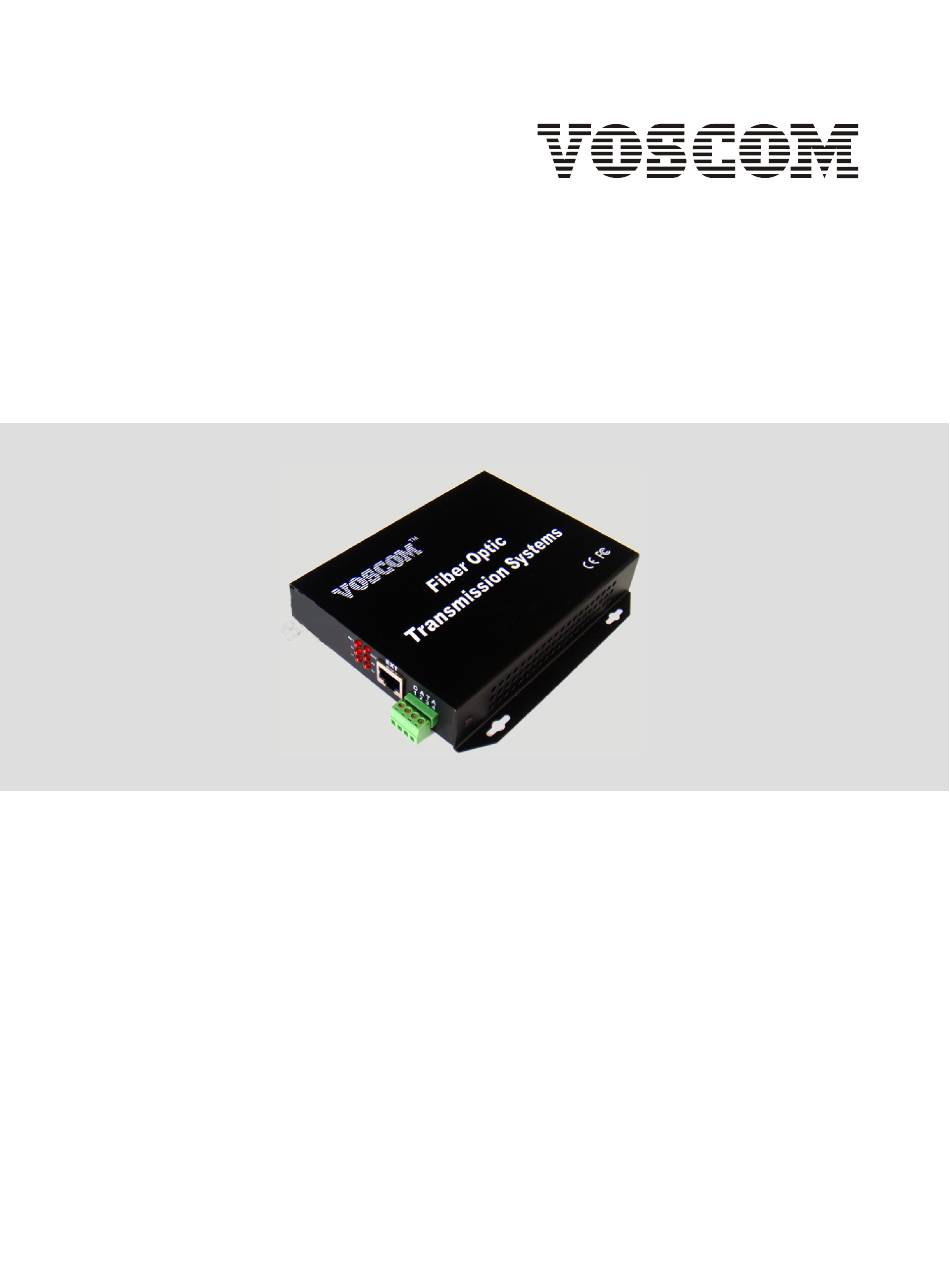

- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-4FOM-SCCT/R series 4-Channel Simplex Contact Closure Transmission VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com... -
Page 3: Product Overview
4 x Simplex Contact Closure 4 x Simplex Contact Closure Fiber optic Cable Dry CC or TTL Data Dry CC or TTL Data VOS-4FOM-SCCR VOS-4FOM-SCCT Receiver Transmitter Note: More detail specification please find in the datasheet or our website: www.voscom.com... -
Page 4: Installation Instructions
None REAR PANEL DC5V A+ A - B+ B - C+ C- D+ D- OPTIC POWER Fiber Optic Connector, FC/PC or ST/PC Stand-alone Power supply Connector, DC5V 2A Input. Terminal Block Connector, contact closure input (Transmitter) / output (Receiver). Website:www.voscom.com... - Page 5 Connect CC-1 Output Connect CC-1 A+ A - B+ B - C+ C - D+ D - Output Connect CC-2 Output Connect CC-2 Output Connect CC-3 Output Connect CC-3 Output Connect CC-4 8 Pin Terminal Block Output Connect CC-4 Website:www.voscom.com...
-
Page 6: Stand-Alone Installation
NOTE: Before mounting the VOS-4FOM-SCCT transmitterand VOS-4FOM-SCCR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Stand-alone Mounting Size: 142mm x 107mm x 25mm Website:www.voscom.com Website:www.voscom.com... -
Page 7: Rack Mount Installation
19 inch 4U,14 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards. Support one slide-in power supply AC100V~AC240V VOS-CH06: 19 inch 6U,16 video card slots, suit for 1-ch,2-ch,4-ch,8-ch(two slots)video cards. Support two slide-in power supply AC100V~AC240V, one for redundancy. Typical Configurations: Website:www.voscom.com... -
Page 8: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 9 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 10: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 11 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 12 User Manmual Network Cable with RJ-45 connector (If the product with RJ-45 port) Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact...
- Page 13 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
