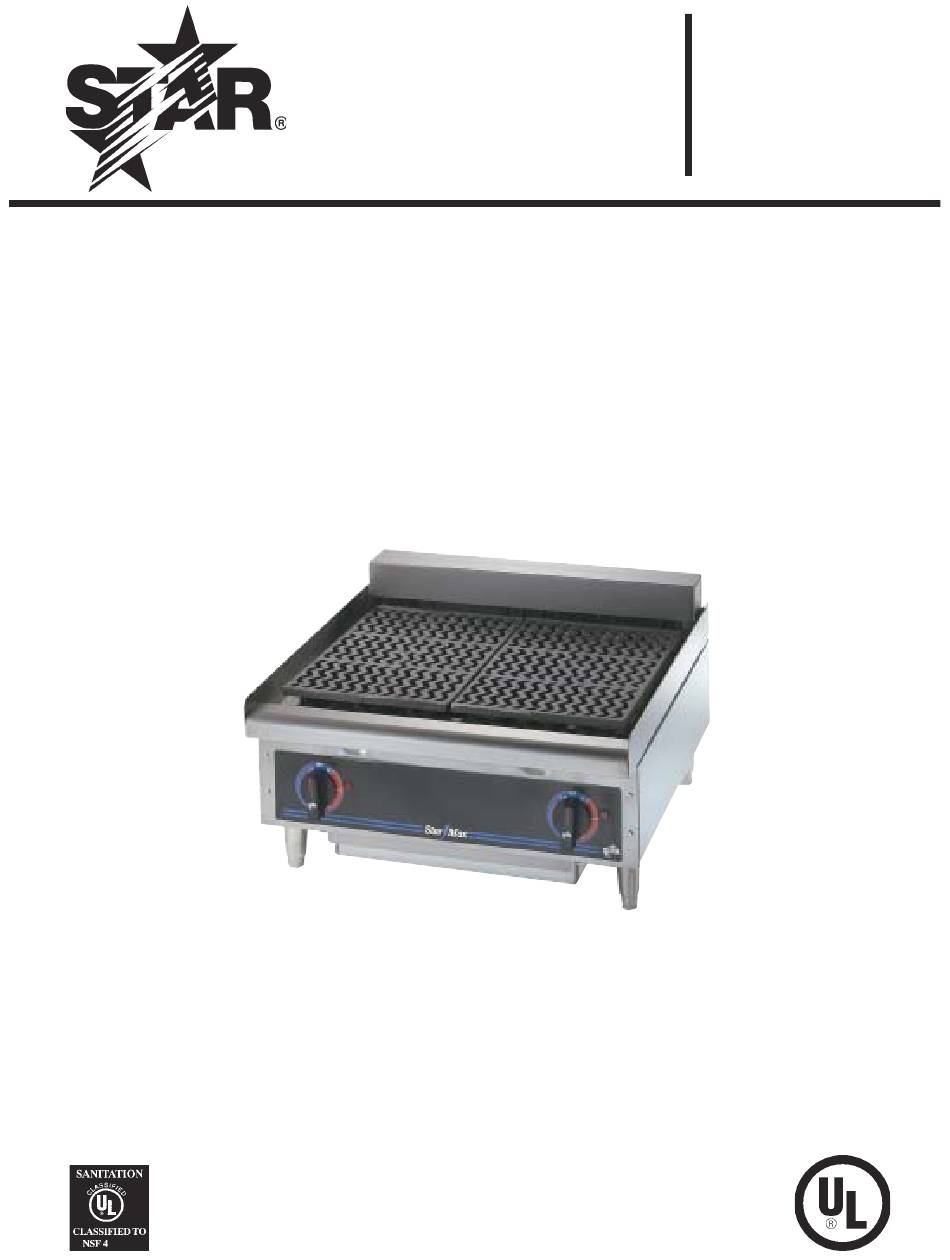

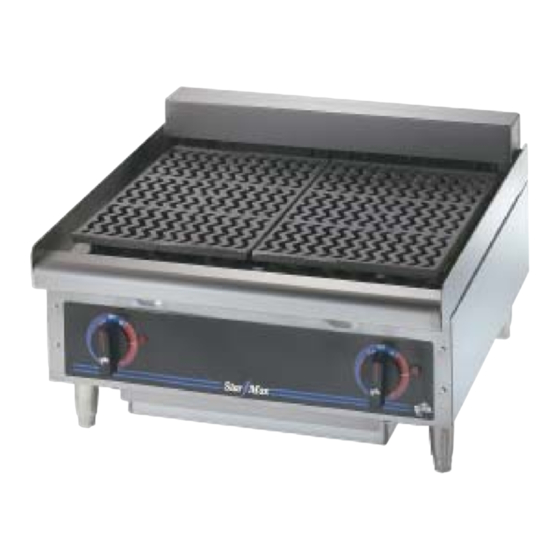

- Page 1 Star Manufacturing Installation International Inc. Operating 10 Sunnen Drive Instructions St. Louis, MO 63143 Phone: (314) 781-2777 2M-Z6392 Rev. A 3/6/03 Fax: (314) 781-3636 ELECTRIC COUNTER CHAR-BROILER MODELS 8H-5124CZ and 8H-5136CZ Model 5124CZ...
- Page 2 SPECIFICATIONS 8H-5124CZ Type: Infinite Control, 2 Controls, 6.6 KW, 396 sq. in. (2555 sq. cm) Grid Area Weight: Installed - 98 lb. (45 kg); Shipping - 145 lb. (66 kg) Dimensions: 24" W x 25 5/8" D x 14 1/4" H...
- Page 3 SAFETY SYMBOL This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
- Page 4 GENERAL INSTALLATION INSTRUCTIONS CAUTION CAUTION CARE MUST BE TAKEN WHEN OPENING PAN TO PREVENT SPILLING. This equipment is designed and sold for commercial use only by personnel trained and experienced in its 5. The charbroiler is constructed of high quality, operation and is not sold for consumer use in and modular grates that are also readily removable for around the home nor for use directly by the general...
- Page 8 PARTS LIST 3/6/03 Rev. A EFFECTIVE MODELS 8H-5124CZ and 8H-5136CZ Electric Counter Char-Broilers Number Part Number Number Unit Description and Model Designation 2R-Z3436 KNOB-INFINITE CONTROL 5124CZ/5136CZ H1-Z6330 FRONT PANEL 5124CZ H1-Z6331 FRONT PANEL 5136CZ H1-524031 DRAWER 5124CZ H1-536028 DRAWER 5136CZ...
