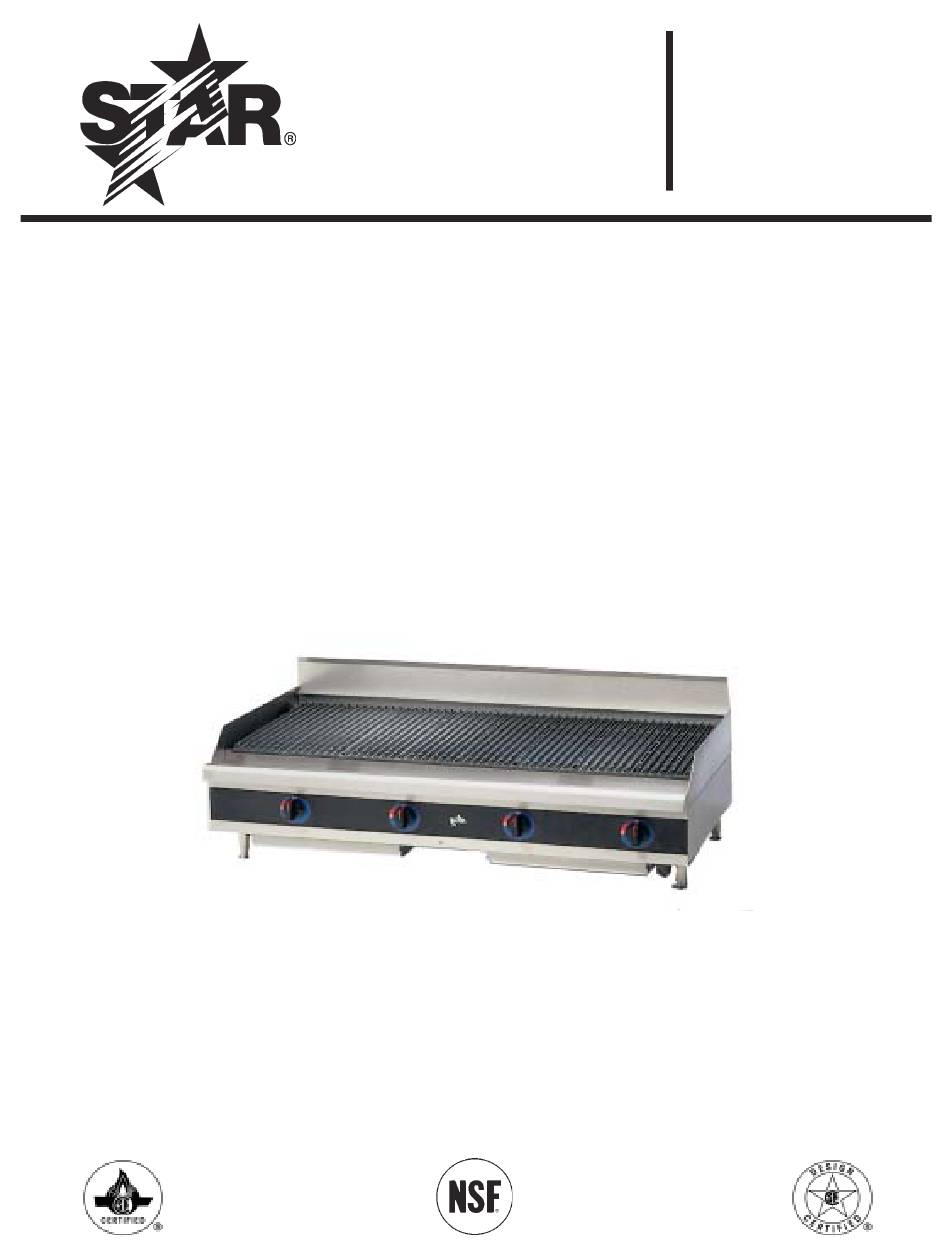

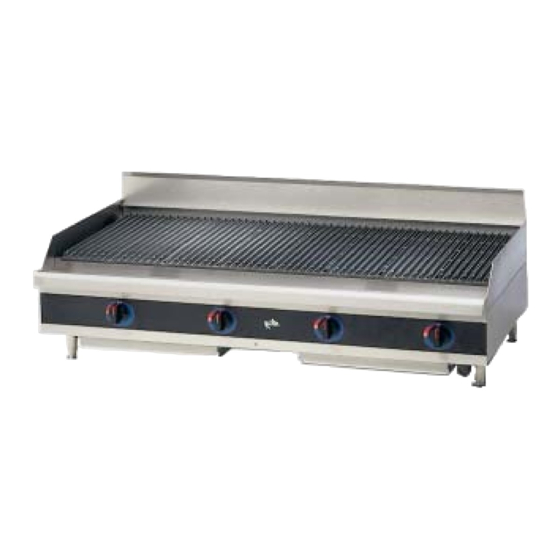

STAR-MAX GAS CHARBROILER
6015CBB
6036CBB
6115RCBB
6136RCBB
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: (314) 781-2777
Fax: (314) 781-3636
MODELS
6024CBB
6048CBB
6124RCBB
6148RCBB
6048 CBB
1
Installation
and
Operating
Instructions
2M-Z3083 Rev. B 3/28/03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6015CBB and is the answer not in the manual?

Questions and answers

Related Manuals for Star Manufacturing International 6015CBB

Summary of Contents for Star Manufacturing International 6015CBB

  • Page 1 Star Manufacturing Installation International Inc. Operating 10 Sunnen Drive St. Louis, MO 63143 Instructions Phone: (314) 781-2777 Fax: (314) 781-3636 2M-Z3083 Rev. B 3/28/03 STAR-MAX GAS CHARBROILER MODELS 6015CBB 6024CBB 6036CBB 6048CBB 6115RCBB 6124RCBB 6136RCBB 6148RCBB 6048 CBB...

  • Page 2: Safety Symbol

    SAFETY SYMBOL This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

  • Page 3: General Installation Data

    WARNING: Improper installation, GAS INPUT TO CHARBROILER: adjustment, alteration, service or maintenance Models 6015CBB/6115RCBB 40,000 BTU/HR, NAT 35,000 BUT/HR, PROP can cause property damage, injury or death. Models 6024CBB/6124RCBB 80,000 BTU/HR, NAT Read the installation, operating and 70,000 BTU/HR, PROP...

  • Page 4: Pilot Lighting Instructions

    GAS PIPING CHECKING FOR GAS LEAKS Gas piping shall be of such size and so installed as to Soap and water solution or other material acceptable provide a supply of gas sufficient to meet the full gas for the purpose, shall be used in locating gas leakage. input of the appliance.
  • Page 5 AIR SUPPLY ADJUSTING HEAT PATTERN Provisions for adequate air supply must be provided. It is possible through this arrangement to have a high heat or searing section, while having a low heat finishing OPERATING INSTRUCTIONS or holding section. For the searing operation, set the valves for the section at a position of "HI"...

  • Page 7: Parts List

    PARTS LIST 3/28/03 Rev. B EFFECTIVE Updated 03-08-04 rb 6015CBB, 6024CBB, 6036CBB and 6048CBB Star-Max Gas Lava Rock Charbroiler-15", 24", 36", 48" MODEL Number Part Number Description and Model Designation Number Unit 2R-Z0934 1/2/3/4 KNOB-CONTROL H3-Z3097 FRONT PANEL 6015CBB H3-Z3024...
