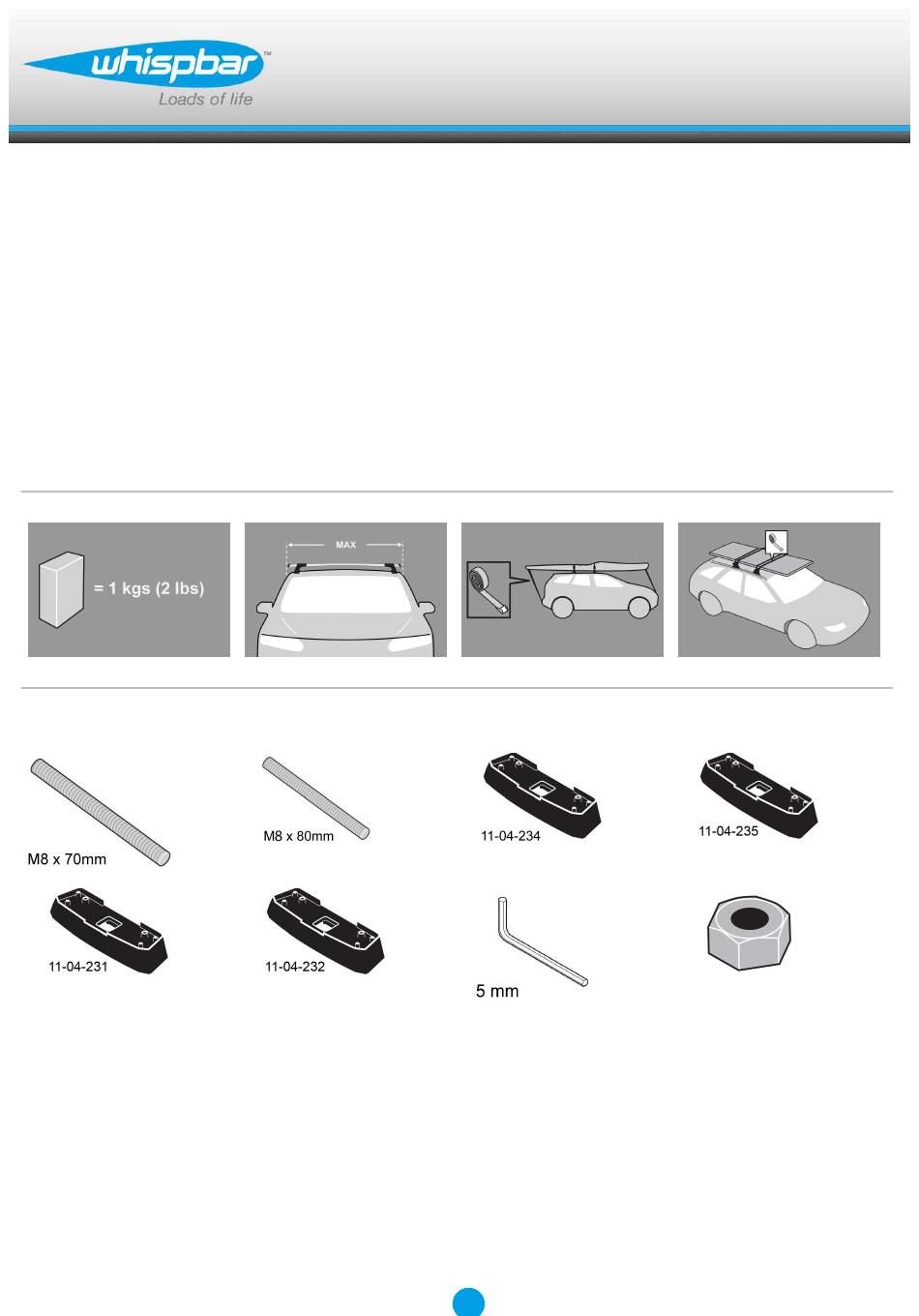

Fitting Instructions for Basic Carrier
Revision No: 1A
x 2
x 1
x 2
x 1
1
K1021
x 1
x 1
K1021W
x 1
x 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the K1021W and is the answer not in the manual?

Questions and answers

Summary of Contents for Whispbar K1021W

  • Page 1 K1021W K1021 Fitting Instructions for Basic Carrier Revision No: 1A...
  • Page 2 K1021 K1021W...
  • Page 3 K1021 K1021W MAX kgs (lbs) Volkswagen Caddy Maxi (3 BAR), 5dr Van 15-+ 115 kgs (253 lbs) 150 kgs (330 lbs) Caddy Maxi (3 BAR), 5dr Van 15-+ 115 kgs (253 lbs) 150 kgs (330 lbs) Caddy Maxi (3 BAR), 5dr Van 15-+...
  • Page 4 K1021 K1021W Caddy Maxi (3 BAR), 5dr Van 15-+ (CN) 100mm 850mm 1935mm 820mm 768mm 745mm 3 15/16ths" 33 7/16ths" 76 3/16ths" 32 5/16ths" 30 1/4ths" 29 5/16ths" Caddy Maxi (3 BAR), 5dr Van 15-+ (EU) 100mm 850mm 1935mm 820mm...
  • Page 5: First Time Installation

    K1021 K1021W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D.
  • Page 6 K1021 K1021W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
  • Page 7 K1021 K1021W Tighten adjusting screw to 2.5 Nm (1.8 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
  • Page 8 K1021 K1021W Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-216 (Pads with Bars)
  • Page 9 K1021 K1021W Fitment Remove fixed-point cover screws with 5mm Hex Key. Attaches to factory-fitted mounting points. Do not use mounting points with "X". Open or remove fixed-point covers. Use the following grubscrew lengths: A = M8 x 55mm B = M8 x 70mm...
  • Page 10 K1021 K1021W Select grubscrews and screw into the vehicle's fixed points. For additional weather protection, apply silicon sealant in and around fixed point hole and grubscrew (sealant not supplied). Place M8 washer over grubscrew. Fit nut to grubscrew. Repeat for all positions.
  • Page 11 K1021 K1021W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
  • Page 12 K1021 K1021W Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
  • Page 13 K1021 K1021W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
  • Page 14: Warranty And Disclaimer

    Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
  • Page 15 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
