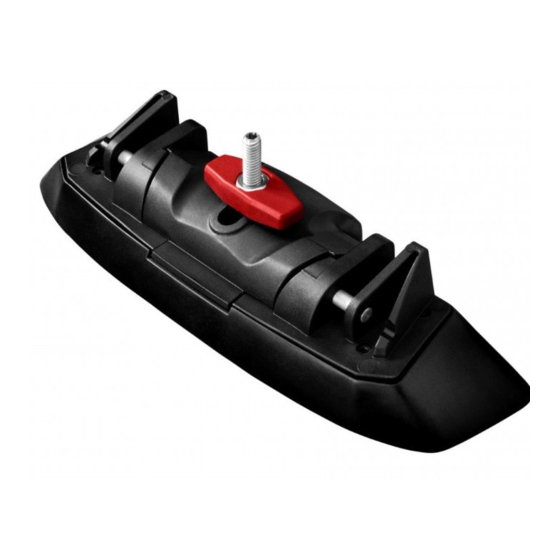

Summary of Contents for Whispbar K1009W

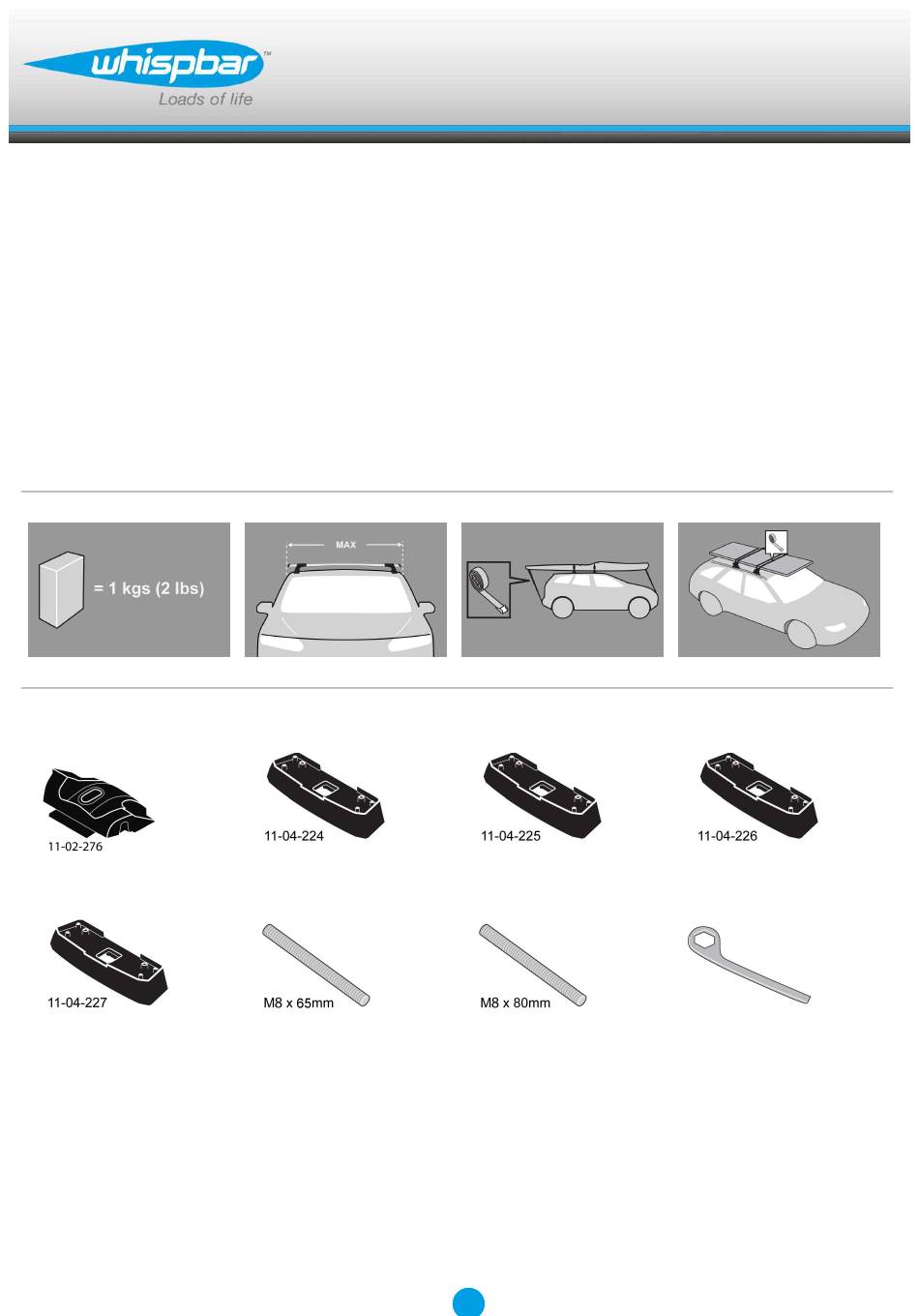

- Page 1 K1009W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K1009W...
- Page 3 Fitting Kit K1009W MAX kgs (lbs) Volkswagen Caddy SWB 3 Bar, 4dr Van 15-+ 100 kgs (220 lbs) 100 kgs (220 lbs) Caddy SWB 3 Bar, 4dr Van Dec 15-+ 100 kgs (220 lbs) 100 kgs (220 lbs) Caddy SWB 3 Bar, 4dr Van Dec 15-+...
- Page 4 Fitting Kit K1009W Caddy SWB 3 Bar, 4dr Van 15-+ (EU) 70mm 835mm 1450mm 818mm 780mm 770mm 2 3/4ths" 32 7/8ths" 57 1/16ths" 32 3/16ths" 30 11/16ths" 30 5/16ths" Caddy SWB 3 Bar, 4dr Van Dec 15-+ (AU) 70mm 835mm...
-
Page 5: First Time Installation
Fitting Kit K1009W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K1009W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 7 Fitting Kit K1009W Tighten adjusting screw to 2 Nm (1.5 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K1009W Refer to the underside of the pad for the part number. It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number:...
- Page 9 Fitting Kit K1009W Fitment Remove fixed-point cover screws with 5mm Hex Key. Use the following grubscrew lengths for each position: A = M8 x 65mm (2 1/2") B = M8 x 80mm (3 1/8") Select grubscrews and screw into the vehicle's fixed points.
- Page 10 Fitting Kit K1009W Place M8 washer over grubscrew. Screw flange nut onto hex bolt. Tighten flange nut using 13mm (1/2") spanner provided. Do not over tighten.
- Page 11 Fitting Kit K1009W Place crossbar foot over grubscrews. Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions.
- Page 12 Fitting Kit K1009W Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com.au www.whispbar.co.nz www.whispbar.co.za CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 13: Maintenance
Fitting Kit K1009W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K1009W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
