- Page 1 K144W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 5C...

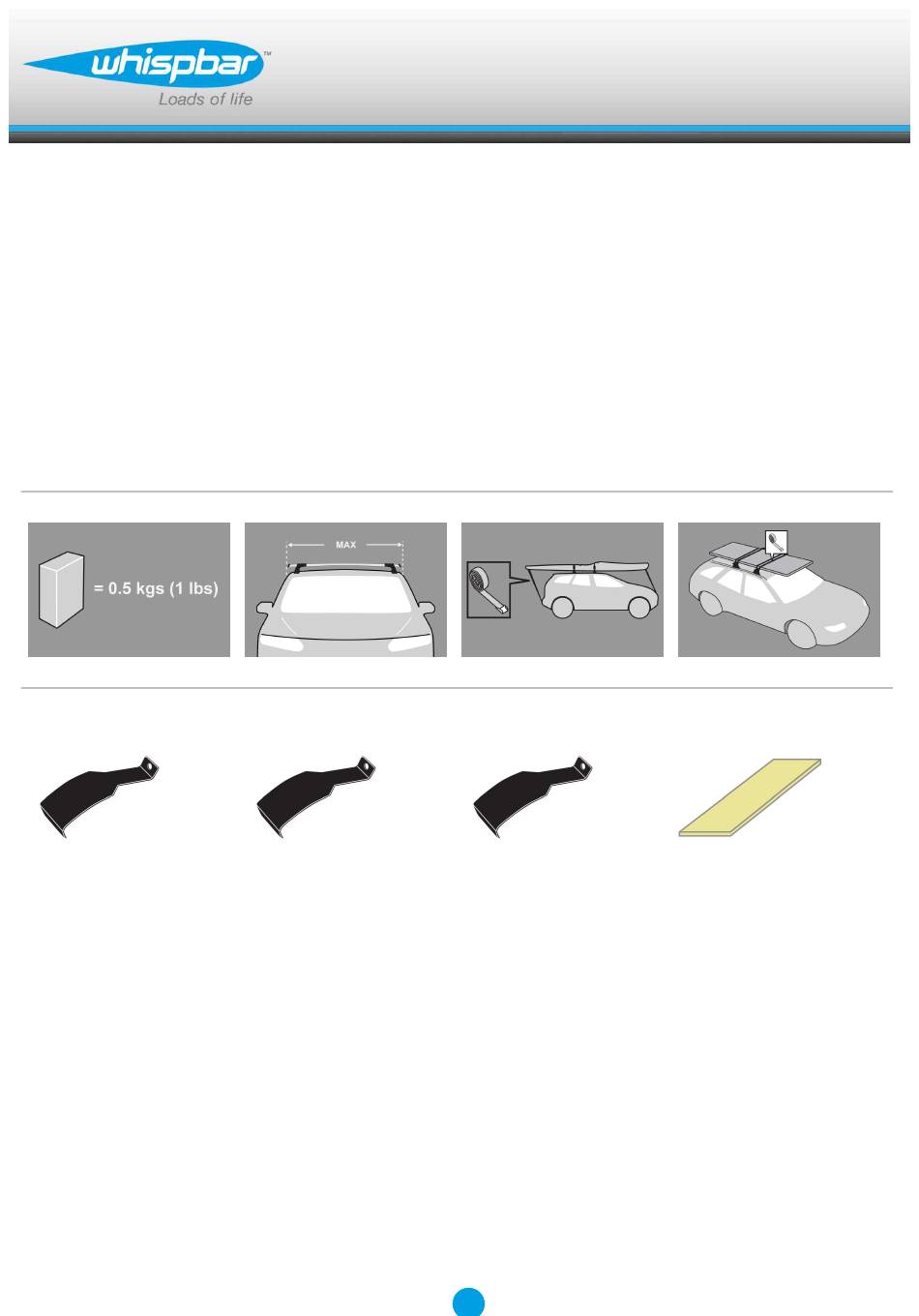

- Page 2 Fitting Kit K144W MAX kgs (lbs) Toyota Corolla , 4dr Sedan 02-06 75 kgs (165 lbs) 75 kgs (165 lbs) Corolla , 4dr Sedan 02-07 75 kgs (165 lbs) 75 kgs (165 lbs) Corolla , 4dr Sedan 03-08 75 kgs (165 lbs)
-
Page 3: First Time Installation
Fitting Kit K144W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K144W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K144W Remove locking screw. Apply protective strip as shown. Trim if required. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = 350A B = 351A C = 352A...

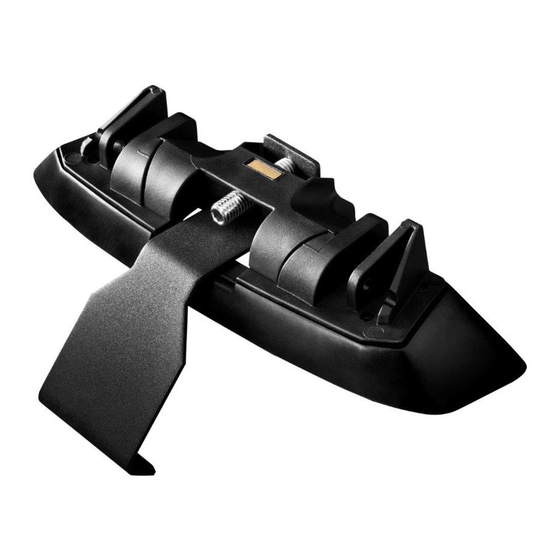

- Page 6 Fitting Kit K144W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K144W Make sure the pad fits into the holes underneath the foot. Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps directly to edge of roof under the...
- Page 8 Fitting Kit K144W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K144W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K144W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K144W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K144W Corolla, 4dr Sedan 02-06 (ZA) -250mm 450mm 766mm 760mm -9 -13/16ths" 17 11/16ths" 30 3/16ths" 29 15/16ths" Corolla, 4dr Sedan 02-07 (EU) -250mm 450mm 766mm 760mm -9 -13/16ths" 17 11/16ths" 30 3/16ths" 29 15/16ths" Corolla, 4dr Sedan 03-08 (US)
-
Page 13: Warranty And Disclaimer
Fitting Kit K144W WARRANTY & DISCLAIMER Yakima Australia Pty Ltd ABN 58 154 440 221 17 Hinkler Court, Brendale QLD 4500 Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply. - Page 14 Fitting Kit K144W Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
