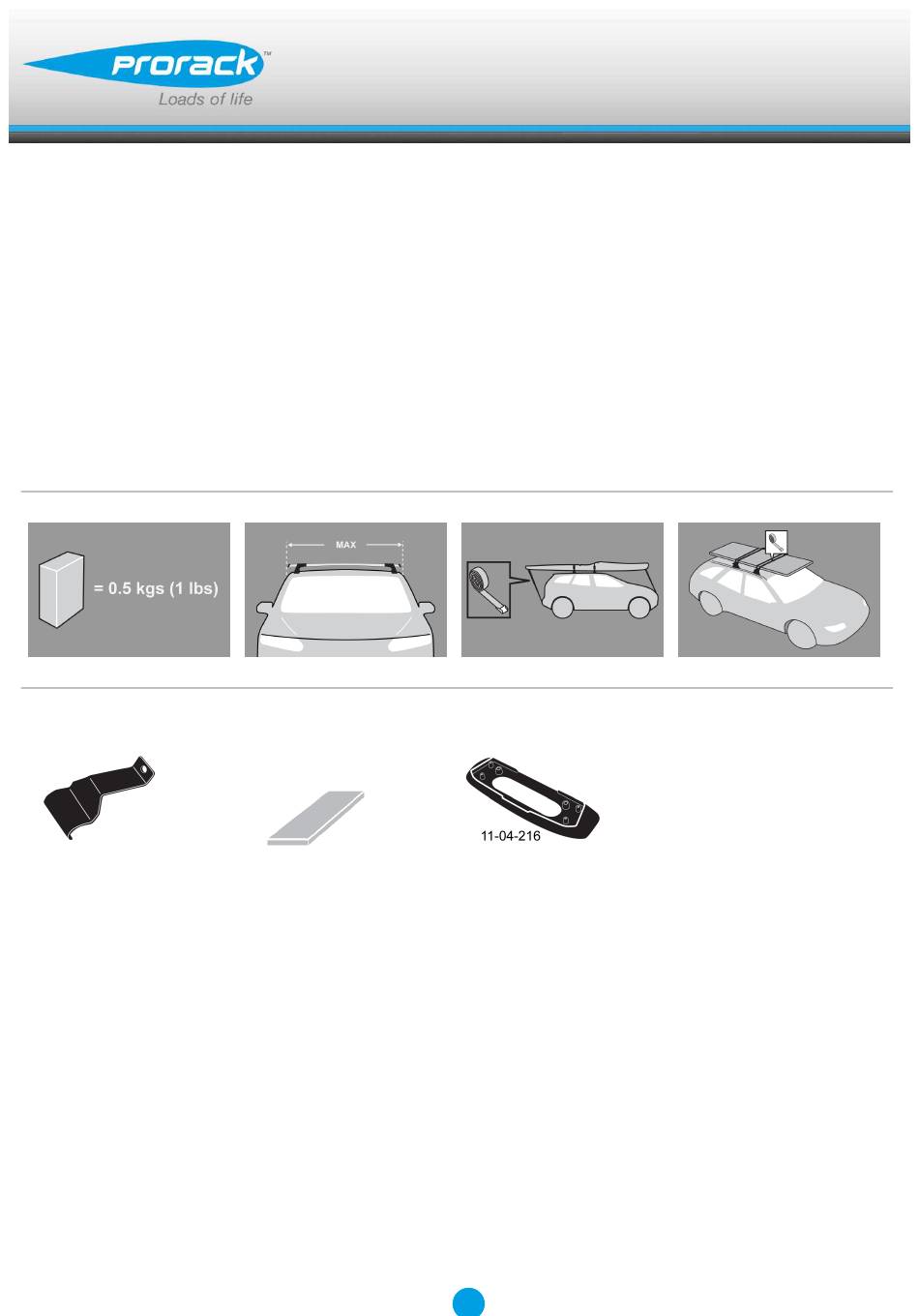

- Page 1 K199 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 9I...
- Page 2 Fitting Kit K199 MAX kgs (lbs) Mazda BT-50 Crew Cab, 4dr Ute 07-12 75 kgs (165 lbs) 75 kgs (165 lbs) BT-50 Dual Cab, 4dr Ute 07-12 75 kgs (165 lbs) 75 kgs (165 lbs) BT-50 Dual Cab, 4dr Ute Nov 06-Oct 11...
- Page 3 Fitting Kit K199 BT-50 Crew Cab, 4dr Ute 07-12 (EU) -270mm 550mm 863mm 857mm -10 -5/8ths" 21 5/8ths" 34" 33 3/4ths" BT-50 Dual Cab, 4dr Ute 07-12 (ZA) -270mm 550mm 863mm 857mm -10 -5/8ths" 21 5/8ths" 34" 33 3/4ths" BT-50 Dual Cab, 4dr Ute Nov 06-Oct 11 (AU)
- Page 4 Fitting Kit K199 Ranger Single Cab, 2dr Ute 06-11 (ZA) -160mm 856mm -6 -5/16ths" 33 11/16ths" Ranger Single Cab, 2dr Ute 06-11 (EU) -160mm 856mm -6 -5/16ths" 33 11/16ths" Ranger Super Cab, 4dr Ute 06-11 (AU) -300mm 400mm 863mm 857mm -11 -13/16ths"...
-
Page 5: First Time Installation
Fitting Kit K199 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K199 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 7 Fitting Kit K199 Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 8 Fitting Kit K199 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pads (supplied with fitting kit) to foot. Make sure the pad fits into the holes...
- Page 9 Fitting Kit K199 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps over rubber door frame mouldings. Please check the front of this manual for information relating specifically to your vehicle.
- Page 10 Fitting Kit K199 Tighten locking screw on both legs evenly, 2.5 Nm (1.8 ft lb). Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 11 Fitting Kit K199 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K199 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K199 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
