- Page 1 K131 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K131 MAX kgs (lbs) Toyota Estima, 5dr MPV 00-Apr 06 60 kgs (132 lbs) 60 kgs (132 lbs) Previa, 5dr MPV 00-06 60 kgs (132 lbs) 60 kgs (132 lbs) Previa, 5dr MPV 00-Apr 06 60 kgs (132 lbs)
- Page 3 Fitting Kit K131 Estima, 5dr MPV 00-Apr 06 (NZ) 200mm 810mm 811mm 776mm 7 7/8ths" 31 7/8ths" 31 15/16ths" 30 9/16ths" Previa, 5dr MPV 00-06 (EU) 200mm 810mm 811mm 776mm 7 7/8ths" 31 7/8ths" 31 15/16ths" 30 9/16ths" Previa, 5dr MPV 00-Apr 06 (NZ)
-
Page 4: First Time Installation

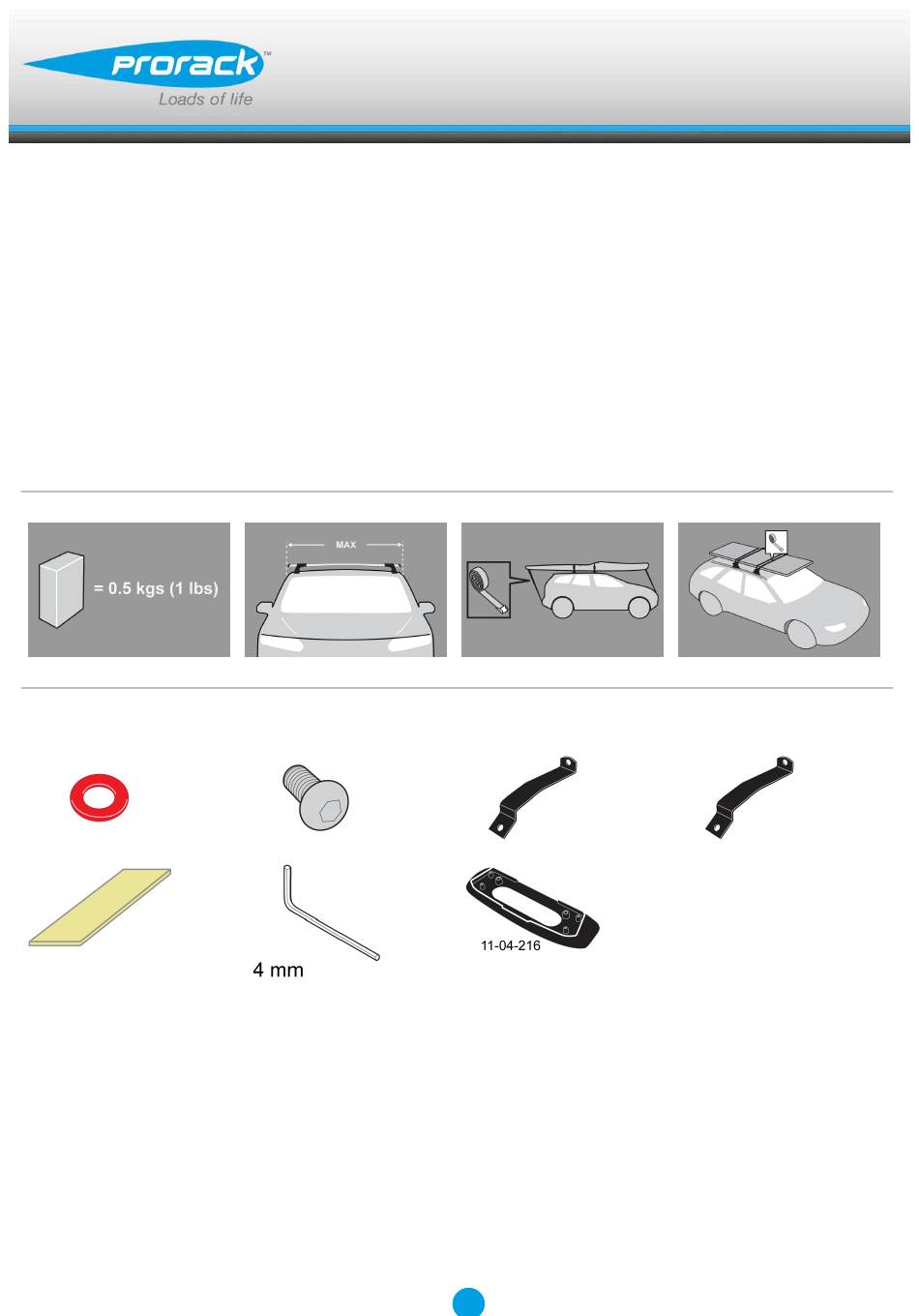

Fitting Kit K131 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K131 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 6 Fitting Kit K131 Remove locking screw. Apply protective strip as shown. Trim if required. It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number:...
- Page 7 Fitting Kit K131 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 8 Fitting Kit K131 Make sure the pad fits into the holes underneath the foot. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Attaches to factory-fitted mounting points under sliding doors Please check the front of this manual for information relating specifically to your vehicle.
- Page 9 Fitting Kit K131 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Place clamp over the mounting hole Fit a fibre washer on each capscrew and attach clamps to the vehicle body using the capscrews. Tighten locking screw on both legs evenly.
- Page 10 Fitting Kit K131 Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K131 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K131 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
