Summary of Contents for Prorack K165

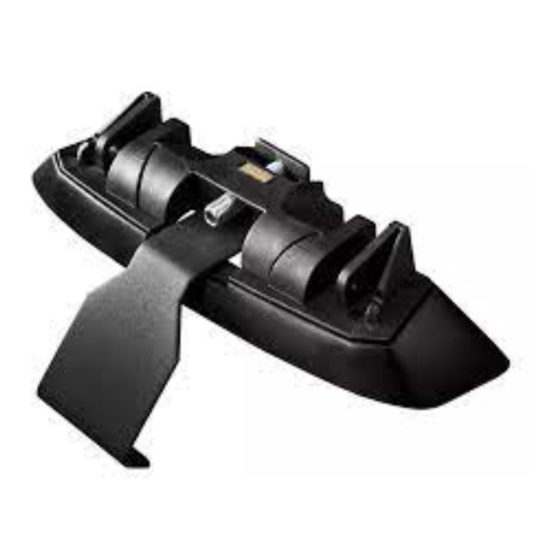

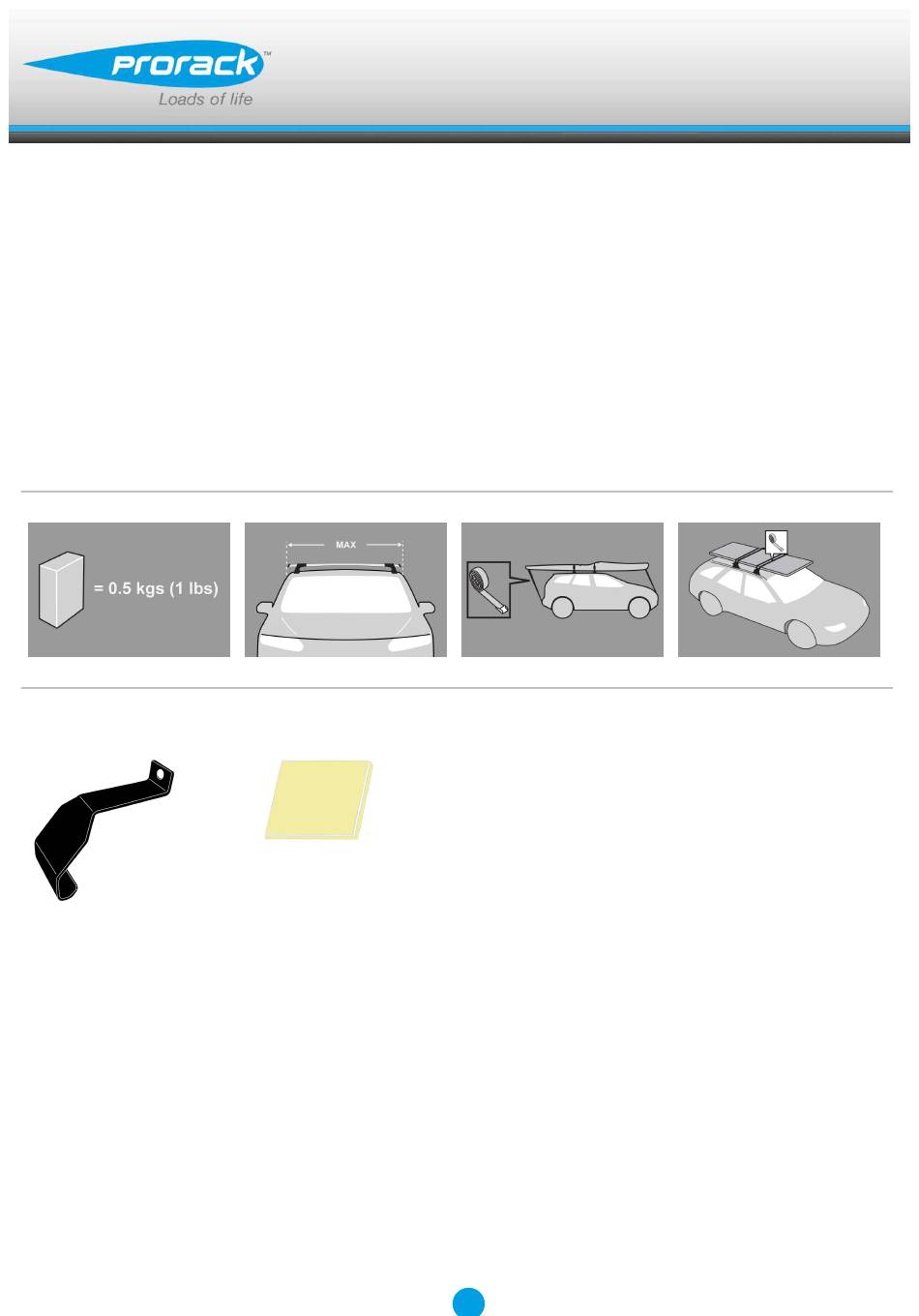

- Page 1 K165 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6C...
- Page 2 Fitting Kit K165 MAX kgs (lbs) Subaru Legacy , 4dr Sedan 04-09 65 kgs (143 lbs) 65 kgs (143 lbs) Legacy , 4dr Sedan 04-09 65 kgs (143 lbs) 65 kgs (143 lbs) Legacy , 4dr Sedan 05-09 65 kgs (143 lbs)
-
Page 3: First Time Installation
Fitting Kit K165 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K165 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K165 Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 6 Fitting Kit K165 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K165 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Clamps over body trim. Please check the rear of this manual for information relating specifically to your vehicle. Clamps over body trim.
- Page 8 Fitting Kit K165 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 9 Fitting Kit K165 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K165 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K165 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
- Page 12 Fitting Kit K165 Legacy, 4dr Sedan 04-09 (EU) -300mm 400mm -11 -13/16ths" 15 3/4ths" Legacy, 4dr Sedan 04-09 (EU) -300mm 400mm 895mm 870mm -11 -13/16ths" 15 3/4ths" 35 1/4ths" 34 1/4ths" Legacy, 4dr Sedan 05-09 (US) -300mm 400mm -11 -13/16ths"...
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
