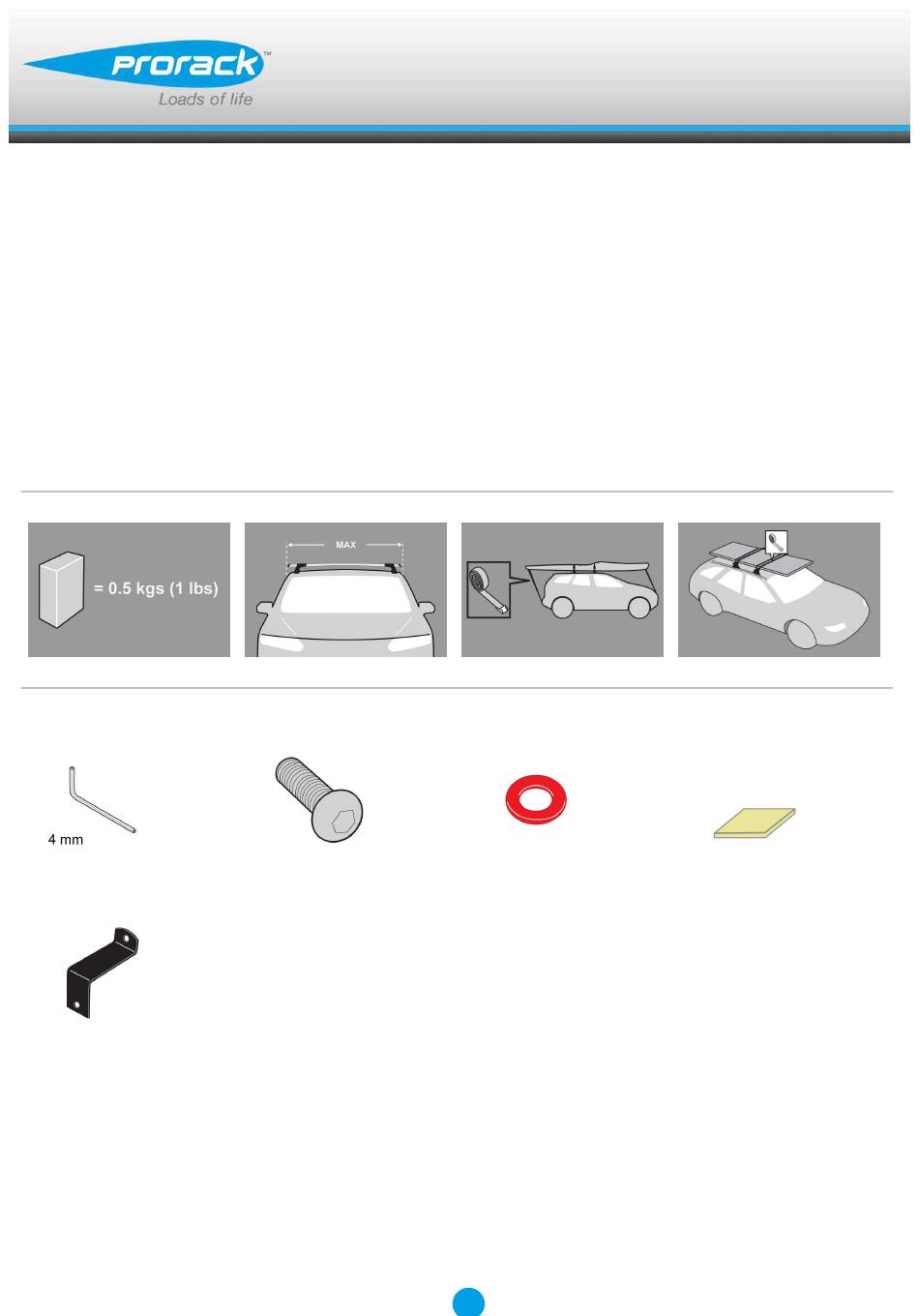

- Page 1 K108 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K108 MAX kgs (lbs) Ford Mondeo , 4dr Sedan 93-00 50 kgs (110 lbs) 50 kgs (110 lbs) Mondeo , 4dr Sedan 93-00 50 kgs (110 lbs) 50 kgs (110 lbs) Mondeo , 4dr Sedan Feb 97-01 50 kgs (110 lbs)
-
Page 3: First Time Installation
Fitting Kit K108 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K108 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is...
- Page 5 Fitting Kit K108 Remove locking screw. Apply protective strip as shown. Trim if required. Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 6 Fitting Kit K108 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K108 Fitment Pull back rubber seal to expose fixed points on vehicle body. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Attaches to factory-fitted mounting points under rubber ditchmoulds Press adjusting screw to adjust the leg positions on the crossbar.
- Page 8 Fitting Kit K108 Tighten adjusting screw to 5 Nm (3.7 ft lb). Place clamp over the mounting hole Fit a fibre washer on each capscrew and attach clamps to the vehicle body using the capscrews. Tighten locking screw on both legs evenly.
- Page 9 Fitting Kit K108 Refit rubber seal over the clamp. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 10 Fitting Kit K108 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K108 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K108 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
