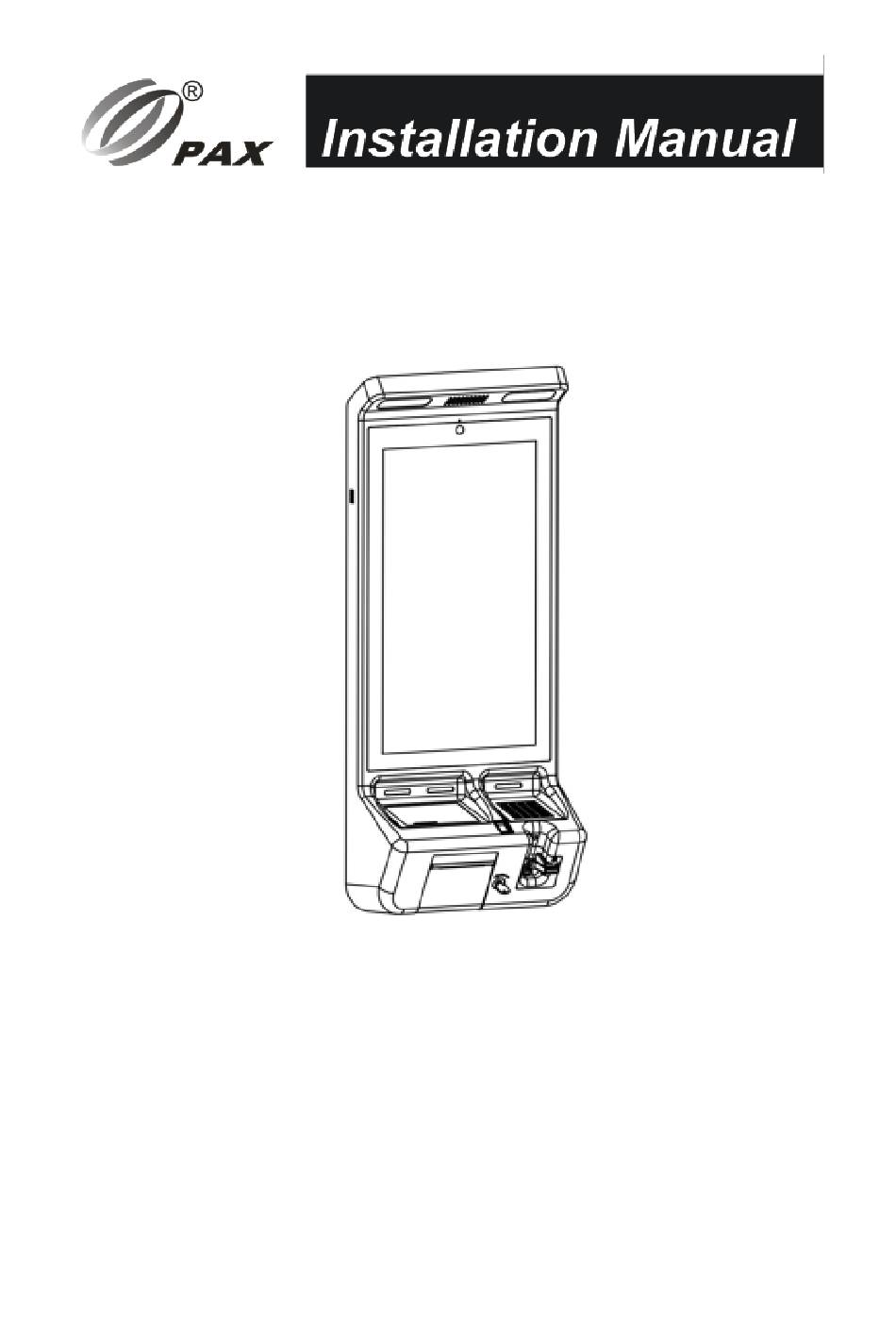

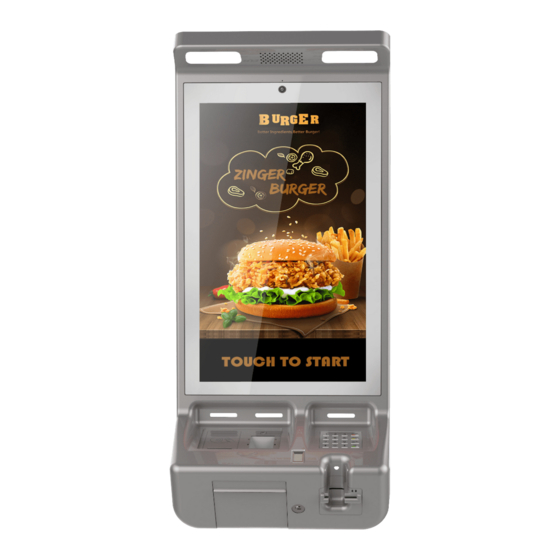

- Page 1 SK800 Smart Kiosk Note: Product images shown may be different than actual product received PAX TECHNOLOGY LIMITED...
-
Page 2: Contents Checklist
1、ContentsChecklist Please check the components after unpacking. If any are missing, please contact the dealer. Part SK800 Smart Kiosk SK800 Wall Bracket Printer Key Thermal Paper Roll M4-12 Combination Screw Expansion Screw Plastic Packaging Power Cable Telephone Handle (optional) Product Manual 2、Product Description... -
Page 3: Specifications
Interface Diagram 3、Operating Instruction · Power on: Plug in the AC power cable and turn on the power button. · Contactless module indicator: Light indication when using the Contactless module. · LED working indicator: Light indication when the device is working at night. ·... -
Page 4: Load Printer Paper
Micro SD card slot(Support maximum of 128GB) x 1 Peripheral Ports: RJ45 (LAN) x1 RS232 (DB9)x1 RS485 Half-duplex (RJ-11) x1 HDMIPort(1.4)x1 Power Port x1 Micro USB x1 Note： RJ11 is the RS485 signal, which will not be connected to the public network and is only ... - Page 5 3. Insert the new paper roll into the printer. 4. Pull out the end of the paper so that itextends past the cutting blade, Make surethe paper roll is placed in the direction asshown in the figure below. 5.Close the printer cover, and pull outthe key. Printer will automatically cut offthe extra paper, the paper is changed successfully.
-
Page 6: Install Introduction
6、Install introduction Installation List Part Picture Qty/pcs SK800Kiosk Wall Bracket... - Page 7 M6-50 Expansion Screw M4-12 Combination Screw Installation Steps 1. Use 6pcs expansion screws to fix the bracket on the wall. Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the bracket fixing hole.
-
Page 8: Installation And Usage Tips
3. Use 2pcs M4-12 combination 3screws to attach the machine to the wall bracket at the bottom of the machine. 4. The device installation is completed. 7、Installation and Usage Tips 1) There is no built-in battery, and the device can only be powered by the power adapter. 2) Avoid exposing the device in overheated, humid, dusty, or strong electromagnetic environment. -
Page 9: Fcc Regulations
5) If necessary, please contact PAX technical support for assistance with the device. 6) Before using the magnetic stripe /IC/contactless card, check if there is any suspicious person nearby, if so, pay attention to guard against theft. 8、FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 10 l'appareil ne doit pas produire de brouillage, et l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device and its antenna(s) must not be co-located or operating in conjunction with any ...
- Page 11 - The equipment is only suitable for mounting at heights≤2m Moving parts Keep body parts away from moving parts Hereby, PAX Computer Technology (Shenzhen) Co., Ltd. declares that the radio equipment type SK800 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address：...
