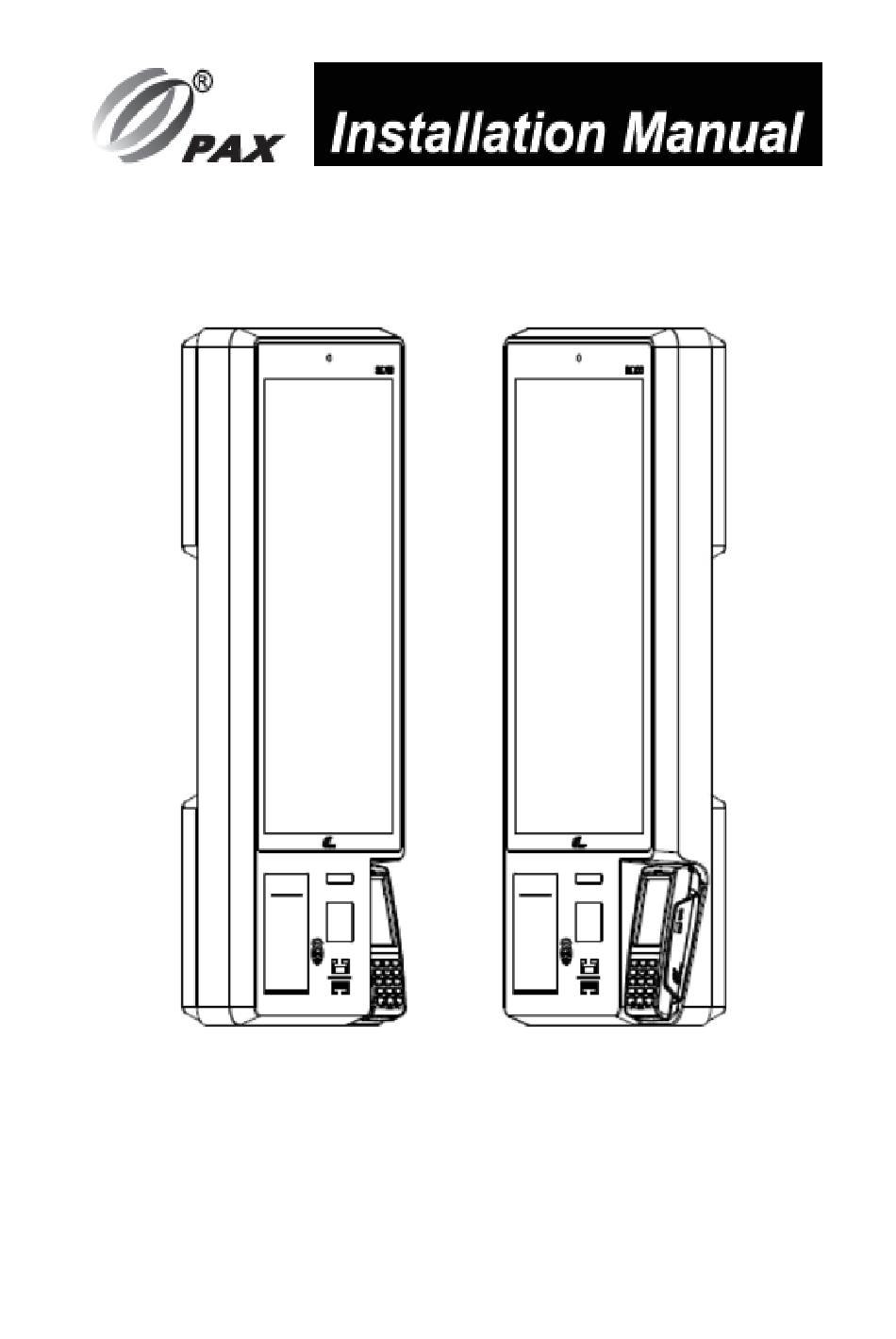

- Page 1 SK700 Smart Kiosk Note: Product images shown may be different than actual product received PAX TECHNOLOGY LIMITED...
-
Page 2: Contents Checklist
1、ContentsChecklist Please check the components after unpacking. If any are missing, please contact the dealer. Name SK700 Smart Kiosk SK700 Wall Bracket Printer Key Thermal Paper Roll M4-10 Combination Screw Expansion Screw Plastic Packaging Power Cable Quick Setup Guide 2、Product Description... - Page 3 Front View Interface Diagram 3.Operating Instruction · Power on: Plug in the AC power cable, press and hold the Power button for...
-
Page 4: Payment Options
threeseconds until the boot animation appears. Power off: Press and hold the Power button for threeseconds until the shutdown menu displays. Select Power off. Theterminal turns off after a few seconds. 4. Payment Options Insert magnetic stripe card into card slot and push to the end with magnetic stripe Magnetic stripe card ... -
Page 5: Load Printer Paper
When the scan indicator is on, hold your QR code & bar code device in front of the scan Scan window to scan code. 5、Load Printer Paper 1. Insert the key into the keyhole and turn it counterclockwise to open printer cover. - Page 6 2. Completely open the printer cover. 3. Insert the new paper roll into the printer.
- Page 7 4. Pull out the end of the paper so that itextends past the cutting blade, Make surethe paper roll is placed in the direction asshown in the figure below. 5.Close the printer cover, and pull outthe key. Printer will automatically cut offthe extra paper, the paper is changed successfully.
-
Page 8: Wall-Mounted Installation
6、Wall-mounted Installation Part Picture Qty/pcs Parts List SK700Kiosk Wall Bracket... - Page 9 M6-50 Expansion Screw M4-10 Combination Screw 1. Use 6pcs expansion screws to fix the bracket on the wall. Installation Steps Use an 8.0 mm diameter drill bit to drill holes in the wall according to the position of the bracket fixing hole.
- Page 10 4) Do not insert or unplug any part of the device while it is powered on. Otherwise, it may cause damage to the internal circuit. 5) If necessary, please contact PAX technical support for assistance with the device. 6) Before using the magnetic stripe /IC/contactless card, check if there is any suspicious...
- Page 11 person nearby, if so, pay attention to guard against theft. FCC compliance statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. PAX TECHNOLOGY LIMITED reserves the right to change product technology specifications without notifying. PAX TECHNOLOGY LIMITED Manufacturer: PAX Computer Technology (Shenzhen) Co.,Ltd.
