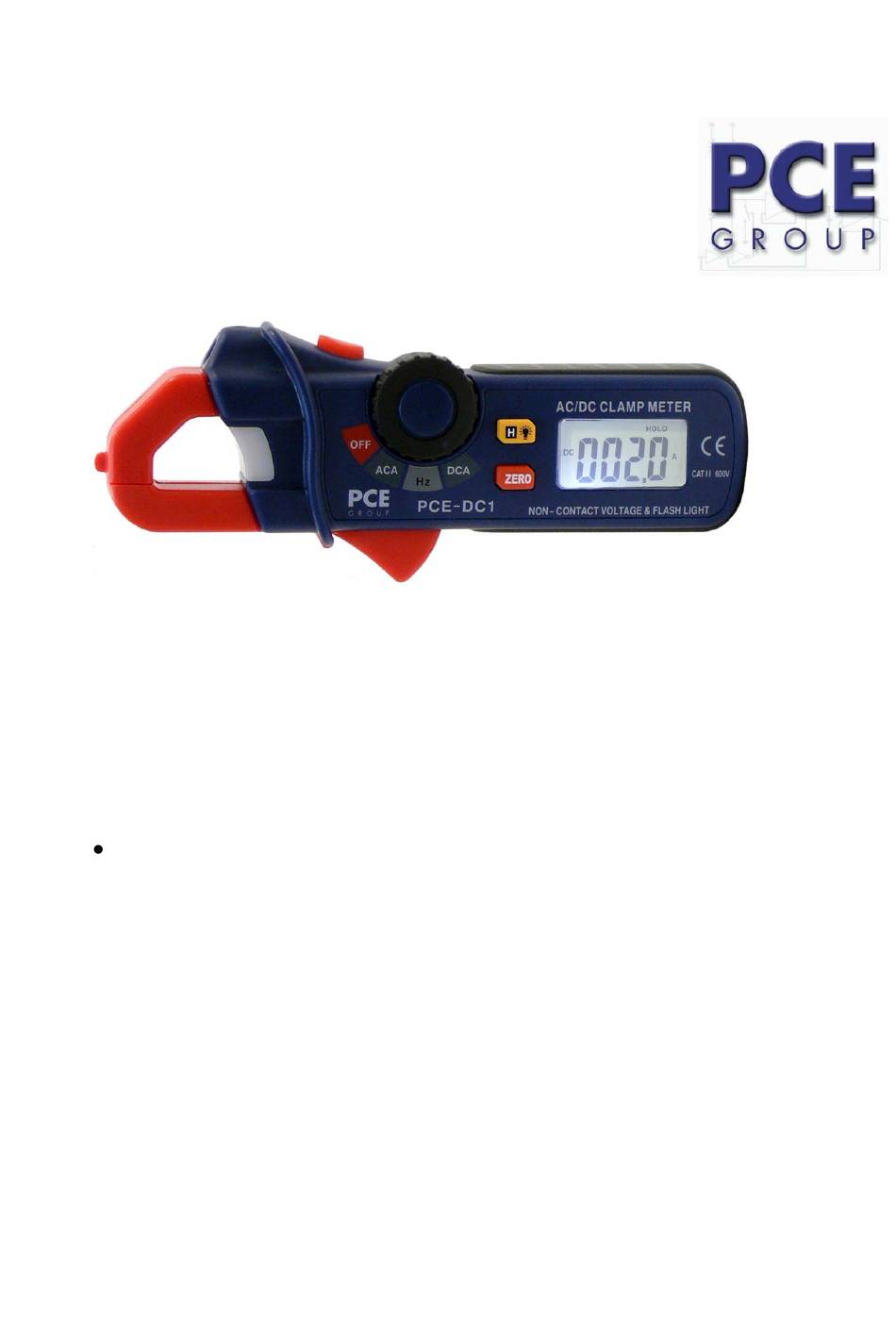

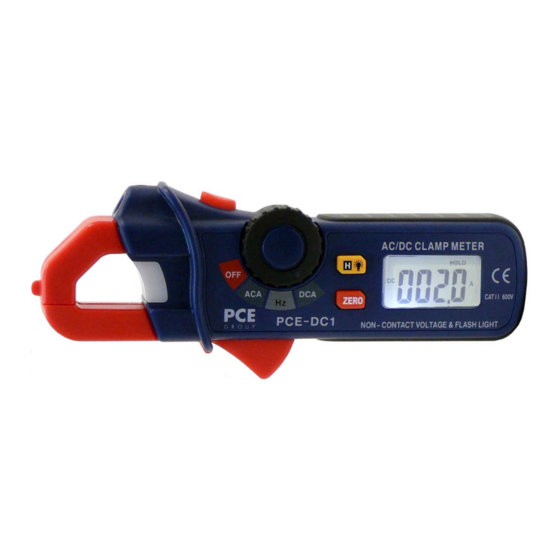

200A AC/DC Mini Clamp-on Meter
Features
• 3-2/3 digit (2400 count) LCD display
• White LED backlight
• Built-in non-contact AC voltage detector plus flashlight
• Frequency measurement 40Hz to 1kHz
• Autoranging with auto power off
• 0.7" (18mm) Jaw opening
Specifications
General Specifications
Display
Polarity
Current sensor
Overload indication
DCA zero adjust
Display rate
Battery
Low Battery indication
Auto OFF
Operating conditions
Storage conditions
Altitude
Operating Instruction
PCE-DC 1
3-2/3 (2400 count) Digit LCD with white LED backlight
Minus sign ( - ) indicates negative polarity
Hall effect sensor type
"OL" displayed on the LCD
One touch zero key
2 readings/second, nominal
Two 1.5V AAA batteries
"BATT" displayed on the LCD
approx. 7 minutes
º
º
º
º
32
F to 86
F (0
C to 30
C) 90%RH; 86
º
º
º
to 122
F (40
C to 50
C) 45%RH
º
º
º
- 14
F to 140
F (-30
C to 60
Operate at less than 3000 meters
º
º
F to 104
F (30
º
C); < 90% Relative Humidity
º
º
º
C to 40
C) 75%RH; 104
F
Advertisement
Table of Contents
Related Manuals for PCE Group PCE-DC1
Summary of Contents for PCE Group PCE-DC1
- Page 1 Operating Instruction PCE-DC 1 200A AC/DC Mini Clamp-on Meter Features • 3-2/3 digit (2400 count) LCD display • White LED backlight • Built-in non-contact AC voltage detector plus flashlight • Frequency measurement 40Hz to 1kHz • Autoranging with auto power off •...
- Page 2 Weight 6.2 oz. (175g) including battery Dimensions 164 x 65 x 32mm (6.5 x 2.6 x 1.3”) (HXWXD) Jaw opening 18mm (0.7”) Standards IEC61010 Category II 600V, Range Specifications Function Range Resolution Accuracy (of reading) DC Current 200A 100mA ± (2.8% + 8 digits) AC Current (50/60Hz) 200A 100mA...
- Page 3 Function Maximum Input AC Current 200A DC Current ±200A Frequency 1kHz Operation AC Current Measurements 1) Set the Function switch to the ACA range. 2) Press the jaw trigger and clamp around, fully enclosing a single conductor. Do not allow a gap between the two halves of the jaw. Refer to the diagram at right for the correct way to enclose a single conductor.
- Page 4 Data Hold To freeze the current reading on the LCD, press the “Hold Backlight” key. The word HOLD will appear on the LCD while the meter is in the Data Hold mode. To release the Data Hold function and return the meter to normal operation, press the “Hold Backlight”...
