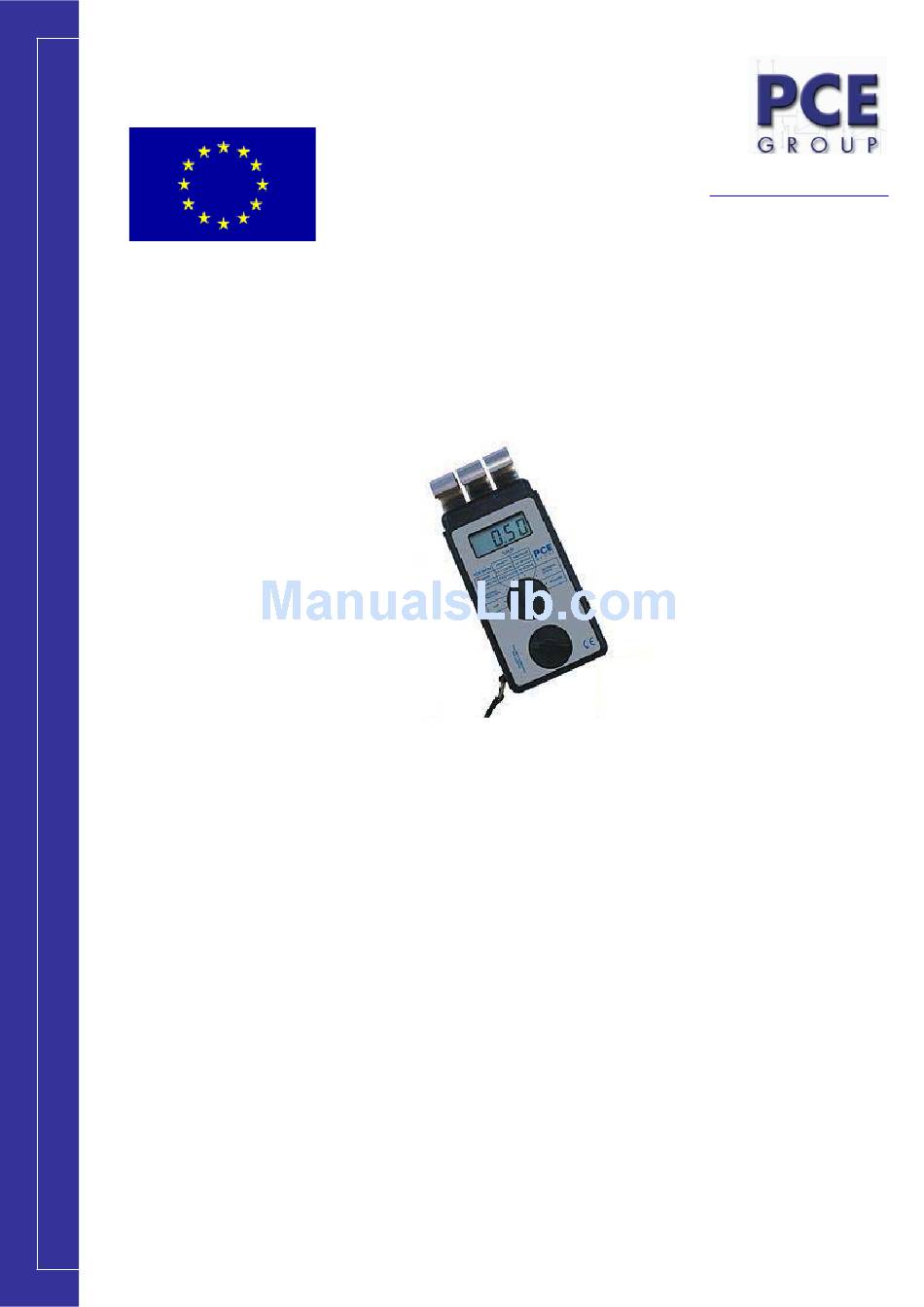

- Page 1 Phone. +44 ( 0 ) 191 377 3398 +44 ( 0 ) 191 377 3357 MANUAL PCE-WP24...
-
Page 2: Table Of Contents
1. Application ...........................3 2. Technical data ........................3 2.1 Wood..........................3 2.2 Building material......................3 Other parameters common for wood and building material ........3 3. Description of controls ......................4 4. Material selection.........................4 5. Wood moisture contents measurements ................4 Preparing the instrument without changes to density and thickness parameters ..4 Preparing the instrument with changes to density or/and thickness parameters ..5 5.3 Measurements .......................5 5.4 Remarks.........................5... -
Page 3: Application
1. Application Moisture Meter PCE-WP24 is designed for quick and non-damaging measurement of moisture contents in wood and building materials. The device measures the dielectric constant (SIC) of the material. The material is penetrated by the electromagnetic field generated by the device. The moisture meter is equipped with knobs for setting the density and thickness of wood and density and thickness of concrete and other building materials. -
Page 4: Description Of Controls
3. Description of controls There are two control knobs on the front panel: upper – to select the operating function, OFF – power off MATERIAL SELECTION – start-up of material (diodes) switching, the moment the knob is moved to DENSITY sets the material type DENSITY –... -
Page 5: Preparing The Instrument With Changes To Density Or/And Thickness Parameters
Preparing the instrument with changes to density or/and thickness parameters Follow these steps: • set the upper knob to MATERIAL SELECTION • when the WOOD diode is lit set the upper control knob to DENSITY and then set the required density using the lower control knob, •... -
Page 6: Density Of Selected Wood Types
5.5 Density of selected wood types Density Wood type (brand name) (g/cm Abacji 0,35 Abura 0,53 Afara white 0,52 Afrormosia 0,65 Alder, Blackalder 0,51 Alerce 0,34 Ash common 0,65 Ash japanese 0,61 Ash white 0,64 Aspen, Poplar 0,45 Balsa 0,08 Basswood, Lime 0,49 Beech... -
Page 7: Building Materials Moisture Contents Measurements (Described With The Example Of Concrete)
Popular Black Populus nigra 0,41 Ramin 0,56 Rubberwood 0,49 Redoak, Northern 0,66 Sapele 0,62 Silver Fir 0,41 Spruce W.H. Alaska pine, 0,44 Teak 0,63 Utile 0,59 Walnut 0,64 Building materials moisture contents measurements (described with the example of concrete) Preparing the instrument without changes to density and thickness parameters Quickly switch the upper control from OFF to SETTINGS CHECK. -
Page 8: Measurements
6.3 Measurements The measurements should be conducted in at least several places. These places should be flat, smooth and clean. The actual result of the measurements is the arithmetic average of all the measurements. Hold the device as shown on fig. 4. Press the electrodes hard against the concrete. Read the result. Fig. -
Page 9: Determining The Density Of Building Materials
6.5 Determining the density of building materials Determining the density of building materials is based on assumption that for a nearly dry building material the result should be almost zero percent. Case A A sample (fragment) of the material is available. It can be removed and dried separately (e.g. brick, ceramic plate, concrete slab). -
Page 10: Service
• all repairs during the guarantee period will be done within 10 days from the date of delivery, • all other repairs will be done within 14 days from the date of delivery. GUARANTEE The manufacturer guarantees the correct functioning of the Moisture Meter PCE-WP24 under normal use for a period of 12 months: Serial number ..........
