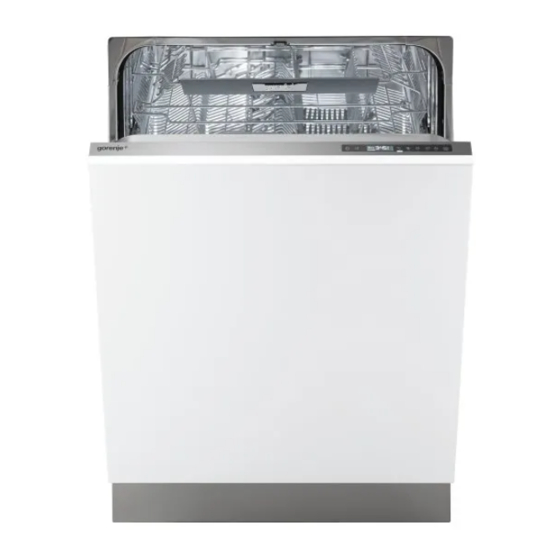

- Page 1 Operating Instructions GDV664XL...
-
Page 2: Table Of Contents
CONTENTS FRONT PANEL TROUBLESHOOTING SAFETY INSTRUCTIONS INFORMATION FOR TEST INSTITUTE BEFORE WASHING FOR THE FIRST TECHNICAL INFORMATION TIME INSTALLATION LOADING THE DISHWASHER SERVICE USING THE DISHWASHER PROGRAMME CHART SETTINGS YOUR NOTES CARE AND CLEANING FRONT PANEL On/Left-on mode TAB (3-in-1/all-in-one 11 Delayed start detergent) Programme selector... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS INSTALLATION GENERAL See the section Installation. Read the operating instructions and keep them in a safe place! CHILD SAFETY Never use the dishwasher for any purpose Always close the door and start the other than that specified in these operating programme immediately after you have added instructions. -
Page 4: Before Washing For The First Time
BEFORE WASHING FOR THE FIRST TIME CLEANING DEAR GORENJE+ CUSTOMER! When cleaning the edge around the door, use We hope that you will have many years of use only a slightly damp cloth. Do not spray water from your new machine. around the edge! Moisture can make its way into The machine has many features. - Page 5 FILL UP THE SALT NOTE! Before you begin using a dishwasher with a water After topping up, it may take a while before the softener, you must fill the salt compartment with symbol goes out. salt. Use large grain salt or special dishwasher salt. TOP UP WITH RINSE AID WARNING! Drying is faster and a better result is achieved if...
-
Page 6: Loading The Dishwasher
LOADING THE DISHWASHER Crystal/Glass ECONOMIC DISHWASHING Place items so that they do not touch each other Run programmes only with a full load during the wash. Use a short programme with the Wait to run a programme until the dishwasher is lowest possible wash temperature. - Page 7 MIDDLE BASKET The middle basket's wire basket with spray pipes is suitable for low objects. The middle basket's utensils basket has space for ladles, whisks, serving cutlery and similar items. Wire basket Foldable tines The foldable tines can be folded up or down to make it easier to load pots, bowls and glasses.
- Page 8 WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments.
-
Page 9: Using The Dishwasher
USING THE DISHWASHER NOTE! ADD DETERGENT Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder or liquid dishwasher detergent instead. 3-in-1/All-in-one detergent Read through the directions for these products carefully. If anything is unclear, contact the detergent manufacturer. - Page 10 Time program Hygiene wash The programme adapts to the specified running This programme is ideal to use where demands time or finish time. With this programme it is on hygiene are extra high, e.g. for baby bottles important to choose a time suited to how dirty and cutting boards.
- Page 11 SELECTING OPTIONS Delayed start To select an option, press one of the option When you select Delayed start, the dishwasher buttons. The field under the button lights when will start 1-24 hours after you press the Start/Stop the option is activated. The available options button.
- Page 12 TIME REMAINING Green Unload. The dishwashing programme is finished. Once you have selected a programme and Standby light for two hours. options, the display indicates how long the programme took the last time it was used. The STOPPING OR CHANGING A remaining time is updated after the water for the PROGRAMME final rinse has been heated.
-
Page 13: Settings
SETTINGS DO AS FOLLOWS TO OPEN THE SETTINGS MENU: First, open the door. Turn off the dishwasher using the On/Left-on mode button (press and hold). Release the button. Press and hold the On/Left-on mode button until the display lights up. Within five seconds, press and hold the Programme selector and the Long dry button. - Page 14 Button press Options Settings Description Buzzer volume The dishwasher uses a buzzer to (Off) indicate when a programme is (Low) finished or when a fault has oc- curred. (High) Press Start/Stop to save the setting value and continue to the next setting. Operation This sound is used to confirm each (Off)
- Page 15 Button press Options Settings Description You can activate this setting when (Off) (3-in-1/all-in-one using 3-in-1/ All-in-one detergent. (On) detergent) The dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If you deactivate this option, the dish- washer will return to ordinary function for all programmes.
- Page 16 Button press Options Settings Description Adjusting the water softener. Water hardness (Soft water) Read off the appropriate setting from the water hardness table below. °dH °fH 10-14 9-11 15-20 12-14 21-25 15-19 26-34 20-24 35-43 25-29 44-52 30-39 53-70 (Hard water) 40-49 71-88 Press Start/Stop to exit the settings menu.
-
Page 17: Care And Cleaning
CARE AND CLEANING COARSE FILTER The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter as necessary. 1 Lift the coarse filter by the handle. 2 Empty the coarse filter. Remember to replace NOTE! The dishwasher must not be used without the Coarse filter... - Page 18 Shut off the water. Remove the plug from the wall socket. Call the service department. NOTE! Do not forget to reinstall the fitted piece. Spray pipes DOOR When cleaning the edge around the door, use only a slightly damp cloth (with a little cleaner if necessary).
-
Page 19: Display
TROUBLESHOOTING Display Type of fault Action Overfilling Call the service department. Water outlet fault See "Water remains in the dishwasher" in the table below. Water inlet fault Check that the water tap is on. Inlet valve leakage Turn off the water tap and call the ser- vice department. - Page 20 Problem Possible causes Action Spots or films on the dishes. The water softener is leaking salt. Check that the salt compartment lid is properly tightened. Other- wise call the service department. Incorrect water softener setting. See the section Settings. Incorrect rinse aid dosage setting. See the sections Before washing for the first time and Settings.
- Page 21 Problem Possible causes Action The dishwasher does not start. The Start/Stop start button has Press and hold Start/Stop until the been pressed for too short a time. display shows (the door open symbol). This indicates that the dishwasher is ready to start. The door is not properly closed.
- Page 22 Problem Possible causes Action The dishes are not dry enough. Drying power too low. Activate the Long dry option. The dishwasher is not fully loaded. Fully load the dishwasher. Rinse aid needs topping up or Top up with rinse add or increase dosage is set too low.
-
Page 23: Information For Test Institute
INFORMATION FOR TEST INSTITUTE ENERGY LABELLING European test stand- EN 60436 ard: Number of standard place settings: Dishwashing pro- Eco wash, High temperature grammes: Connection: Cold water 15 °C Dosages during testing Detergent: In accordance with EN Rinse aid: In accordance with EN 60436 60436 Prewash:... - Page 24 MEASUREMENT OF NOISE LEVEL Test method for noise IEC 60704-2-3 measurement: Enclosure (inside di- w: 604 mm, h: 862 mm, d:570 mm mensions) Cover door w: 600 mm, h: 772 mm (Fitted according to the installation instructions.) Plinth Width: Inside dimensions enclosure, Height: 75 mm (Fitted in line with the cover door.) Other In accordance with IEC 60704-2-3.
-
Page 25: Technical Information
TECHNICAL INFORMATION INFORMATION ON ENERGY LABELLING Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010 Gorenje+ Model designation: GDV664XL Number of standard place settings: Energy efficiency class: Annual energy consumption(AE 270 kWh per year Energy consumption of the standard cleaning cycle(E 0.95 kWh... -
Page 26: Installation
INSTALLATION 1238 [mm] 30-94 *Remove locking nuts for an installed height of 860-861 mm. **Door length. It is important that you read through and follow WARNING! the instructions and directions below. Conduct The plug must be disconnected or power to installation and connection in accordance with the the socket turned off while the work is carried separate installation instructions. - Page 27 with an integrated anti-siphon device to prevent Dishwashers fitted with a plug must be connected the machine from being emptied of water during to an earthed socket. the wash cycle. The electric wall socket must be placed outside The drainage hose can also be connected to a of the installation area to be easily accessible after connection nipple on the sink unit's water trap.
-
Page 28: Service
SERVICE Read chapter Troubleshooting before contacting the service department. Note down the details on the serial number plate positioned on the right ART. NO. SERIAL NO. inside the dishwasher. Note down the item number (1) and serial number (2). -
Page 29: Programme Chart
PROGRAMME CHART... -
Page 30: Your Notes
YOUR NOTES... - Page 31 QUICK GUIDE LOAD THE BASKETS (See page 6.) Do not rinse dishes under running water before loading them in the dishwasher. Simply scrape off large food particles before loading the dishwasher. CHECK THAT THE SPRAY ARMS CAN ROTATE FREELY Check also that the water tap is on. ADD DETERGENT The detergent compartment has one smaller compartment for the prewash and one for the main wash.
- Page 32 Art. No.: 493333. Rev. 04. We reserve the right to make changes. en (06-16)
