Beresford Caiman SEG-22 Instruction Manual

Advertisement

Quick Links

TC-7535 Caiman SEG
SEG-22, SEG-30, SEG-42
Overview
The Caiman SEG is a reference-quality digital-to-analogue audio converter
featuring the latest DAC Audio technology, The Caiman SEG is designed
for maximum transparency and critical playback in professional audiophile
applications.
Burn in
Many users report that the sound output develops in quality after a few days
of use. The Caiman SEG can be left powered on and playing a music
stream with the volume turned down for a few days to speed up the burn in
process.
DAC output connection
The Caiman SEG DAC Output is designed to connect to the CD or AUX
input of an amplifier.
Pre-amp output level connection
The Caiman SEG pre-amp output is a variable output. It is controlled by the
Volume control. It is designed to connect to the input of a power amplifier or
active speakers, or used as a buffer stage into a LINE or AUX input of
another pre-amp.

Instruction Manual

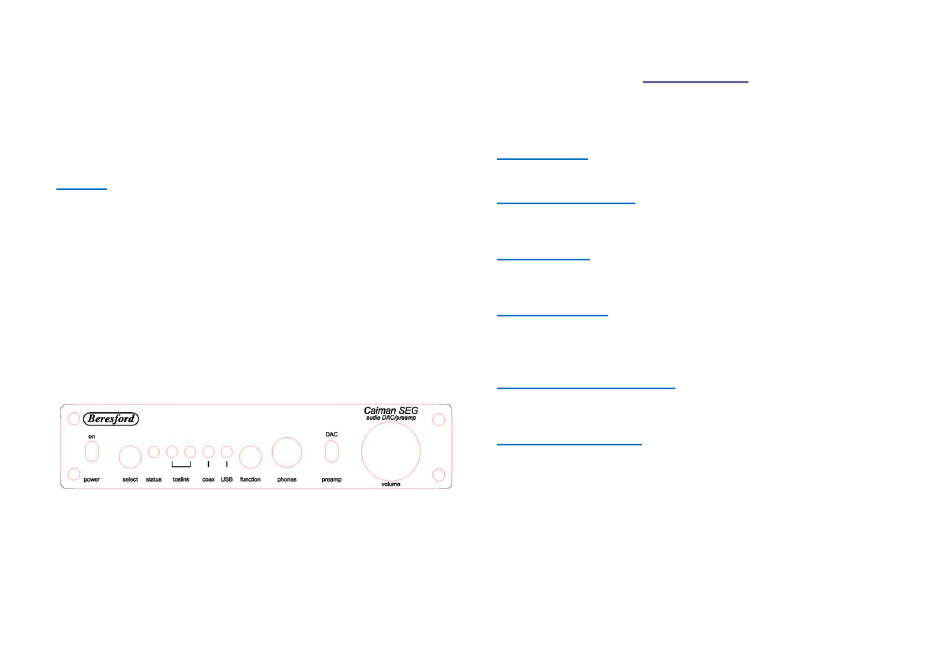

Front Panel
Digital Inputs
Four digital input connectors (1 x coaxial, 1 x USB, and 2 x optical).
Input Status Display
Five LEDs on the front panel indicate which digital input is selected and
when the Caiman is in AUTO or MANUAL mode.
Select Switch
The Select switch allows you to select between input signals, and sound
signatures.
Function Switch
The Function switch allows you to select between AUTO input signal detect,
Manual input channel selection, and LED sleep mode.
Stereo Headphone Socket
The stereo headphone socket mutes the fixed RCA/PHONO output when a
headphone plug is inserted
Headphone Amplifier
The Caiman headphone amplifier is designed to drive loads between 12 to
600 Ohms.
Headphone amplifier gain adjustment
The headphone gain can be adjusted to suit different listening sensitivities
and headphone impedances. To adjust the gain, do the following:
1. Turn the volume control to the minimum position.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Caiman SEG-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Beresford Caiman SEG-22

  • Page 1 TC-7535 Caiman SEG Instruction Manual SEG-22, SEG-30, SEG-42 Front Panel Overview The Caiman SEG is a reference-quality digital-to-analogue audio converter featuring the latest DAC Audio technology, The Caiman SEG is designed for maximum transparency and critical playback in professional audiophile Digital Inputs applications.
  • Page 2 2. Pull out the volume control knob. (This might require the use of a bit Input 3 - SPDIF of pulling force the very first time that you attempt this). The coaxial input uses a RCA connector. Input up to 24Bit/192kHz 3.
  • Page 3 Important Specification Notes MANUAL MODE   If the STATUS LED is lit and the DAC is either scanning for a new input The first 1mm of travel of the volume control is used to bias the headphone signal or playing music, you can switch to manual mode by pressing the amplifier circuit.
  • Page 4 An RN (Returns Number) is required when sending products back. Goods reboot the MCU (Micro Control Unit) to restore the DAC to the factory for repair must be shipped to Beresford ME prepaid and preferably in their default mode. original shipping carton with the RN clearly visible on the exterior of the packaging.
