TC-7534 Caiman MKII SFW3
Manual
Stereo Audio Digital-to-Analogue Converter
Overview
The TC-7534 Caiman MKII is a reference-quality digital-to-analogue audio
converter featuring the latest DAC Audio technology, Direct Coupled output
stage, and Class-AB headphone stage. The Caiman is designed for
maximum transparency and critical playback in professional audiophile
applications.
Burn in
Many users report that the sound output develops in quality after a few days
of use. The Caiman can be left powered on and playing a music stream with
the volume turned down for a few days to speed up the burn in process.
Fixed Output Level connection
The Caiman Fixed Output is designed to connect to the CD or AUX input of
an amplifier.
Variable Output Level connection
The Caiman Variable Output is designed to connect to the input of a power
amplifier or active speakers.
Instruction
Digital Inputs
Four digital input connectors (1 x coaxial, 1 x USB, and 2 x optical).
Input Status Display
Five LED's on the front panel indicate which digital input is selected and
when the Caiman is in AUTO or MANUAL mode.
Select Switch
The Select switch allows you to select between input signals.
Function Switch
The Function switch allows you to select between AUTO input signal detect,
Manual input channel selection, and LED sleep mode.
Stereo Headphone Socket
The stereo headphone socket mutes the fixed RCA/PHONO output when a
headphone plug is inserted
Headphone Amplifier
The Caiman headphone output is driven by a high-end headphone
amplifier. It is designed to drive loads between 12 to 600 Ohms.
Volume Control
The front-panel Volume Control sets the output level of the headphone.

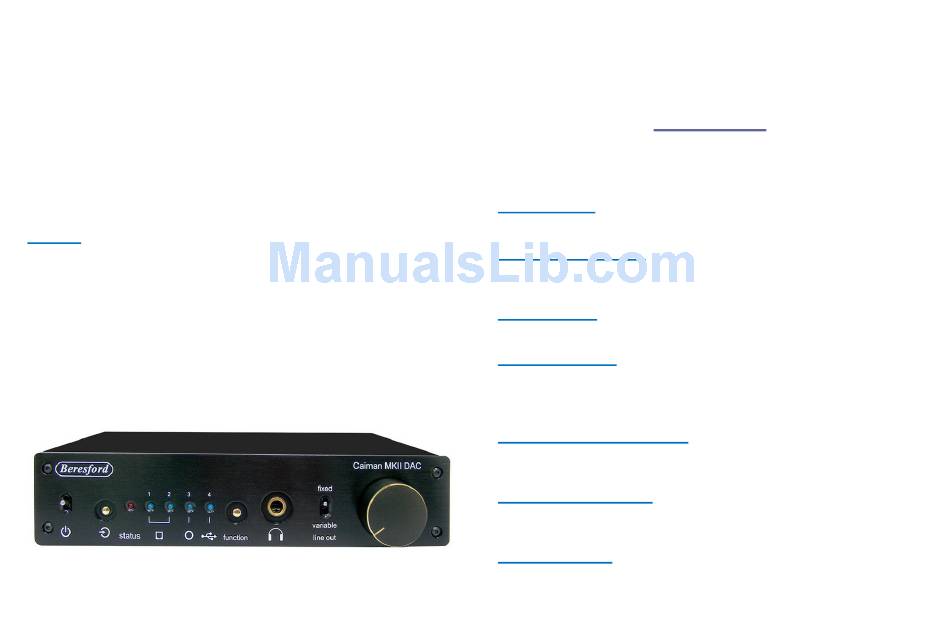

Front Panel
