Summary of Contents for Spektrum SR4000T
- Page 1 SR4000T/SR6000T Telemetry Receiver Instruction Manual Telemetrie Empfänger Récepteur avec télémétrie intégrée Ricevente con Telemetria...
-
Page 2: Warranty Registration
WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. -
Page 3: Specifications

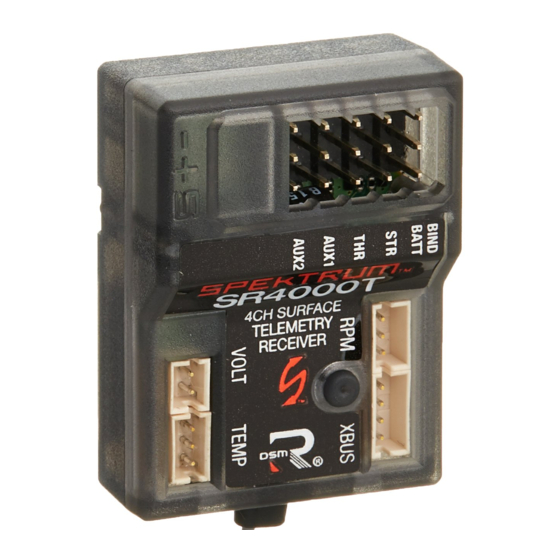

SR4000T/SR6000T Telemetry Receiver The Spektrum™ SR4000T/SR6000T Telemetry Receiver is compatible with all ® Spektrum DSMR surface transmitters. Telemetry functions require a Spektrum transmitter capable of telemetry. Specifi cations Type: DSMR with internal telemetry Dimensions (LxWxH): 1.5 x 1.1 x 0.6 in (37.5 x 27.7 x 15.7mm) Antenna Length: 8.27 in (210mm) - Page 4 Receiver Installation and Setup Install the Receiver in your vehicle using double-sided foam servo tape. Foam servo tape will hold the receiver in place and help isolate it from vibrations. Mount the antenna up and away from the vehicle. The higher up the antenna is, the better signal it will receive.
-
Page 5: Aux Channels
Binding Receiver to Transmitter In order to operate, the receiver must be bound to the transmitter. Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. When a receiver is bound to a transmitter/model memory, the receiver will only respond to that specifi... -
Page 6: Temperature Sensor
Temperature • • XBus Port (Connect additonal telemetry sensors) The Spektrum SR4000T/SR6000T Telemetry Receiver has the Voltage Sensor and the Temperature Sensors included in the box. Voltage Sensor • Plug the voltage sensor (SPMA9570) into the VOLT port on the SR4000T/SR6000T. -
Page 7: Year Limited Warranty
Support The receiver Low receiver battery voltage. Charge the receiver or stops responding If the battery voltage is low, vehicle battery. Spektrum during operation it may drop below 3.5V receivers require at least momentarily, causing the 3.5V to operate receiver to brown-out, then... -
Page 8: Warranty Services
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE. - Page 9 submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility.
- Page 10 Warranty, Service and Customer Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service servicecenter. Center horizonhobby.com/ (Repairs and Repair RequestForm/ Requests) Horizon Product productsupport@ 4105 Fieldstone Rd United States Support horizonhobby.com. Champaign, Illinois, of America (Product Technical 61822 USA 877-504-0233 Assistance)
-
Page 11: Compliance Information For The European Union
IC Information IC: 6157A-SPMSR4000T This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, Including interference that may cause undesired operation of the device. - Page 12 DSM, DSMR and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
