Summary of Contents for Spektrum SRS4210

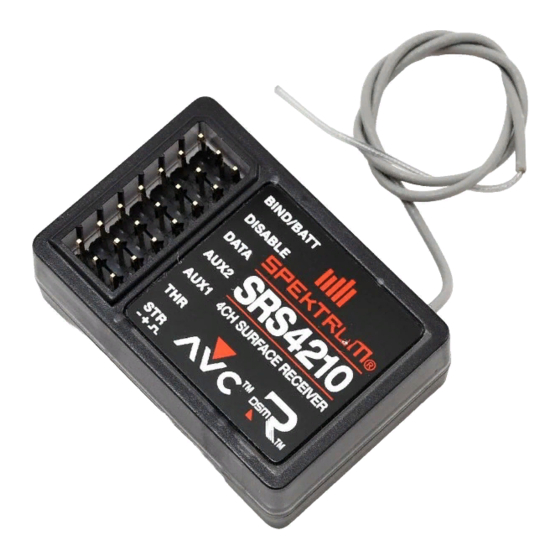

- Page 1 SRS4210 InStRuctIon Manual SRS4210 BedIenungSanleItung Manuel d’utIlISatIon SRS4210 Manuale dI IStRuzIonI SRS4210...
-
Page 2: Meaning Of Special Language
WaRnIng agaInSt counteRfeIt pRoductS Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum. -
Page 3: General Precautions
WateRpRoof coMponent Your new Spektrum™ receiver has been designed and built to allow you to operate your vehicle in many wet conditions, including puddles, creeks, wet grass, snow and even rain. While waterproof, this component has not been designed to be immersed in water for long periods of time and should NOT be treated like a submarine. -
Page 4: Wet Conditions Maintenance
– actIVe VehIcle contRol AVC™ technology is the newest Spektrum™ RC innovation from Horizon Hobby. This Spektrum stabilization system adds a whole new level of control to your RC driving experience. AVC technology utilizes sensors to adjust steering and throttle output, providing you with a more stable and controlled driving experience. -
Page 5: Specifications
DSM2 transmitters. The SRS4210 ® receiver is NOT compatible with DSM transmitters. For a complete ® list of compatible transmitters, see the SRS4210 product page on spektrumrc.com. Specifications Type: DSMR Weight: 10.9 g (0.39 oz) Dimensions (LxWxH): Band: 2.4GHz... -
Page 6: Receiver Connection And Installation
Foam servo tape will hold the receiver in place and help isolate it from vibrations. IMpoRtant: Do not use hook & loop material to install the SRS4210 receiver. Using hook & loop material will affect the performance of the AVC system. - Page 7 powering the receiver with a separate receiver pack Battery Throttle Servo Receiver Steering Servo powering the receiver with an eSc Battery To Motor Electronic Speed Control Receiver Steering Servo IMpoRtant: If you adjust the steering and throttle trim on your transmitter, the receiver must be turned off and back on again in order to save the new trim settings.
-
Page 8: Binding And Calibrating The Receiver
Binding Receiver to transmitter In order to operate, the receiver must be bound to the transmitter. binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. When a receiver is bound to a transmitter/model memory, the receiver will only respond to that specific transmitter/model memory. - Page 9 The receiver Inadequate battery Charge or replace the receiver stops respond- voltage batteries. Spektrum receivers ing during require at least 3.5V to operate operation (We recommend using a 6V receiver pack). An inadequate power supply can allow voltage to momentarily drop below 3.5V...
-
Page 10: Year Limited Warranty
1-YeaR lIMIted WaRRantY What this Warranty Covers Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 years from the date of purchase. What is Not Covered This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial... - Page 11 WaRRantY SeRVIceS Questions, Assistance, and Services Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance.
- Page 12 ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. by submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-service-center. ...
-
Page 13: Compliance Information For The European Union
(in accordance with ISO/IEC 17050-1) No. HH2014022001 Product(s): SRS4210 DSMR AVC Surface Receiver Item Number(s): SPMSRS4210 Equipment class: The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC:...
