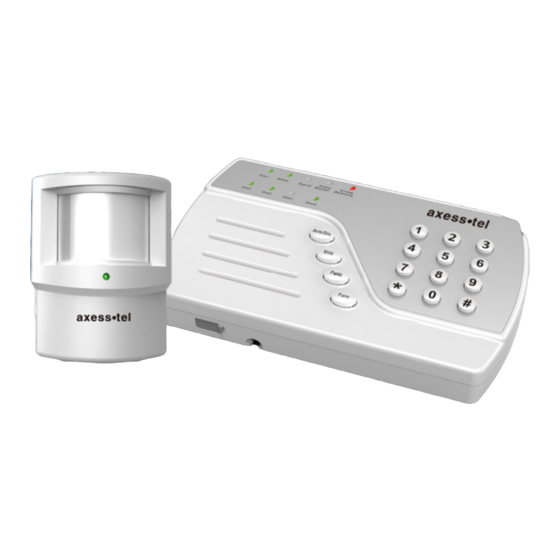

Axesstel AX52R Series User Manual

Home alert wireless alert system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX52R Series and is the answer not in the manual?

Questions and answers

Related Manuals for Axesstel AX52R Series

Summary of Contents for Axesstel AX52R Series

  • Page 2 20cm away. Axesstel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the Axesstel device or for failure of the Axesstel device to transmit or receive such data.
  • Page 3 Safety Precautions Only use the supplied power adaptor, and do not use the power adaptor in • temperatures over 40 C, and only use in a dry location Only use 9V batteries in the main unit and the motion sensors, as there is a risk •...
  • Page 4 POWERED OFF. The Axesstel router can transmit signals that could interfere with this equipment.
  • Page 5 FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY. Notwithstanding the foregoing, in no event shall Axesstel aggregate liability arising under or in connection with the Axesstel product, regardless of the number of events, occurrences, or claims giving rise to liability.
  • Page 6 Table of Contents Introduction ......................10 Product Overview.....................10 Using your AX52R ....................13 Package Contents ..................13 1x Main Unit ......................13 • 2x Motion Sensors with brackets ................13 • 1x Power Adaptor.....................13 • Knowing your Main Unit ................13 LEDs ........................ 13 LED ..........................14 Green ........................14 Flashing Green......................14...
  • Page 7 - ..........................14 - ..........................14 Device is Off ......................14 Battery ........................14 Battery power is Full / Medium.................14 - ..........................14 Battery ........................14 Power is Low ......................14 No Battery is installed ....................14 Signal ........................14 Registered to the network and signal level is good ..........14 Signal is poor ......................14 - ..........................14 No network signal.....................14...
  • Page 8 In register status.......................14 - ..........................14 Not in Setting / Registering Mode ................14 Arming / ........................14 Disarming .........................14 - ..........................14 - ..........................14 Alarm is Armed......................14 Alarm is Disarmed....................14 Zone 1 ........................14 Armed........................14 - ..........................14 Alarm Detected ......................14 Disarmed ........................14 Zone 2 ........................14 Armed........................14 - ..........................14 Alarm Detected ......................14...

  • Page 9: Table Of Contents

    Disarmed ........................14 Zone 3 ........................14 Armed........................14 - ..........................14 Alarm Detected ......................14 Disarmed ........................14 Zone 4 ........................14 Armed........................14 - ..........................14 Alarm Detected ......................14 Disarmed ........................14 Using your AX52R ....................15 Battery Installation / UIM Card Installation into Main Unit ......15 Battery Installation into Motion Sensor ............16 Connecting the Power Adaptor..............
  • Page 10 UIM Card......................18 Changing the Default Password ..............20 Adding / Removing Motion Sensors ............21 Adding / Removing SMS Numbers ............... 22 Adding / Removing Call Numbers ..............24 4.10 Arming / Disarming the AX52R ..............25 4.10.1 Arming the AX52R ..................26 4.10.2 Disarming the AX52R ................28 4.11 Entry / Exit Delay ....................
  • Page 11 Introduction This user manual will help you place, configure and use your AX52R Alert System. Product Overview The AX52R is an easy to install, use and maintain alert system, which can provide peace of mind and security without the need for an expensive security contract. Some features described in this manual may not be supported by your service provider or may not be available with your network account.
  • Page 12 SMS / Call Alerts if the Motion Sensor is Triggered Notify up to 8 friends and neighbors via call or SMS when motion is detected to increase chances of a close-by responder. You can program up to 3 SMS numbers and 5 call numbers.
  • Page 13 Easy to use Main Unit 9 LED indicators represent the product status. The unit is also very easy to program and to modify the list of SMS / Call contacts.
  • Page 14 Using your AX52R 3.1 Package Contents 1x Main Unit • 2x Motion Sensors with brackets • 1x Power Adaptor • 3.2 Knowing your Main Unit Your AX52R is designed to be wall mounted, or it can simply be placed on a shelf. All the LEDs are easily visible while the power cord will connect at the back.

  • Page 15: Disarmed

    Green Flashing Green Device is Turned Power Device is Off Battery power is Battery No Battery is Battery Full / Medium Power is Low installed Registered to the Signal network and signal Signal is poor No network signal level is good Setting In process of Not in Setting /...

  • Page 16: Using Your Ax52R

    Using your AX52R 4.1 Battery Installation / UIM Card Installation into Main Unit Your AX52R main unit may need a UIM Card so that it can communicate with the wireless network. It also supports battery backup. Please follow the instructions below to install the UIM Card and the 9V battery.

  • Page 17: Battery Installation Into Motion Sensor

    4.2 Battery Installation into Motion Sensor To install the battery into the Motion Sensor please follow the instructions below.

  • Page 18: Connecting The Power Adaptor

    4.3 Connecting the Power Adaptor To connect the power adaptor, please follow the instructions below.

  • Page 19: Placement Of Main Unit / Motion Sensor

    4.4 Placement of Main Unit / Motion Sensor 4.4.1 Main Unit The keypad should be placed near the entry / exit point of the house. 4.4.2 Motion Sensor Place on shelves or walls to detect motion within 50 meters, great for rooms with lots of windows.
  • Page 20 Activate/ Deactivate the PIN Code To toggle between activating and deactivating the PIN Code, please enter the following on your keypad *#→password→07->PIN Code→Func Key Changing your PIN Code You may want to change your UIM Card PIN code to something more memorable to do this you can enter the command below *#→password→08->Existing PIN Code*→New PIN Code→...

  • Page 21: Changing The Default Password

    4.6 Changing the Default Password Now that the battery is installed and the power adaptor connected you are ready to use some of the more advanced features of the AX52R. To change the default password please follow the instructions below. Using your keypad please enter the following *#→password→00->new password*→new password→Func Key NOTE: IT IS ADVISABLE TO CHANGE YOUR PASSWORD AS SOON AS YOU...

  • Page 22: Adding / Removing Motion Sensors

    4.7 Adding / Removing Motion Sensors To add motion sensors to the AX52R please follow the instructions below. Up to 64 Motion sensors can be added across 4 zones. *#→password→71→Func Key Trigger the sensor that you want to put in zone1 *#→password→72→Func Key Trigger the sensor that you want to put in zone2 *#→password→73→Func Key Trigger the sensor that you want to put in zone3 *#→password→74→Func Key Trigger the sensor that you want to put in zone4...

  • Page 23: Adding / Removing Sms Numbers

    *#→password→82→Func Key zone2 *#→password→83→Func Key zone3 *#→password→84→Func Key zone4 Please note that removing sensors will remove all the sensors in the specific zone. 4.8 Adding / Removing SMS Numbers When your alarm is triggered in any zone, you can choose to send an SMS to up to 3 numbers.
  • Page 24 Please note that you have to enter the desired number twice. The number that you entered will need to match. If the numbers do not match then the unit will beep 3 times. If the numbers match then you will hear 2 beeps. To remove the SMS numbers please enter the details below.

  • Page 25: Adding / Removing Call Numbers

    4.9 Adding / Removing Call Numbers When your alarm is triggered as well as sending SMS, the AX52R will also dial 5 numbers of your choice. It is important to note that as the AX52R has no microphone or speaker no conversation will be permissible. To add numbers please follow the instructions below.

  • Page 26: Arming / Disarming The Ax52R

    Please note that you have to enter the desired number twice. The number that you entered will need to match. If the numbers do not match then the unit will beep 3 times. If the numbers match then you will hear 2 beeps. To remove the phone numbers please follow the instructions below.

  • Page 27: Arming The Ax52R

    4.10.1 Arming the AX52R Siren Mode In Siren mode, when the motion sensors are triggered, it will emit a high pitched continuous beep, until the unit is disarmed. To activate Siren mode enter the following: *#→password→01->Arming Key Silent Mode In Silent mode, when the alarm is triggered the high pitched continuous beep will not sound making the intruder unaware that the alarm has been triggered, although SMS / Calls will be sent.
  • Page 28 Stay Mode Occasionally you may want to alarm only a certain part of your house, and this can be achieved by using Stay mode. Please note that Zone 4 will only be triggered when using stay mode. In Stay mode, you can activate your alarm so that any motion in zones one, two or three will not trigger the alarm, but if there is any movement in zone four then the alarm will be triggered.

  • Page 29: Disarming The Ax52R

    4.10.2 Disarming the AX52R When disarming the AX52R, you can disarm in multiple ways, and these are described below. Normal Disarming To disarm the AX52R in a normal manner enter the following: *#->password->05->Arming Key Normal disarming Duress Disarming If you are forced to disarm the unit under duress, then SMS / Calls will still be made to the numbers that are stored in your device.

  • Page 30: Entry / Exit Delay

    Remote Disarming You can also disarm the AX52R remotely via SMS. To do this the mobile number that you use to disarm the AX52R will need to be programmed as one of the three SMS numbers. To disarm the AX52R by SMS you will simply need to send a text message saying ‘Disarm Alarm’...

  • Page 31: Exit Delay

    4.11.2 Exit Delay No Exit Delay *#→password→60→Func Key 30 Seconds - *#→password→61→Func Key 60 Seconds - *#→password→62→Func Key 90 Seconds - *#→password→63→Func Key 120 Seconds - *#→password→64→Func Key 4.12 Panic Button Your AX52R features a panic button, that when pressed will immediately activate the siren, as well as alerting your friends and neighbors via SMS and Calls.

  • Page 32: Factory Reset

    4.13 Factory Reset If your unit malfunctions or develops any form of software fault then it may be necessary to perform a factory reset. To perform a factory reset please enter the following: *#→password→90→Func Key...

  • Page 33: Operating Specifications

    Operating Specifications The Main Unit is only for RX function without TX function, and Motion Sensor (AI100) is only for TX function without RX function 5.1 Main Unit Item Description Main CPU M0516LBN Module QSC6020 Cellular 800 TX: 824MHz ~ 849MHz Band Frequency RX: 869MHz ~ 894MHz...
  • Page 34 Channel Spacing 30KHz Carrier spacing Channel Band width : 1.23MHz Maximum output power 300mW (24.77dBm) Sensitivity and Dynamic Range : RSSI -104dBm ~ -25dBm < FER = 0.5% Form Factor Molex connector 80PIN Dimension 36.2*30*3.2mm Antenna ASK433M Spring antenna CDMA CDMA Dual...
  • Page 35 SMS number 3 sets phone number CALL number 5 sets phone number Zone number 4 zones Power adapter 5V/2A Battery ASK 433Mhz Band Frequency 433.82Mhz-434.02Mhz Carrier spacing 0.2MHz RSSI < -110dBm Working Temperature -10~+50 Storage Temperature -20~+70 Humidity 5% to 95%...
  • Page 36 Motion Sensor (AI100) BS0001 Detection mode Passive infrared signal Molex connector 80PIN Antenna ASK433M Spring antenna Detection range 6-8m Red & Green Not support Tamper switch Support Battery ASK 433Mhz Band Frequency 433.82Mhz-434.02Mhz Carrier spacing 0.2MHz...
  • Page 37 Maximum output power RSSI < -110dBm Working Temperature -10~+50 Storage Temperature -20~+70 Humidity 5% to 95%...
  • Page 38 AXESSTEL ALERT PRODUCTS CONSUMER WARRANTY AND LIMITATION OF LIABILITY THE AXESSTEL ALERT PRODUCT THAT YOU HAVE PURCHASED, WHEN PROPERLY INSTALLED, CAN BE USED TO DETECT MOTION IN A SPECIFIED AREA AND PROVIDE AN ALERT TO TELEPHONES OR PERSONAL DIGITAL ASSISTANTS THAT YOU SPECIFY. THE PRODUCT IS DESIGNED SOLELY TO PROVIDE AN ALERT. IT DOES NOT PROVIDE SECURITY, OR PREVENT INTRUSION, THEFT OR CRIME.
  • Page 39 THAT THE PRODUCT WILL NOT BE DISABLED, COMPRISED OR CIRCUMVENTED (BY DISABLING TELEPHONE SERVICE OR IN SOME OTHER WAY). AXESSTEL DOES NOT WARRANT THAT THE PRODUCT WILL DETECT OR PREVENT ALL INTRUSION, LOSS OF PROPERTY OR PERSONAL INJURY OR BURGLARY, HOLD-UP, FIRE, OR MEDICAL PROBLEM;...
  • Page 40 OTHERWISE) WILL NOT EXCEED THE PURCHASE PRICE PAID FOR THE PRODUCT WHICH IS THE SUBJECT OF SUCH CLAIM OR CAUSE OF ACTION. NOT INSURANCE. AXESSTEL IS NOT AN INSURER AND IS NOT RESPONSIBLE FOR ACTS OR OMISSIONS OF OTHERS OR FOR EVENTS BEYOND ITS CONTROL. THE PURCHASE PRICE FOR THE PRODUCT HAS NO...
  • Page 41 USE AT OWN RISK. YOU ACCEPT THE ENTIRE RISK OF THE USE OF THE PRODUCT. YOU HEREBY AGREE TO RELEASE, DEFEND, INDEMNIFY AND HOLD AXESSTEL HARMLESS FROM AND AGAINST CLAIM OR LIABILITY FOR ANY RISK, LOSS, PROPERTY DAMAGE, PERSONAL INJURY, DEATH AND OTHER EFFECTS MENTIONED ABOVE AT YOUR SOLE COST AND EXPENSE INCLUDING ATTORNEY’S FEES.
  • Page 42 AND USED IN ACCORDANCE WITH THE INSTRUCTIONS, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. HOWEVER, THERE IS NO GUARANTEE THAT INTERFERENCE WILL NOT OCCUR IN A PARTICULAR INSTALLATION. IF THIS PRODUCT DOES CAUSE HARMFUL INTERFERENCE TO RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE FOLLOWING MEASURES: —REORIENT OR RELOCATE THE RECEIVING ANTENNA.
  • Page 43 CHANGES OR MODIFICATIONS TO THIS UNIT NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTICE: THIS EQUIPMENT SHOULD BE INSTALLED AND OPERATED WITH A MINIMUM DISTANCE 20CM BETWEEN THE RADIATOR AND YOUR BODY.
