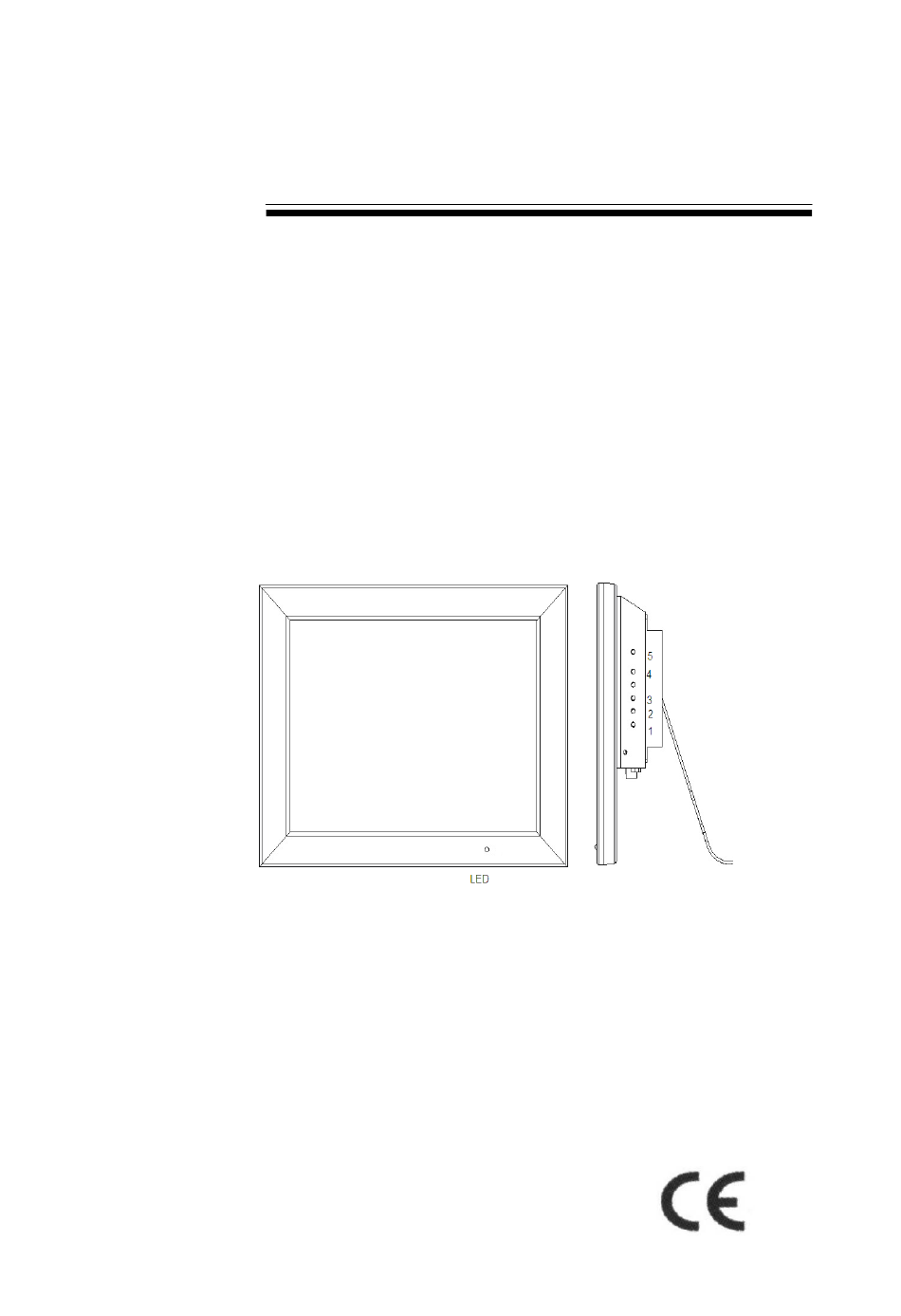

- Page 1 TFT LCD MONITOR USER MANUAL HDVS IP Series LCD_12.1”/15.6” LCD_21.5”/24”/27” LCD_32”/42”/46” V 1.5...
-
Page 2: Table Of Contents
1. Warning......................3 2. Safety Precautions..................4 3. LCD Monitor Mounting guide................6 4. Monitor Controls ..................8 5. Connections....................10 6. LCD OSD Function..................12 7. PC Timing....................13 8. Features.......................13 9. Specification....................14 10. Appendixes ... Troubleshooting for Display problem…………….…..….17 ... -
Page 3: Warning
1. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION: Explanation of Graphical Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 4: Safety Precautions
2. Safety Precautions Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 5 About this user manual This manual aims at assisting the user on how to operate the monitors described in this manual. This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. We reserve the right to make changes to the manual without prior notice.
-
Page 6: Lcd Monitor Mounting Guide
3. LCD Monitor Mounting Guide Desktop Adjust the viewing angle of LCD to fit most comfortable monitoring status. Wall mount Free your space with wall mount design. Please follow the fix-hole size in back panel to install the LCD to the wall. 12.1”/15.6”/21.5”/24”/27”... - Page 7 32” VESA Bracket: 42”/46” VESA Bracket:...
-
Page 8: Monitor Controls
4. Monitor Controls 12.1”/15.6”/21.5”/24”/27”/32”/42”/46” Aluminum 32”/42”/46” Aluminum... - Page 9 Key Board 1. Power Push to turn on and turn off the unit. LED Green light: Power on LED Red light: Standby mode. 2. / 3. Adjust UP /DOWN UP: Used as UP function. Or Increase value on the OSD Menu. And as a hot key for color adjust function.
-
Page 10: Connections
5. Connections: HDVS IP Series 12.1”/15.6”/21.5”/24”/27” 1: e-SATA 2: RJ-45 (Ethernet Interface) 3: USB IN *2 (USB Mouse/Record Backup Connector) 4: DC 12V IN 5: DVI IN 6: Full HD IN 7: VGA IN 8: AUDIO R/L IN 9: Earphone OUT... - Page 11 32”/42”/46” 1: e-SATA 2: RJ-45 (Ethernet Interface) 3: USB IN *2 (USB Mouse/Record Backup Connector) 4: DC 12V OUT 5: DVI IN 6: Full HD IN 7: VGA IN 8: AUDIO R/L IN 9: Earphone OUT...
-
Page 12: Lcd Osd Function
6. LCD OSD Function Color Image Setting OSD Menu Signal Source Audio Misc. Back Color: Contrast Adjust background black level of the screen image. Brightness Adjust fore ground white level of the screen image. Color Adjust Adjust Red, Green, Blue, color deepness for Users. Color Temp Adjust color temperatures for users. -
Page 13: Pc Timing
Exit OSD menu. Audio Volume Control built-in speakers' output Volumes Mute Disable the unit's sound output Back Exit OSD menu. Misc: Auto Adjust Adjust the best image. Color Adjust Adjust the best image color. Reset Return to factory default setting. Screen saver Use the manual buttons to on/off the screen saver Back:... -
Page 14: Specification
9. Specification Monitor model T121-4HDVSL-IP T156-2HDVS-IP LCD panel 12.1” 15.6“ Visible area (mm) 245.76 x 184.32 344.1x 193.5 Picture format 4 : 3 16: 9 Max. resolution 1024x768 1920x1080 Pixel dot pitch (mm) 0.297x0.297 0.17925 x 0.17925 Colours 16.2M 262K Brightness 500 cd/m²... - Page 15 Monitor model T215-1HDVSL-IP T240-1HDVSL-IP T270-2HDVS-IP LCD panel 21.5“ 24“ 27” Visible area (mm) 476.6 x 268.1 531.3 x 298.8 597.6 x 336.15 Picture format 16 : 9 16:9 16:9 Max. resolution 1920 x 1080 1920x1080 1920x1080 Pixel dot pitch (mm) 0.248x0.248 0.276.7 x0.276 .7 0.276.7 x0.276 .7...
- Page 16 Monitor model T320-2HDVS-IP T420-3HDVS-IP T460-4HDVS-IP LCD panel 32“ 42” 46” Visible area (mm) 698.4 x 392.8 930.24x 523.26 1018.08 x 572.76 Picture format 16 : 9 16 : 9 16: 9 Max. resolution 1920 x 1080 1920 x 1080 1920 x 1080 Pixel dot pitch (mm) 0.36375x 0.37375 0.4845 x0.4845...
-
Page 17: Appendixes
Appendixes .. Troubleshooting for Display problem The tables provided below include some problems that the user may encounter while using the display and the corresponding solutions. Please refer to the contents of this section prior to contacting service personnel. Problem Possible Causes Solutions 1. -
Page 18: Ip Camera Device Side Setting
IP Camera Device Side Setting IP Camera Network Configuration Direct connector to a computer. Configure your IP Camera Network settings. Please reference your IP Camera manual. Run the IE browser and login to setup. To set an IP address for the Camera unit. ... -
Page 19: Hdvs Ip Host Side Operation
HDVS IP Monitor Host Side Operation 1. Start System Plug in power cable and connect the RJ-45 LAN cable, USB mouse, e-SATA HDD cable (if record the image) to the HDVS IP Monitor. For the first time when plug in power cable the HDVS IP Monitor will booting automatically. - Page 20 After login successfully, system will pop out the Startup wizard UI on the screen. Language: select different language according to the necessary, after that need restart the device. Display Setting: The resolution default setting is 1024x768; please select the best resolution according to the monitor or it will affect the image definition.
-
Page 21: Hdvs Ip Display Setting
Rotation interval: Setup the time interval of rotation. Tick “Enable SEQ” to start rotation. HDVS IP Network Setting Connect HDVS IP Series with network cable to LAN switch. After power on, click 【Setting】on the menu bar Network Network Setting to enter setting menu, set HDVS IP address, subnet mask, and gateway and so on. -
Page 22: Ntp Setting
Example: show as the above right picture, access IP by IE in LAN, first add 2 forwarding rules in the router, the IP address is 192.168.1.188, the forwarding ports are 5050-5053, 80. Please input http://192.168.1.188:80 at IE browser and download ActiveX, then close the IE before install the ActiveX, after installing it successfully, then reopen IE with http://192.168.1.188:80, it will show login menu, input device port:5050, user name: admin, no password, can access IP. - Page 23 Onvif device select UDP network Type. IPCAM device select TCP network Type. Example: To click “Save” and click “Exit“ button than the image will come out.
-
Page 24: Drag To Change Channel Sequence
Drag to Change channel Sequence During real video surveillance, it’s very important to have preview channel position of IPC image. Simple image dragging could not meet the need of multi-channel simultaneous playback and it’s frustrating to match channel position respectively when searching. Dragging channel sequence can better solve this problem. -
Page 25: System Device Setting
System Device Setting Device Parameter Click【Setting】DeviceDevice info to check device spec, information and time setting Attention: select mode according the connected IP camera channels and resolution, after change the model, click save and reboot the device. When the image is good in 4CH screen modes, after double click the image to zoom, the image is stuck or become black screen change to 1080p mode can solve it. -
Page 26: Channel Information
Channel Information Click【Setting】ChannelVideo Parameters, to adjust IP camera preview and recording resolution. 1) Encoding Type: Main Stream (Normal), Sub Stream, Main Stream (Event) for selection Main Stream: double click to show single image or full screens image are main stream, also recording playback is main stream. -
Page 27: Recording
Recording Manual Recording & Schedule Record Manual Recording Right click to bring main menu, click【Record】to enter record setting. Manual recording has the highest priority, after performing Manual, the corresponding channel will begin recording. Schedule Record Right click to bring main menu, click【Setting】ChannelSchedule Record, the default setting is 24 hours recording, users can set the recording plan according to the necessary and copy it to other channel... - Page 28 Playback Right click to bring main menu, click【playback】to open the window： Channel Select: Select the channels that need do playback, system will find the required recording file. The date that has recording is highlighted by red color in calendar. Date Select: Select the playback date. Playback: The split screens will show on A-AREA, first choose channel on B-AREA, then choose dates shown on C-AREA to play the video during specific time (D-AREA) .
-
Page 29: System Hdd/E_Sata Setting
File Manager Right click to bring main menu, click【File Manager】icon, the back up file of external storage device and local captured picture will list in the folder. 1) Check photo in the hard disk: Select date on calendar, if there was any capture in that day , it would be displayed in the list form. -
Page 30: Troubleshooting For Ip Camera Problem
Troubleshooting for IP Camera Problem 1. Internet disconnected to HDVS IP Monitor system Possible reasons: 1) Please check if your physical network is normal or not. 2) Please check your HDVS IP Monitor parameter setting. 3) Please if there is IP conflict with each other, please set the gateway correctly. 4) Please ensure all the IP addresses in LAN are unique.
