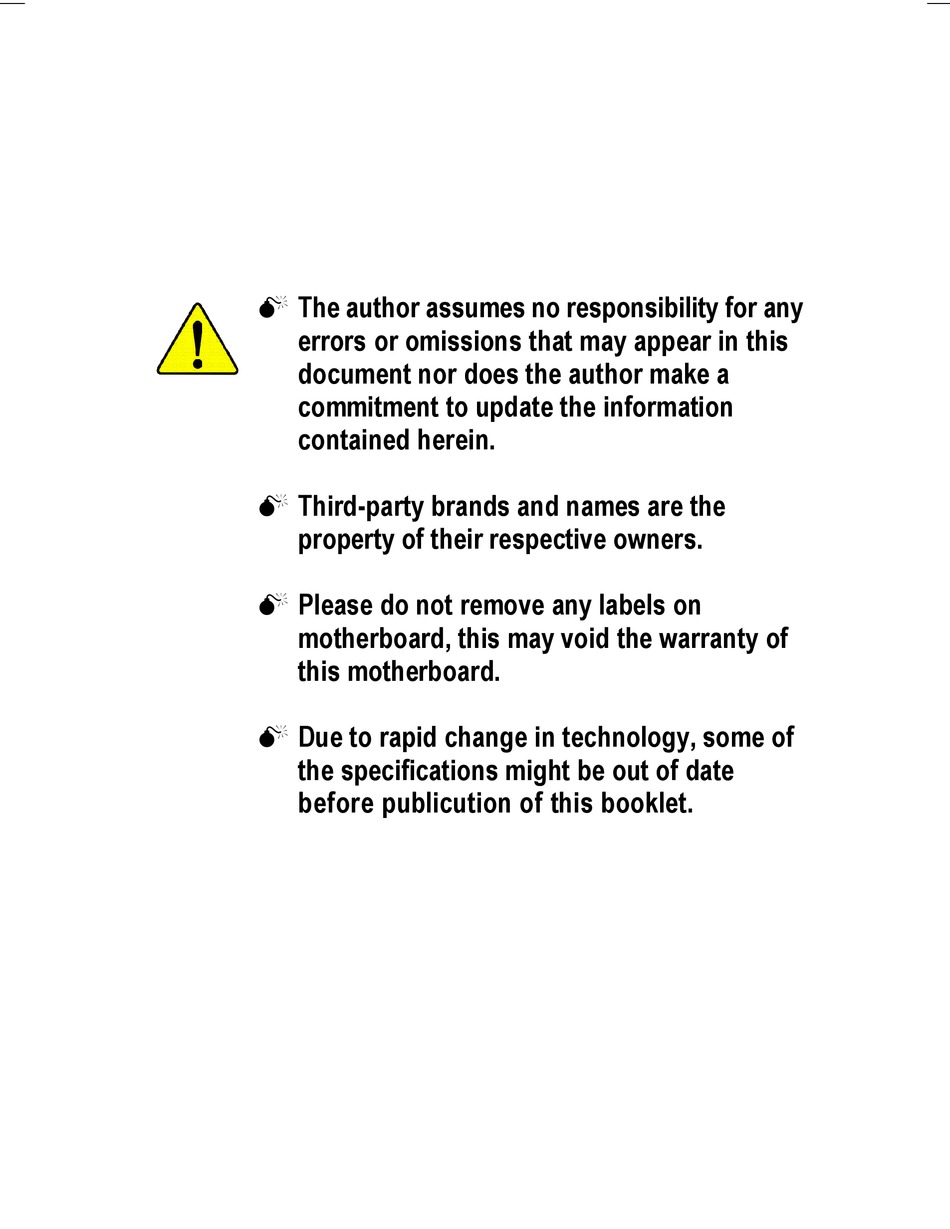

M The author assumes no responsibility for any
errors or omissions that may appear in this
document nor does the author make a
commitment to update the information
contained herein.
M Third-party brands and names are the
property of their respective owners.
M Please do not remove any labels on
motherboard, this may void the warranty of
this motherboard.
M Due to rapid change in technology, some of
the specifications might be out of date
before publicution of this booklet.
Advertisement
Table of Contents
Related Manuals for Gigabyte GA-7VKMLE
Summary of Contents for Gigabyte GA-7VKMLE
- Page 1 M The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. M Third-party brands and names are the property of their respective owners. M Please do not remove any labels on motherboard, this may void the warranty of this motherboard.
-
Page 3: Declaration Of Conformity
Declaration of Conformity We, Manufacturer/Importer (full address) G.B.T. Technology Träding GMbH declare that the product Mother Board GA-7VKMLE is in conformity with in accordance with 89/336 EEC-EMC Directive o EN 61000-3-2* T EN 60555-2 o EN 61000-3-3* T EN 60555-3... - Page 4 (2) this device must accept any inference received, including that may cause undesired operation. Representative Person’s Name: G.B.T. INC. (U.S.A.) Address: 17358 Railroad Street City of Industry, CA 91748 (818) 854-9338/ (818) 854-9339 Motherboard GA-7VKMLE ERIC LU Signature: Eric Lu Date: September 30,2002...
- Page 5 GA-7VKMLE AMD Socket A Processor Motherboard USER’ S MANUAL AMD Socket A Processor Motherboard Rev. 4001 12ME-7VKMLE-4001...
-
Page 6: Table Of Contents
Item Checklist ... 4 WARNING! ... 4 Chapter 1 Introduction ... 5 Features Summary ... 5 GA-7VKMLE Motherboard Layout ... 7 Chapter 2 Hardware Installation Process ... 8 Step 1: Install the Central Processing Unit (CPU) ... 9 Step1-1: CPU Speed Setup ...9 Step1-2: CPU Installation ...10... - Page 7 PNP/PCI Configuration ... 39 Load Fail-Safe Defaults ... 41 Load Optimized Defaults ... 42 Integrated Peripherals ... 43 Hardware Monitor & MISC Setup ... 47 Set Supervisor / User Password ... 48 IDE HDD Auto Detection ... 49 Save & Exit Setup ... 50 Exit Without Saving...
-
Page 8: Item Checklist
Quick PC Installation Guide o RAID Manual WARNING! Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. -
Page 9: Chapter 1 Introduction
Chapter 1 Introduction Features Summary Form Factor — 24.3cm x 19cm Micro ATX size form factor, 4 layers PCB. — Socket A processor — Supports 1.4GHz and faster — 200/266MHz FSB and DDR bus speeds Chipset — VIA KM266/KL266 Memory/AGP/PCI Controller (PAC) —... - Page 10 Whether your system can run under these specific bus frequencies properly will depend on your hardware configurations, including CPU, Chipsets,SDRAM,Cards… .etc. "*" for PCB Ver.: 3.1 "**" for PCB Ver.: 4.0 GA-7VKMLE Motherboard - 6 -...
-
Page 11: Ga-7Vkmle Motherboard Layout
GA-7VKMLE Motherboard Layout MS_KB F_AU DIO I T87 00F CODEC CD_IN RTL8100BL * RTL8101L ** "*" for PCB Ver.: 3.1 "**" for PCB Ver.: 4.0 CPU_FAN RA M_LED SOCKET A K M266/ KL266 BIOS CLK _JP PCI1 PCI2 PCI3 COMB... -
Page 12: Chapter 2 Hardware Installation Process
Step 4- Install expansion cards Step 5- Connect ribbon cables, cabinet wires, and power supply Step 6- Setup BIOS software Step 7- Install supporting software tools Step 5 Step 4 GA-7VKMLE Motherboard Step 2 Step 1 - 8 - Step 3 Step 5... -
Page 13: Step 1: Install The Central Processing Unit (Cpu)
Step 1: Install the Central Processing Unit (CPU) Step1-1: CPU Speed Setup The system bus frequency can be switched at 100/133MHz by adjusting CLK_JP. (The frequency ratio depend on CPU.) 1-2 close: 100 MHz 2-3 close: 133 MHz Default Setting: 100MHz - 9 - Hardware Installation Process... -
Page 14: Step1-2: Cpu Installation
M If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause improper installation. Please change the insert orientation. GA-7VKMLE Motherboard CPU Bottom View 2. Locate Pin 1 in the socket and look for a (golden) cut edge on the CPU upper corner. -
Page 15: Step1-3: Cpu Cooling Fan Installation
Step1-3: CPU Cooling Fan Installation 1.Press down the CPU socket lever and finish CPU installation. 3.Fasten the cooling fan supporting-base onto the CPU socket on the main- board. MPlease use AMD approved cooling fan. MWe recommend you to apply the thermal paste to provide better heat conduction between your CPU and cooling fan. -
Page 16: Step 2: Install Memory Modules
Devices used on DIMM 64 Mbit (2Mx8x4 banks) 64 Mbit (1Mx16x4 banks) 128 Mbit(4Mx8x4 banks) 128 Mbit(2Mx16x4 banks) 256 Mbit(8Mx8x4 banks) 256 Mbit(4Mx16x4 banks) 512 Mbit(8Mx16x4 banks) GA-7VKMLE Motherboard 1 DIMMx64/x72 2 DIMMsx64/x72 128 MBytes 256 MBytes 64 MBytes 128 MBytes 256 MBytes... -
Page 17: Ddr Introduction
DDR Introduction Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs and system integrators. DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing SDRAM infrastructure, yet makes awesome advances in solving the system performance bottle- neck by doubling the memory bandwidth. -
Page 18: Step 3: Install Expansion Cards
5. Replace the screw to secure the slot bracket of the expansion card. 6. Replace your computer's chassis cover. 7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS. 8. Install related driver from the operating system GA-7VKMLE Motherboard - 14 -... -
Page 19: Step 4: Connect Ribbon Cables, Cabinet Wires, And Power Supply
Step 4: Connect ribbon cables, cabinet wires, and power supply Step 4-1: I/O Back Panel Introduction u PS/2 Keyboard and PS/2 Mouse Connector PS/2 Mouse Connector (6 pin Female) PS/2 Keyboard Connector (6 pin Female) v USB & LAN Connector USB 1 USB 0 ØThis connector supports standard PS/2 keyboard... -
Page 20: Audio Connectors
Audio Connectors Line Out MIC In Line In GA-7VKMLE Motherboard ØThis mainboard sutports 1 standard COM port, 1 VGA port and 1 LPT port. Device like printer can be connected to LPT port ; mouse and modem etc can be connected to COM port. -
Page 21: Step 4-2: Connectors Introduction
Step 4-2: Connectors Introduction 1) CPU_FAN 2) SYS_FAN 3) ATX 4) FDD 5) IDE1/IDE2 6) PWR_LED 7) RAM_LED 8) F_PANEL 9) BAT 10) F_AUDIO 11) CD_IN 12) F_USB1 13) COMB - 17 - Hardware Installation Process... - Page 22 3) ATX (ATX Power) 3.3V -12V PS-ON(Soft On/Off) GA-7VKMLE Motherboard Ø Please note, a proper installation of the CPU cooler is essential to prevent the CPU from run ning under abnormal condition or damaged by overheating.The CPU fan connector supports Max.
- Page 23 4) FDD (Floppy Connector) 5) IDE1/IDE2 [IDE1 (Primary), IDE2(Secondary) Connector] 6 ) PWR_LED Ø Please connect the floppy driver ribbon cables to FDD. It supports 360K,1.2M,720K,1.44M and 2.88M bytes floppy disk types. The rad stripe of the ribbn cable must be the same side with the Pin1.
- Page 24 Ø Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis front panel to the F_PANEL connector according to the pin assignment above. GA-7VKMLE Motherboard Ø Do not remove memory modules while DIMM LED is on. It might cause short or other unexpected damages due to the 2.5V stand...
- Page 25 9) BAT (Battery) 10) F_AUDIO (Front Audio) Rear Audio (L) Rear Audio (R) Front Audio (R) POWER 11) CD_IN (CD Audio Line In) CD-L CD-R v Danger of explosion if battery is incorrectly replaced. v Replace only with the same or equivalent type recommended by the manufacturer.
- Page 26 NDTRB- NCTSB- NSINB NDCDB- NRTSB- NSOUTB GA-7VKMLE Motherboard Ø Be careful with the polarity of the front USB connector. Check the pin assignment while you connect the front USB cable. Please contact your nearest dealer for optional front USB cable.
- Page 27 - 23 - Hardware Installation Process...
- Page 28 GA-7VKMLE Motherboard - 24 -...
-
Page 29: Chapter 3 Bios Setup
Chapter 3 BIOS Setup BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off. ENTERING SETUP Power ON the computer and press <Del>... -
Page 30: The Main Menu (For Example: Bios Ver. : F2A)
BIOS Features Setup This setup page includes all the adjustable items of AMI special enhanced features. Chipset Features Setup This setup page includes all the adjustable items of chipset special features. GA-7VKMLE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP SUPERVISOR PASSWORD... -
Page 31: Integrated Peripherals
Power Manag ement Setup This setup page includes all the adjustable items of Green function features. PNP/PCI Configurations This setup page includes all the adjustable configurations of PCI & PnP ISA resources. Load Fail-Safe Defaults Load Fail-Safe Defaults option loads preset system parameter values to set the system in its most stable configurations. -
Page 32: Standard Cmos Features
The day , from 1 to 31 (or the max imum allow ed in the month) 8Day The y ear, from 1990 through 2099 8Year GA-7VKMLE Motherboard Base Memory : 640 Kb Other Memory : 384 Kb Ex tended Memory : 95 Mb... -
Page 33: System Time
F System Time The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military time clock. For example, 1 p.m. is 13:00:00. F Primary Master, Slave / Secondary Master, Slave The category identifies the types of hard disk from drive C to F that has been installed in the computer. -
Page 34: Base Memory
Most use for this area is Shadow RAM. Extended Memory The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU’ s memory address map. GA-7VKMLE Motherboard - 30 -... -
Page 35: Bios Features Setup
BIOS Features Setup AMIBIOS SETUP - BIOS FEATURES SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed BIOS Flash Protection 1st Boot Dev ice 2nd Boot Dev ice 3rd Boot Dev ice Floppy Driv e Seek BootUp Num-Lock Passw ord Check S.M.A.R.T. - Page 36 IOAPIC HW support will cause t h e system to hang. Following are some si t uations users might run into: 1.An I OAPIC enabled OS and change the BI OS setting from IOAPIC to PIC, this will cause your system to hang. GA-7VKMLE Motherboard - 32 -...
-
Page 37: Chipset Features Setup
Chipset Features Setup We would not suggest you change the chipset default setting unless you really need it. AMIBIOS SETUP - CHIPSET FEATURES SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed Configure SDRAM by SPD :Enabled SDRAM Frequency :Auto #SDRAM CAS# Latency... - Page 38 Set AGP Aperture Size to 128 MB. 8128MB Set AGP Aperture Size to 256 MB. 8256MB F AGP Read Synchroni zation Enable AGP Read Sy nchronization. 8Enabled Disable AGP Read Sy nchronization. (Default Value) 8Disabled GA-7VKMLE Motherboard - 34 -...
-
Page 39: Pci Delay Transaction
F PCI Delay Transaction Enable PCI Delay Transaction. 8Enabled Disable PCI Delay Transaction.(Default Value) 8Disabled F USB Controller Disable USB Controller function. 8Disabled 84 USB Ports Enable 4 USB Ports. (Default Value) 82 USB Ports Enable 2 USB Ports. F USB Legacy Support 8No Mice Set USB Legacy Support Key board / Floppy . -
Page 40: Power Management Setup
In standby mode(S1): 8Dual/OFF a. If use single color LED, pow er LED w ill turn off. b. If use dual color LED, pow er LED w ill turn to another color. GA-7VKMLE Motherboard :S1/POS Resume On RTC Alarm :Blinking... - Page 41 F USB Dev Wak eup From S3 USB Dev Wakeup From S3 can be set when ACPI standby state set to S3/STR. Enable USB Dev Wakeup From S3. 8Enabled Disable USB Dev Wakeup From S3. (Default Value) 8Disabled F Suspend Time Out (Min.) Disable Suspend Time Out Function.
-
Page 42: Resume On Rtc Alarm
Enable alarm function to POWER ON sy stem. 8Enabled If RTC Alarm Lead To Pow er On is Enabled. RTC Alarm Date: Ev ery day , 1~31 RTC Alarm Hour: 0~23 RTC Alarm Minute : 0~59 RTC Alarm Second: 0~59 GA-7VKMLE Motherboard - 38 -... -
Page 43: Pnp/Pci Configuration
PNP/PCI Configuration AMIBIOS SETUP - PNP/PCI CONFIGURATION ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed OnChip VGA Frame Buffer VGA Boot From PCI Slot 1 IRQ Priority PCI Slot 2 IRQ Priority PCI Slot 3 IRQ Priority Realtek LAN ROM initial Figure 6: PNP/PCI Configuration F OnChip VGA Frame Buffer... - Page 44 The sy stem w ill reserv ed IRQ11 for PCI slot 1, 2, 3 dev ice if no legacy ISA dev ice using IRQ11. FRealtek LAN ROM initial Enabled Realtek LAN ROM initial. (Default Value) 8Yes Disabled Realtek LAN ROM initial. GA-7VKMLE Motherboard - 40 -...
-
Page 45: Load Fail-Safe Defaults
Load Fail-Safe Defaults AMIBIOS SIMPLE SETUP UTILITY - VERSION 2.00 (C) 2001 American Megatrends, Inc. All Rights Reserv ed STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP Load Fail-Safe Defaults? (Y/N)?N PNP / PCI CONFIGURATION LOAD FAIL-SAFE DEFAULTS LOAD OPTIMIZED DEFAULTS ESC: Quit hifg: Select Item... -
Page 46: Load Optimized Defaults
Select Item F7: Optimized Values FLoad Optimized Defaults Optimized defaults contain the most appropriate system parameter values to configure the sy stem to achiev e max imum performance. GA-7VKMLE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE &... -
Page 47: Integrated Peripherals
Integrated Peripherals AMIBIOS SETUP - INTEGRATED PERIPHERALS ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed OnBoard IDE :Both IDE1 Conductor Cable :Auto IDE2 Conductor Cable :Auto OnBoard FDC :Auto OnBoard Serial Port 1 :Auto OnBoard Serial Port 2 :Auto OnBoard Parallel Port :Auto... - Page 48 Enable On Board LPT port and address is 278. 8278 Enable On Board LPT port and address is 3BC. 83BC Set On Board LPT port is Auto. (Default Value) 8Auto Disable On Board LPT port. 8Disabled GA-7VKMLE Motherboard - 44 -...
- Page 49 FParallel Port Mode Using Parallel port as Enhanced Parallel Port. 8EPP Using Parallel port as Ex tended Capabilities Port. (Default Value) 8ECP Normal Operation. 8Normal Using Parallel port as Enhanced Parallel Port & Ex tended Capabilities Port. 8EPP+ECP FParallel Port IRQ Set Parallel Port IRQ is 7.
-
Page 50: Onboard Ac97 Audio
F OnBoard AC97 Audio Enable auto detect onboard AC'97 audio. (Default v alue) 8Auto Disable this function. 8Disabled F Onboard Lan Chip Disable this function. 8Disabled Enable Onboard Lan Chip function. (Default Value) 8Enabled GA-7VKMLE Motherboard - 46 -... -
Page 51: Hardware Monitor & Misc Setup
Hardware Monitor & MISC Setup AMIBIOS SETUP - HARDWARE MONITOR & MISC SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed CPU Host Clock (Mhz) CPU Temp. Figure 10: Hardw are Monitor & MISC Setup FCPU Host Clock (Mhz) 8By Hw Set CPU Host Clock by Hw . -
Page 52: Set Supervisor / User Password
Setup Menu. If you select "Setup" at "Password Check" in BIOS Features Setup Menu, you will be prompted only when you try to enter Setup. GA-7VKMLE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP SUPERVISOR PASSWORD... -
Page 53: Ide Hdd Auto Detection
IDE HDD Auto Detection AMIBIOS SETUP - STANDARD CMOS SETUP ( C ) 2001 American Megatrends, Inc. All Rights Reserv ed Sy stem Date : Jan 08 2002 Tue Sy stem Time : 14:44:35 TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE Pri Master : Auto Pri Slav e : Auto... -
Page 54: Save & Exit Setup
Sav e Data to CMOS & Ex it SETUP Type “Y” will quit the Setup Utility and save the user setup value to RTC CMOS. Type “N” will return to Setup Utility. GA-7VKMLE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & MISC SETUP... -
Page 55: Exit Without Saving
Exit Without Saving AMIBIOS SIMPLE SETUP UTILITY - VERSION 2.00 (C) 2001 American Megatrends, Inc. All Rights Reserv ed STANDARD CMOS SETUP BIOS FEATURES SETUP CHIPSET FEATURES SETUP POWER MANAGEMENT SETUP Quit Without Saving ( Y/N)? N PNP / PCI CONFIGURATION LOAD FAIL-SAFE DEFAULTS LOAD OPTIMIZED DEFAULTS ESC: Quit... - Page 56 GA-7VKMLE Motherboard - 52 -...
-
Page 57: Chapter 4 Technical Reference
Revision History Chapter 4 Technical Reference Block Diagram VGA Port 3 PCI RTL8100BL * RTL8101L ** PCI BUS PCICLK (33MHz) AC97 CODEC "*" for PCB Ver.: 3.1 "**" for PCB Ver.: 4.0 CPU CLK (100/133MHz) AMD-K7 Host Bus 100/133MHz 100/133 MHz HCLK (100/133MHz) KM266/KL266 NPCLK (66M Hz) -
Page 58: Bios Tm Introduction
BIOS directly. Or you may want to keep a backup for your current BIOS, just choose “ Save Current BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS update your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily. -
Page 59: Easy Tune Tm 4 Introduction
Obviously, Gigabyte EasyTune 4 has already turned the "Overclock" technology toward to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in driver CD. Users may make a test drive of "EasyTune 4" to find out more amazing features by themselves. -
Page 60: Flash Bios Method Introduction
F7: Optimized Values Tim e, Date , Hard Disk Type… b. Q-Flash Utility Flash ROM Type...SST 39SF020 Enter: Run hi: Move GA-7VKMLE Motherboard INTEGRATED PERIPHERALS HARDWARE MONITOR & M ISC SETUP SUPERVISOR PASSWORD USER PASSWORD IDE HDD AUTO DETECTION SAVE & EXIT SETUP... - Page 61 Load BIOS From Floppy !In the A:drive, insert the "BIOS" diskette, then Press Enter to Run. XXXX.XX Total Size: 1.39M F5: Refresh Where XXXX.XX is name of the BIOS file. !Press Enter to Run. Are you sure to update BIOS? [Enter] to contiune Or [ESC] ot abort...
- Page 62 Method 2: @ BIOS Utility If you don't have DOS boot disk, we recommend that you used Gigabyte @BIOS flash BIOS. Press here. 1.Click "@BIOS" 3.Click "P". 4.Click here. Methods and steps: I. Update BIOS through Internet a. Click "Internet Update" icon b.
- Page 63 Otherwise, your system won't boot. c. In method I, if the BIOS file you need cannot be found in @BIOS Gigabyte's web site for downloading and updating it according to method II. d. Please note that any interruption during updating will cause system unbooted...
- Page 64 GA-7VKMLE Motherboard - 60 -...
-
Page 65: Chapter 5 Appendix
Revision History Chapter 5 Appendix Install Drivers Pictures below are shown in Windows XP (CD ver. 2.2) Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the setup.exe. - Page 66 This patch driver can help you to resolve the USB device wake up S3 hang up issue in XP. n RealTek LAN Driver RealTek 10/100 LAN driver for 81xx series chips. n RealTek AC97 Audio Driver Audio driver for Realtek AC97 codec chipset . GA-7VKMLE Motherboard Driver install finished!! you have to reboot system!! - 62 -...
-
Page 67: Software Application
SOFTWARE APPLICATION This page reveals the value-added software developed by Gigabyte and its worldwide partners. n Gigabyte Windows Utilities Manager(GWUM) This utility can integrate the Gigabyte's applications in the system tray. n Gigabyte Management Tool(GMT) A useful tool which can manage the computer via the network. -
Page 68: Software Information
SOFTWARE INFORMATION This page list the contects of softwares and drivers in this CD title. HARDWARE INFORMATION This page lists all device you have for this motherboard. CONTACT US Please see the last page for details. GA-7VKMLE Motherboard - 64 -... - Page 69 EasyTune 4 Utilities Installation Powerful utility that integrates the overclocking and hardware monitoring functions 1. Click "EasyTune4" item. 3. Click "Finish" to restart computer. 5. Click "HELP". 2. Click "Next". 4. Right Click the icon to start "EasyTune 4". - 65 - Appendix...
- Page 70 You also need to go through some rather different steps in the installation process. Therefore, we suggest that you refer to the installation steps in the RAID manual at our website. (Please download it at http://tw.giga-byte.com/support/user_pdf/raid_manual.pdf) GA-7VKMLE Motherboard - 66 -...
- Page 71 Question 8: How do I disable onboard VGA card in order to add an external VGA card? Answer: Gigabyte motherboards will auto-detect the external VGA card after it is plugged in, so you don't need to change any setting manually to disable the onboard VGA.
- Page 72 1 long 1 short: DRAM or M/B error 1 long 2 short: Monitor or display card error 1 long 3 short: Keyboard error 1 long 9 short: BIOS ROM error Continuous long beeps: DRAM error Continuous short beeps: Power error GA-7VKMLE Motherboard - 68 -...
-
Page 73: Troubleshooting
Troubleshooting If you encounter any trouble during boot up, please follow the troubleshooting procedures . Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables from motherboard. Please make sure motherboard & chassis are not short ? Please make sure all jumper settings (such as CPU system bus speed, frequency ratio, voltage and etc.) are set properly. - Page 74 Then try to reboot the system. If the above procedure unable to solve your problem, please contact with your local retailer or national distributor for help. Or, you could submit your question to the service mail via Gigabyte website technical support zone (http://www.gigabyte.com.tw).
- Page 75 Technical Support/RMA Sheet Customer/Country: Contact Person: E-mail Add. : Model name/Lot Number: BIOS version: O.S./A.S.: Hardware Mfs. Configuration C P U Memory Brand Video Card Audio Card CD-ROM / DVD-ROM Modem Network AMR / CNR Keyboard Mouse Power supply Other Device Problem Description: Company: Phone No.:...
- Page 76 Electrostatic Discharge Floppy Disk Device Front Side Bus Hard Disk Device Integrated Dual Channel Enhanced Interrupt Request Input / Output IOAPIC Input Output Advanced Programmable Input Controller Industry Standard Architecture Local Area Network GA-7VKMLE Motherboard to be continued... - 72 -...
- Page 77 Acronyms Meaning Logical Block Addressing Light Emitting Diode MH z Megahertz MIDI Musical Interface Digital Interface Memory Translator Hub Memory Protocol Translator Network Interface Card Operating System Original Equipment Manufacturer PCI A.G.P. Controller POST Power-On Self Test Peripheral Component Interconnect RIMM Rambus in-line Memory Module Special Circumstance Instructions...
- Page 78 GA-7VKMLE Motherboard - 74 -...
- Page 79 - 75 - MEMO...
- Page 80 CONTACT US Contact us via the information in this page all over the world. — Taiwan Gigabyte Technology Co., Ltd. Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. TEL: 886 (2) 8912-4888 (50 lines) FAX: 886 (2) 8912-4004 Technical issue: http://tw.giga-byte.com/support/service_main.htm...
