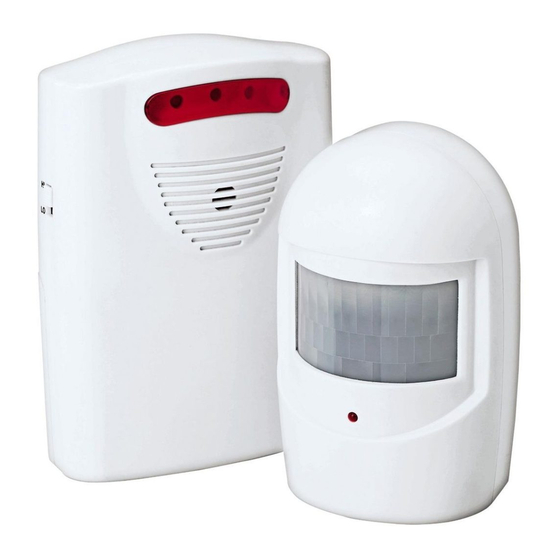

Bunker Hill Security RL-9816B Instruction Manual

Wireless Security Alert System

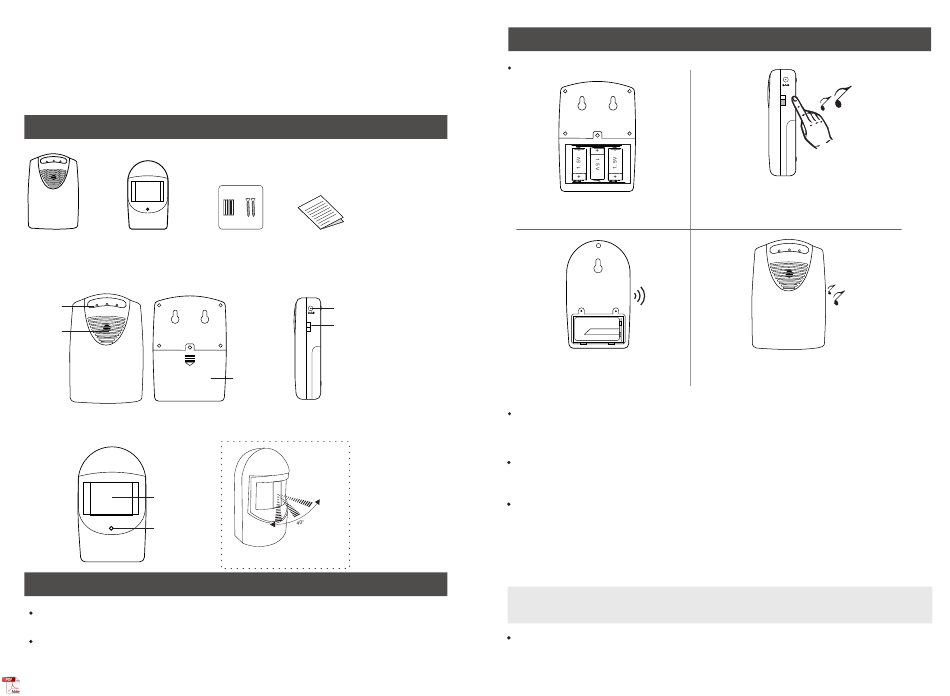

PACKAGE CONTENTS
Indoor Unit Outdoor Unit
(Receiver)
(PIR Transmitter)
*1
*1
Indoor Unit (Receiver)
Indicator light
Speaker
Front view Back view
Outdoor Unit (Transmitter)
PIR
Indicator light
FEATURES
This product adopts the professional IC for wireless transmitter and receiver and adopts learning
code technology for easy operation. One million addresses effectively avoid interference.
When the passive infrared (PIR) transmitter detects thermal signals (for example, human motions), it
will send a wireless signal to the indoor unit and then the indoor unit will give "Ding-Dong, Ding-Dong"
tones and the indicator light will flash twice to remind the user.
1
RL-9816B
Version
1.0
Screw pack User manual
*1 *1
6V Power Plug (Optional)
Power/Volume Level
DC 6V
LO: Low volume
LO
HI
OFF
HI: High volume
OFF: Turn off power
NOTE: When sliding the switch
Battery
from OFF to HI/LO, a "Ding-Dong"
Compartment
tone will be given to indicate
power supply is normal
Side view
Detecting Area
( Horizontal)
°
40 , 0-8m
OPERATION
Learning Code:
-
1
1. Insert batteries to the indoor unit.
3
9V
3. Insert a battery to the outdoor unit
to trigger the PIR , its indicator light will
flash red and at the same time will send
a wireless signal to the indoor unit.
清码
Clearing Code:
Turn off the indoor unit, it will clear the code for the paired transmitter. Therefore, each time you
turn off the indoor unit, you should pair the transmitter to the receiver again by following the
instructions above.
Indoor Unit's DC Power Plug (Optional):
Power requirements: 5V/6V 500mA. When DC power plug is selected, remove batteries from the
compartment.
Indicator Light:
Indoor Unit
Working indicator: The indicator light will flash according to the indicator tone.
Low battery: The indicator light in the middle will stay on constantly when the voltage is < 3.5V.
Outdoor Unit
Working indicator: The indicator light will turn on for 2 seconds when the PIR is triggered.
Low battery: The indicator light will stay on constantly when the voltage is < 5V.
NOTE: When the light indicates low batter y, the standby current will increase and the user should
replace the batteries asap. When the batteries are going to run out, the indicator light will turn dim
gradually and then turn off.
Outdoor Unit's PIR:
1. The time interval for each trigger is about 13 seconds.
2. Avoid direct sunlight when installing the outdoor unit. The sunlight may cause PIR give false alarm.
DC 6V
LO
HI
OFF
2. Slide the volume switch to LO or HI position, the
2
indoor unit will give a "Ding-Dong" tone and its
indicator light will flash to indicate batteries are
installed properly.
4
4. When the indoor unit receives the wireless
signal, it will give a "Ding-Dong" tone and its
indicator light will flash to indicate the pairing
has been successful.
