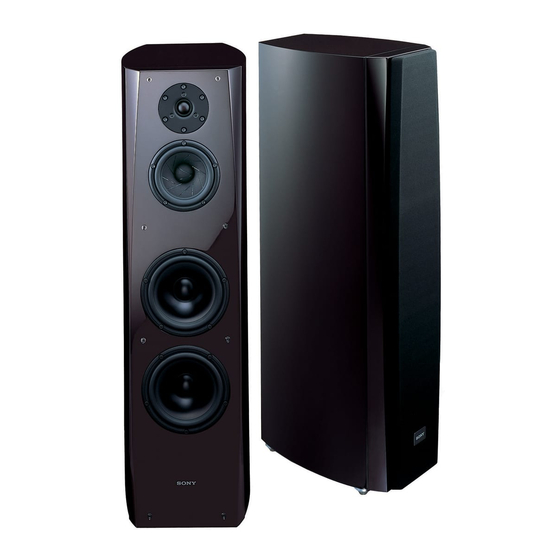

Sony SS-AR2 Operating Instructions

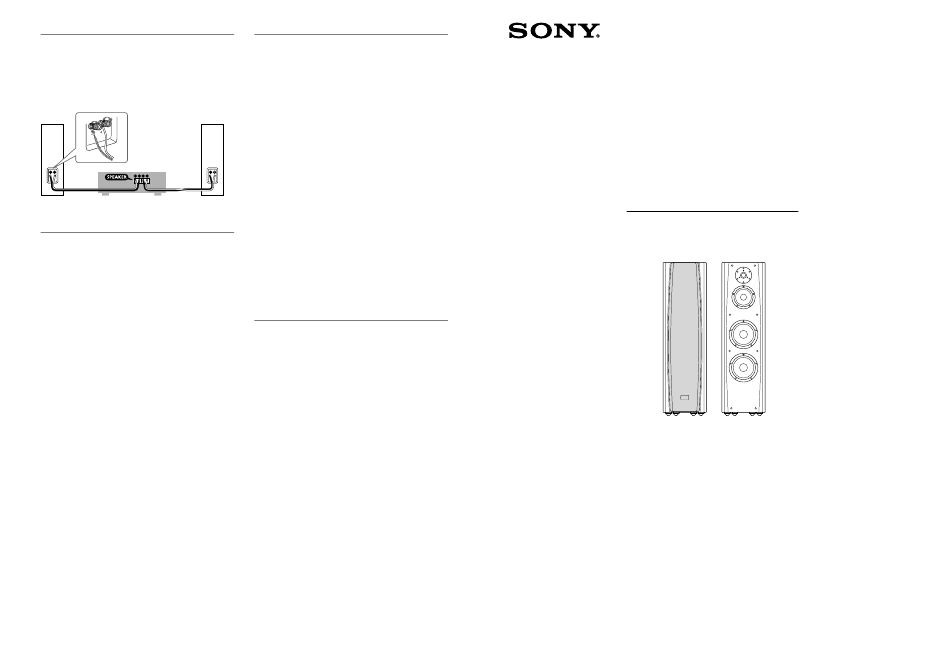

Connecting to the amplifier

Before connecting, turn off the amplifier
Connect the right speaker terminals to the right speaker terminals of the
amplifier, and connect the left speaker terminals to the left speaker terminals
of the amplifier.
Be careful not to short-circuit the speaker cords.
Connect them as shown below.
Right speaker Left speaker
Amplifier
Speaker cords (not supplied) Speaker cords (not supplied)

Notes on usage

 Do not touch the diaphragm of each speaker unit.
 The color and appearance (grain patterns) may vary among the enclosures
because natural wood is used. Depending on lighting conditions, the
enclosures may look different, but this does not indicate damage.
 Do not put any object or your hand into either of the ducts (upper or
lower) located on the rear of the enclosure.
 If there is a foreign object in the duct, do not attempt to take it out by
yourself. Please consult your nearest dealer.
 The spikes are made in screw form. Make sure that the spikes are not loose.
If they are loose, tighten them up by turning each spike clockwise.
*1 Before attaching the grille frame, confirm its correct mounting orientation. When
attaching, press above the pin to firmly secure it. If the grille frame is protruding
outward (it will not come off ), push it all the way in. Attaching the grille frames is
recommended even when not using the speakers in order to protect them from
damage. The speakers can be enjoyed with the grille frames attached, but
superior performance can be achieved by removing the grille frames. When
removing the grille frame, take care not to bend or distort its shape excessively.
*2 The lower duct on the rear is located slightly to the right of the center.

Precautions

To turn an amplifier or a source component on/off
Set the volume of the amplifier to the minimum.
If the bass cannot be heard or the phonic positions of instruments
are indefinite
Make sure to connect the speaker cords, matching +/– to the appropriate
speaker terminals.

Cleaning of the enclosure

Do not use any type of neutral detergent, benzene, or alcohol because

they may damage the surface finish of the enclosure.
To maintain the fine gloss of the enclosure for a long time, gently wipe off

dust using a soft brush or feather duster, and then wipe the enclosure with
the supplied cleaning cloth. (Do not use any type of scrub brush or
sponge.)
 Wipe smudges such as fingerprints or oil spots with the supplied cleaning
cloth carefully.
 When the smudges are hard to remove, wipe them off with a soft cloth
soaked in soapy water, and wrung dry.
 Make sure not to damage the enclosure.
The cleaning cloth is washable and can be used repeatedly.

To avoid damaging the speakers
Do not disassemble or modify the speaker units, network circuits, or the
enclosure.
To avoid damaging the circuit
Do not input the following signals continuously.
FM inter-station noise

High-frequency signals of electronic instruments

 High-frequency signals in the fast-forward and rewind modes of a tape
recorder

Specifications

Speaker system
3-way 4-driver speaker system, Bass reflex
Speaker unit Woofer: 165 mm (6.5 in), corn type (2)
Midrange: 130 mm (5.25 in), corn type (1)
Tweeter: 25 mm (1 in), dome type (1)
Rated impedance 4 ohms
Maximum input power 100 watts
Sensitivity 89 dB (2.83 V/m)
Frequency response 42 Hz - 60,000 Hz
Cross over frequency 400 Hz, 4,000 Hz (multi-slope network)
Dimensions (w/h/d) Approx. 280 mm × 980 mm × 410 mm
(11 1 / in × 38 5 / in × 16 1 / in)
8 8 4
Mass Approx. 38 kg (84 lb)
Supplied accessories Operating Instructions (1)
Warranty card (1)
Cleaning cloth (1)
Design and specifications are subject to change without notice.
Printed in Japan
SPEAKER SYSTEM
SS-AR 2
Operating Instructions
© 2012 Sony Corporation
4-137-984-11(1)
