Know Your Lawn Mower

Read this owner's manual and safety rules carefully before operating the mower.

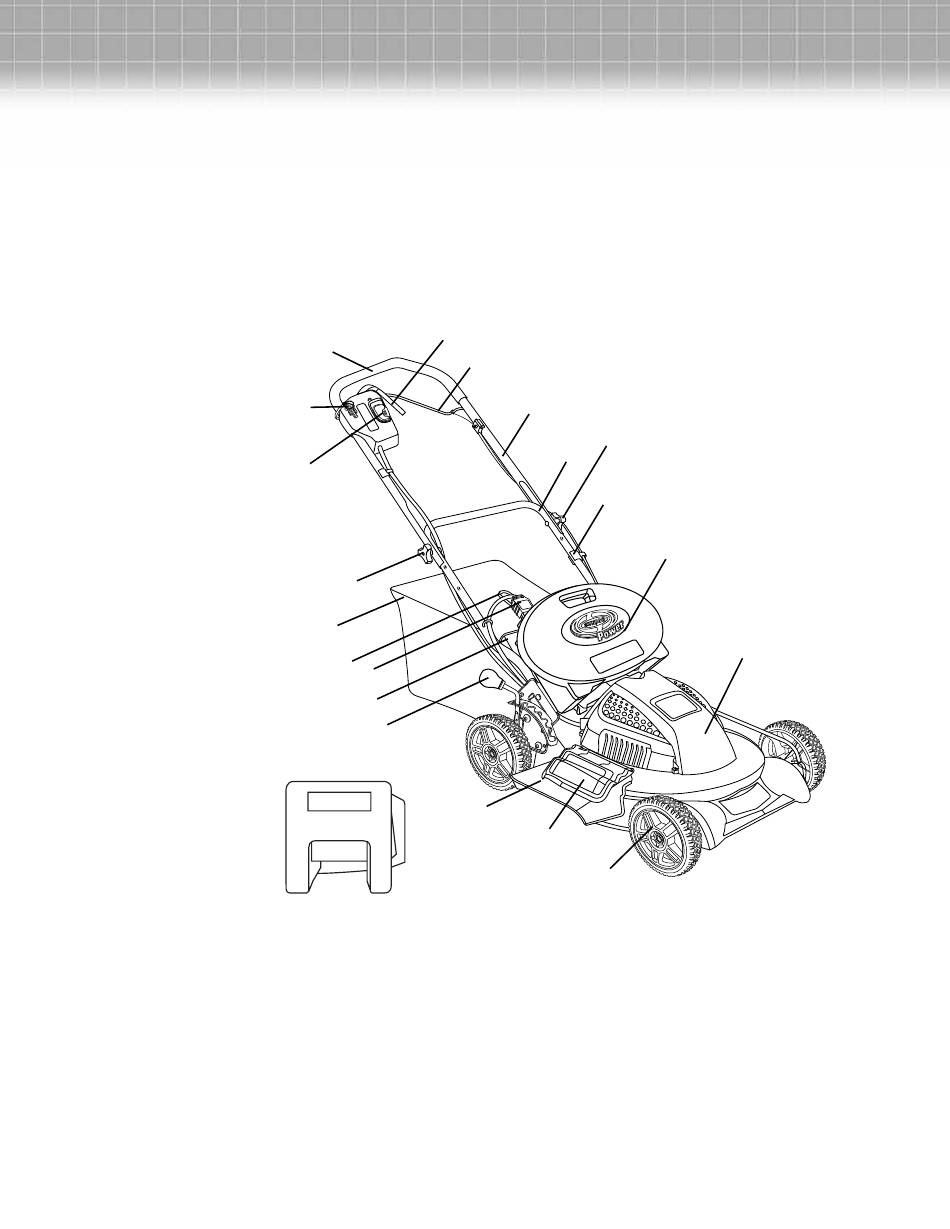

Compare the illustration below to the mower in order to become familiar yourself with the location of
the various controls and adjustments. Save this manual for future reference.
1.
Switch
2. Safety Key
3. Hand Grip
4.
Power Button
5.
Self-Propelled Lever
6. Upper Handle
7. Lower Handle
8.
Handle Knob
9. Cable Clip
10.
Battery
11.
Motor Housing
12. Grass Catcher Bag
13. Grass Catcher Hook
14. Battery Plug
15. Chute Cover
16. Height Adjustment Lever
17.
Discharge Chute
18.
Discharge Cover
19. Wheels
20. Mulch Plug

Technical Data

1. Battery Voltage – 24V D.C.
2. Charging Time – 12 hour
3. No load Speed – 3,500/min
4. Cutting Width – 19" (483 mm)
4
3
5
2
1
8
12
13
14
15
16
17
20
4
6
8
7
9
10
18
19
5. Cutting Height – 1.75" - 3.50" (45 mm – 89 mm)
6. Grass Catcher Capacity – 15.06 gallons/57 ltrs
7. Wheels Size – 7" (front)/8" (rear)
8. Weight – 97 lbs/44 kg (w/ battery)
64 lbs/29 kg (w/out battery)
11
Fig. 1
