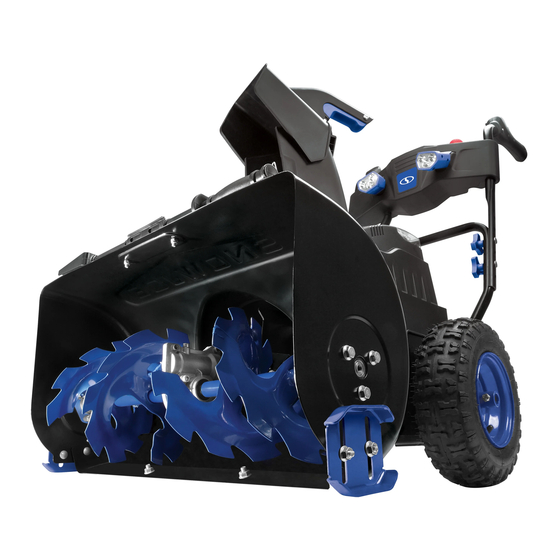

Cordless snow blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
THANKS
OF A REMANUFACTURED PRODUCT.
To make sure you get the most out of
your product, be sure to register online at
CORDLESS SNOW BLOWER
R
24-INCH | 80-VOLT MAX | LED LIGHTS | SELF-PROPELLED | 2-STAGE
Model iON8024-XR-RM
FOR
snowjoe.com
to enjoy full product support.
YOUR
PASTE UPC LABEL HERE
Form No. SJ-iON8024-RM-XR-880E-V1
PURCHASE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iON8024-XR-RM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SNOWJOE iON8024-XR-RM

Summary of Contents for SNOWJOE iON8024-XR-RM

  • Page 1 CORDLESS SNOW BLOWER 24-INCH | 80-VOLT MAX | LED LIGHTS | SELF-PROPELLED | 2-STAGE OPERATOR’S MANUAL Model iON8024-XR-RM A Division of Snow Joe , LLC ® Form No. SJ-iON8024-RM-XR-880E-V1 THANKS YOUR PURCHASE OF A REMANUFACTURED PRODUCT. To make sure you get the most out of your product, be sure to register online at snowjoe.com...

  • Page 2: General Safety Rules

    ® ® • Keep work area clean and well lit – Cluttered, dark areas service center at 1-866-SNOWJOE (1-866-766-9563). invite accidents. • Surfaces – This snow blower is intended for use on • Keep bystanders away – All bystanders and pets should paved surfaces.

  • Page 3: Battery + Charger Safety Instructions

    ® ® battery pack in rain, snow or in damp or wet locations. 1-866-SNOWJOE (1-866-766-9563) for assistance. Do not use the battery pack or charger in the presence of • Battery chemicals cause serious burns – Never let a explosive atmospheres (gaseous fumes, dust or flammable materials) because sparks may be generated when inserting damaged battery pack contact the skin, eyes or mouth.

  • Page 4: Information About The Battery

    ® ® ® 1. The battery packs supplied with your cordless snow customer service center at 1-866-SNOWJOE blower are only partially charged. The battery packs have (1-866-766-9563). to be charged completely before you use the tool for the 3. Electrical plugs must match the outlet. Never modify first time.

  • Page 5: Additional Safety Instructions

    Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for Snow Blowers assistance. • Noise control – When using the snow blower, respect WARNING! Rotating impeller can cause serious injury. the local laws and regulations regarding noise control and Never attempt to unclog or clean unit while auger is running.

  • Page 6: Electrical Safety

    • Skid shoes – Adjust skid shoes to clear gravel or crushed rock surfaces safely. • Prevent unauthorized use – Never leave snow blower unattended with key in. Always stop the motor, remove the key and battery packs to prevent unauthorized use. • Check all controls frequently –...

  • Page 7: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.

  • Page 8: Technical Data

    Know Your Cordless Snow Blower Read the owner’s manual and safety rules carefully before operating your cordless snow blower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

  • Page 9: Carton Contents

    + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless snow blower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

  • Page 10: Discharge Chute Assembly

    Discharge Chute Assembly Chute Clean-Out Tool 1. Use the hex key to remove the 4 nuts from the gear plate. The chute clean-out tool is fastened to the top of the auger Keep them on the side (Fig. 3). housing with a mounting clip (Fig. 6). Fig.

  • Page 11: Battery Pack Operation

    When to Charge the iONMAX iBAT40XR 4. Make certain the entire bottom surface of skid shoe is against the ground to avoid uneven wear on the skid PRO SERIES Lithium-Ion Battery shoes. NOTE: The iONMAX iBAT40XR PRO SERIES lithium-ion 5. Retighten hex nuts securely. battery packs do not develop a "memory"...

  • Page 12: Controls & Features

    ® ® speed (yellow), and press three times for high/max speed 1-866-SNOWJOE (1-866-766-9563) for assistance. (red). Press again for low speed, or to repeat cycle. 6. When charging is complete, remove the battery from the NOTE: The unit will automatically default to neutral when...
  • Page 13 LED Headlights (Fig. 12) Drive Trigger (Left-Handle) (Fig. 14) Two LED headlights are located on the front panel. To activate Squeeze the drive trigger against the left-handle to engage the LED lights: the wheel drive for propelling unit. Forward speed will vary according to snow depth and moisture content.

  • Page 14: Scraper Blade

    Chute Clean-Out Tool (Fig. 6) Discharge Chute (Fig. 17) Snow drawn into the auger housing is discharged out of the WARNING! Hand contact with the rotating impeller chute assembly. is the most common cause of injury associated with snow The discharge chute can be rotated up to 180 degrees by blowers.

  • Page 15: Emergency Stop

    Pre-Start 2. Rotate the safety switch clockwise and pull up the safety switch. Drive motor will not yet run (Fig. 19). 1. Charge batteries – See Charger Operation section on 3. Insert key and turn power switch to the ON position. The page 10.
  • Page 16 To Engage Drive 1. Press the safety button then engage auger trigger. Auger will start spinning. 1. In the control panel, select the appropriate speed for a 2. In the control panel, select the appropriate speed to match comfortable pace (Fig. 21). the snow conditions as well as clearing at a comfortable NOTE: There are 3 forward speeds.

  • Page 17: Operating Tips

    Snow Joe iON8024-XR cordless snow blower, please visit ® Repair or replace any damaged part before restarting and snowjoe.com or contact the Snow Joe + Sun Joe customer ® ® operating the unit.

  • Page 18: Check Tire Pressure

    Proper Care for Battery + Charger Replacing Skid Shoes The skid shoes on the bottom of the snow blower are subject WARNING! To reduce the risk of injury, always unplug to wear. They should be checked periodically and replaced the charger and remove the battery pack from the charger when necessary.
  • Page 19 ® ® compartment washer center at 1-866-SNOWJOE (1-866-766-9563) for assistance. cover Occasionally a foreign object may enter the auger/impeller housing and jam the auger, breaking the shear bolts which secure the auger to the shaft. This allows the auger to turn freely on the shaft which may help prevent damage to the gearcase and its components.
  • Page 20 5. Separate the blower assembly from the drive unit Fig. 30 (Fig. 33). Open motor cover Auger belt Fig. 33 3. Remove the M6 bolt and sprocket cover from sprocket 1 then remove the auger belt from pulley 1 (Fig. 31). (BLOWER ASSEMBLY) (DRIVE UNIT) Fig.
  • Page 21 8. Remove 2 set of shear bolts, gaskets and nuts from the 3. Install the replacement impeller by following the above auger (Fig. 36). steps in reverse order. Replacing Auger Belt Fig. 36 Shear bolt 1. Open the battery compartment cover and remove the 2 screws inside the compartment (Fig.

  • Page 22: Auger Gearcase

    Snow Joe + Sun Joe ® ® ® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Auger Shaft 2. Clean the snow blower before storing or transporting. At least once a season, remove the shear bolts from the Be sure to secure the unit while transporting.

  • Page 23: Battery Caution + Disposal Information

    Service + Support from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician If your Snow Joe iON8024-XR-RM cordless snow blower ® for help. requires service or maintenance, please call the Snow Joe ®...
  • Page 24 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 25 We’re here to help Monday through Friday from 9AM to 6PM EST. You can reach us at 1-866-SNOWJOE (1-866-766-9563), online EXCLUSIONS: at snowjoe.com, via email at help@snowjoe.com or tweet us • Wearing parts like belts, augers, chains and tines are @snowjoe.
  • Page 26 snowjoe.com...
