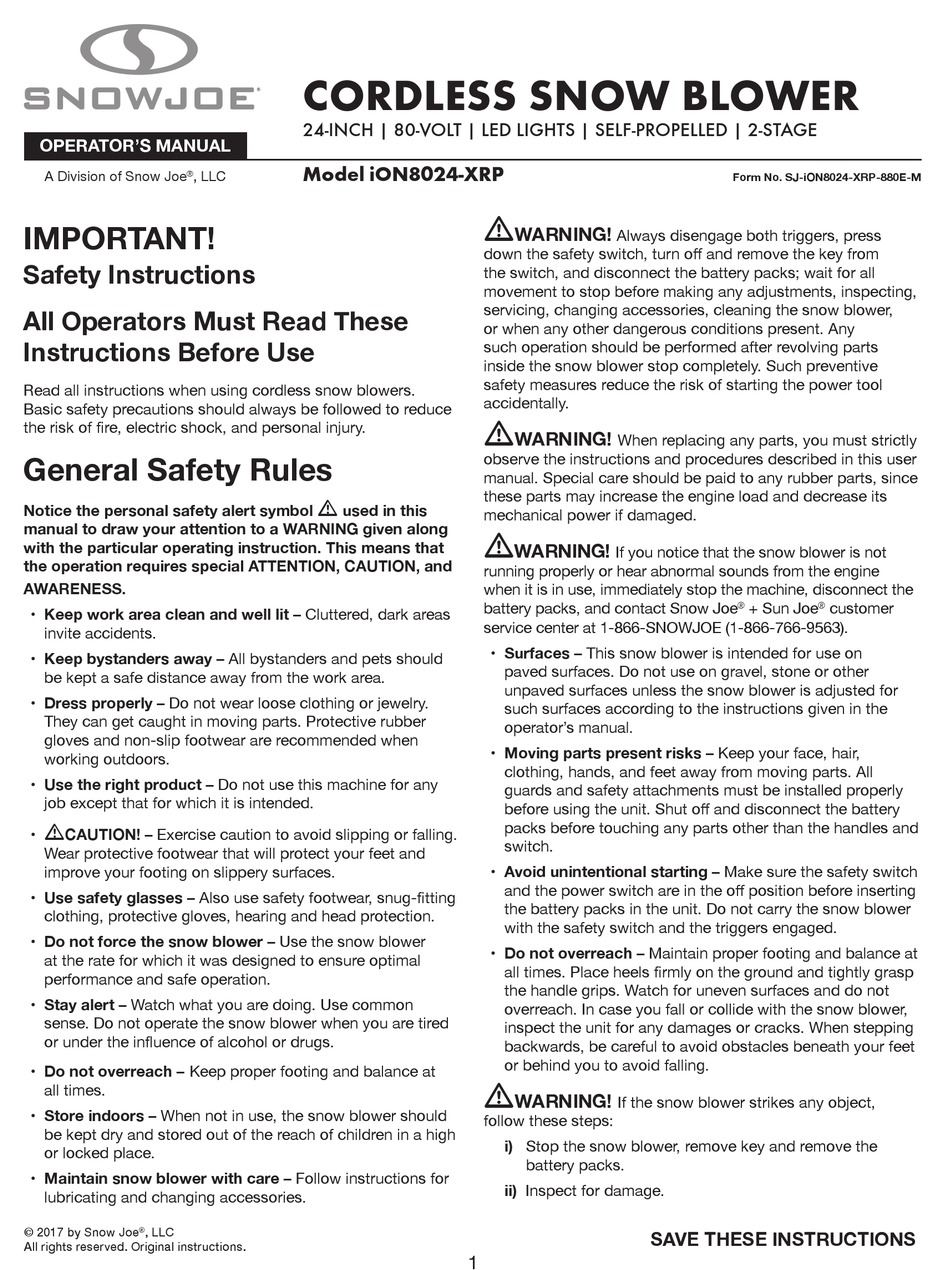

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Read all instructions when using cordless snow blowers.

Basic safety precautions should always be followed to reduce

the risk of fire, electric shock, and personal injury.

General Safety Rules

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

• Keep work area clean and well lit – Cluttered, dark areas

invite accidents.

• Keep bystanders away – All bystanders and pets should

be kept a safe distance away from the work area.

• Dress properly – Do not wear loose clothing or jewelry.

They can get caught in moving parts. Protective rubber

gloves and non-slip footwear are recommended when

working outdoors.

• Use the right product – Do not use this machine for any

job except that for which it is intended.

•

CAUTION! – Exercise caution to avoid slipping or falling.

Wear protective footwear that will protect your feet and

improve your footing on slippery surfaces.

• Use safety glasses – Also use safety footwear, snug-fitting

clothing, protective gloves, hearing and head protection.

• Do not force the snow blower – Use the snow blower

at the rate for which it was designed to ensure optimal

performance and safe operation.

• Stay alert – Watch what you are doing. Use common

sense. Do not operate the snow blower when you are tired

or under the influence of alcohol or drugs.

• Do not overreach – Keep proper footing and balance at

all times.

• Store indoors – When not in use, the snow blower should

be kept dry and stored out of the reach of children in a high

or locked place.

• Maintain snow blower with care – Follow instructions for

lubricating and changing accessories.

, LLC

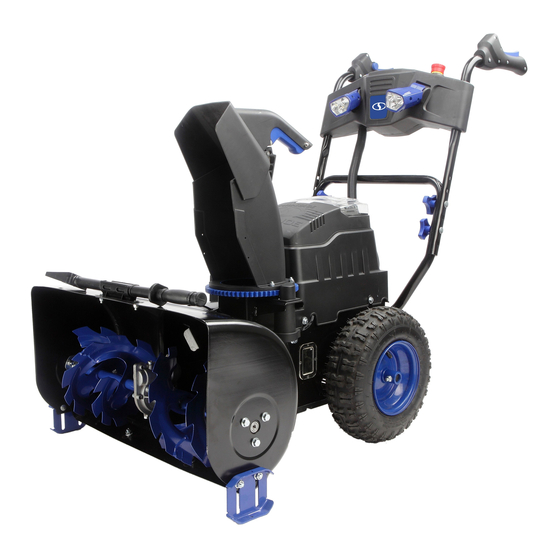

CORDLESS SNOW BLOWER

24-INCH | 80-VOLT | LED LIGHTS | SELF-PROPELLED | 2-STAGE

Model iON8024-XRP

used in this

WARNING!

Always disengage both triggers, press

down the safety switch, turn off and remove the key from

the switch, and disconnect the battery packs; wait for all

movement to stop before making any adjustments, inspecting,

servicing, changing accessories, cleaning the snow blower,

or when any other dangerous conditions present. Any

such operation should be performed after revolving parts

inside the snow blower stop completely. Such preventive

safety measures reduce the risk of starting the power tool

accidentally.

WARNING!

When replacing any parts, you must strictly

observe the instructions and procedures described in this user

manual. Special care should be paid to any rubber parts, since

these parts may increase the engine load and decrease its

mechanical power if damaged.

WARNING!

If you notice that the snow blower is not

running properly or hear abnormal sounds from the engine

when it is in use, immediately stop the machine, disconnect the

battery packs, and contact Snow Joe

service center at 1-866-SNOWJOE (1-866-766-9563).

• Surfaces – This snow blower is intended for use on

paved surfaces. Do not use on gravel, stone or other

unpaved surfaces unless the snow blower is adjusted for

such surfaces according to the instructions given in the

operator's manual.

• Moving parts present risks – Keep your face, hair,

clothing, hands, and feet away from moving parts. All

guards and safety attachments must be installed properly

before using the unit. Shut off and disconnect the battery

packs before touching any parts other than the handles and

switch.

• Avoid unintentional starting – Make sure the safety switch

and the power switch are in the off position before inserting

the battery packs in the unit. Do not carry the snow blower

with the safety switch and the triggers engaged.

• Do not overreach – Maintain proper footing and balance at

all times. Place heels firmly on the ground and tightly grasp

the handle grips. Watch for uneven surfaces and do not

overreach. In case you fall or collide with the snow blower,

inspect the unit for any damages or cracks. When stepping

backwards, be careful to avoid obstacles beneath your feet

or behind you to avoid falling.

WARNING!

If the snow blower strikes any object,

follow these steps:

i) Stop the snow blower, remove key and remove the

battery packs.

ii) Inspect for damage.

Form No. SJ-iON8024-XRP-880E-M

+ Sun Joe

customer

SAVE THESE INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the iON8024-XRP and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE iON8024-XRP

Page 1 ® ® • Keep work area clean and well lit – Cluttered, dark areas service center at 1-866-SNOWJOE (1-866-766-9563). invite accidents. • Surfaces – This snow blower is intended for use on • Keep bystanders away – All bystanders and pets should paved surfaces.
Page 2: Battery + Charger Safety Instructions
® ® battery pack in rain, snow or in damp or wet locations. 1-866-SNOWJOE (1-866-766-9563) for assistance. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable • Battery chemicals cause serious burns – Never let a materials) because sparks may be generated when inserting damaged battery pack contact the skin, eyes or mouth.
Page 3: Information About The Battery
® ® ® 1. The battery packs supplied with your cordless snow customer service center at 1-866-SNOWJOE blower are only partially charged. The battery packs have (1-866-766-9563). to be charged completely before you use the tool for the 3. Electrical plugs must match the outlet. Never modify first time.
Page 4: Additional Safety Instructions
Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for Snow Blowers assistance. • Noise control – When using the snow blower, respect WARNING! Rotating impeller can cause serious injury. the local laws and regulations regarding noise control and Never attempt to unclog or clean unit while auger is running.
Page 5: Electrical Safety
• Skid shoes – Adjust skid shoes to clear gravel or crushed rock surfaces safely. • Prevent unauthorized use – Never leave snow blower unattended with key in. Always stop the motor, remove the key and battery packs to prevent unauthorized use. • Check all controls frequently –...
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.
Page 7: Technical Data
Know Your Cordless Snow Blower Read the owner’s manual and safety rules carefully before operating your cordless snow blower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 8: Carton Contents
® ® handle 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless snow blower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.
Page 9: Discharge Chute Assembly
Discharge Chute Assembly Chute Clean-Out Tool 1. Use the hex key to remove the 4 nuts from the gear plate. The chute clean-out tool is fastened to the top of the auger Keep them on the side (Fig. 3). housing with a mounting clip (Fig. 6). Fig.
Page 10: Battery Pack Operation
When to Charge the EcoSharp 4. Make certain the entire bottom surface of skid shoe is ® against the ground to avoid uneven wear on the skid iBAT40XRP Lithium-Ion Battery shoes. NOTE: The EcoSharp PRO iBAT40XRP lithium-ion battery 5. Retighten hex nuts securely. ®...
Page 11: Controls & Features
® ® for a slowest speed and press for a fastest speed. 1-866-SNOWJOE (1-866-766-9563) for assistance. 2. Reverse Button – Press reverse button to control 6. When charging is complete, remove the battery from the reverse travel.
Page 12 LED Headlights (Fig. 12) Drive Trigger (Left-Handle) (Fig. 1) Two LED headlights are located on the front panel. To activate Squeeze the drive trigger against the left-handle to engage the LED lights: the wheel drive for propelling unit. Forward speed will vary according to snow depth and moisture content.
Page 13: Scraper Blade
Chute Clean-Out Tool (Fig. 6) Discharge Chute (Fig. 17) Snow drawn into the auger housing is discharged out of the WARNING! Hand contact with the rotating impeller chute assembly. is the most common cause of injury associated with snow The discharge chute can be rotated 180 degrees by pressing blowers.
Page 14: Emergency Stop
Pre-Start 2. Rotate the safety switch clockwise and pull up the safety switch. Drive motor will not yet run (Fig. 19). 1. Charge batteries – See Charger Operation section on 3. Insert key and turn power switch to the ON position. The page 10.
Page 15: To Engage Drive
To Engage Drive 3. Engage drive trigger. The snow blower will move and start plowing snow. 1. In the control panel, select a speed appropriate for a pace IMPORTANT! The auger will not engage when in either you’re comfortable with (Fig. 21). REVERSE or XPORT mode.
Page 16: Operating Tips
To order genuine replacement parts or accessories for the 2. Keep children, pets, and bystanders away from the area of Snow Joe iON8024-XRP cordless snow blower, please visit ® operation. Be aware that the normal noise of the machine snowjoe.com or contact the Snow Joe...
Page 17: Check Tire Pressure
Proper Care for Battery + Charger Replacing Skid Shoes The skid shoes on the bottom of the snow blower are subject WARNING! To reduce the risk of injury, always unplug to wear. They should be checked periodically and replaced the charger and remove the battery pack from the charger when necessary.
Page 18 ® ® compartment washer center at 1-866-SNOWJOE (1-866-766-9563) for assistance. cover Occasionally a foreign object may enter the auger/impeller housing and jam the auger, breaking the shear bolts which secure the auger to the shaft. This allows the auger to turn freely on the shaft which may help prevent damage to the gearcase and its components.
Page 19 5. Separate the blower assembly from the drive unit Fig. 30 (Fig. 33). Open motor cover Auger belt Fig. 33 3. Remove the M6 bolt and sprocket cover from sprocket 1 then remove the auger belt from pulley 1 (Fig. 31). (BLOWER ASSEMBLY) (DRIVE UNIT) Fig.
Page 20 8. Remove 2 set of shear bolts, gaskets and nuts from the 3. Install the replacement impeller by following the above auger (Fig. 36). steps in reverse order. Replacing Auger Belt Fig. 36 Shear bolt 1. Open the battery compartment cover and remove the 2 screws inside the compartment (Fig.
Page 21: Auger Gearcase
Snow Joe + Sun Joe ® ® ® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Auger Shaft 2. Clean the snow blower before storing or transporting. At least once a season, remove the shear bolts from the Be sure to secure the unit while transporting.
Page 22: Battery Caution + Disposal Information
Service + Support from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician If your Snow Joe iON8024-XRP cordless snow blower ® for help. requires service or maintenance, please call the Snow Joe ®...
Page 23: Optional Accessories
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
Page 24 NOTES...
Page 25 NOTES...
Page 26 NOTES...
Page 27 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
Page 28 WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
