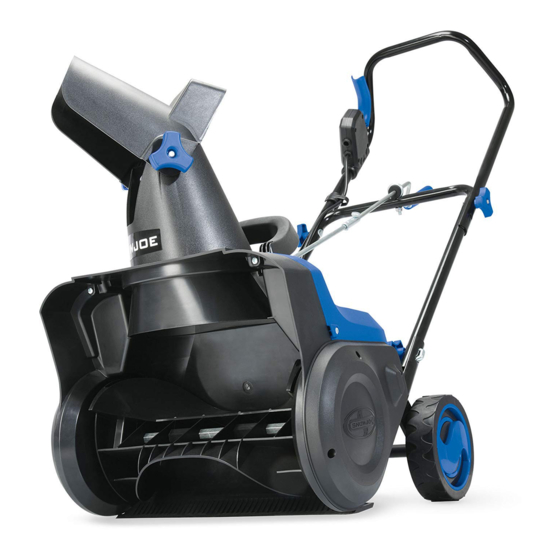

Cordless snow blower

Advertisement

Quick Links

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
THANKS
OF A REMANUFACTURED PRODUCT.
To make sure you get the most out of
your product, be sure to register online at
CORDLESS SNOW BLOWER
R
15-INCH | 40-VOLT MAX*
Model iON15SB-LT-RM
FOR
snowjoe.com
to enjoy full product support.
AFFIX SERIAL NUMBER LABEL
YOUR
Form No. SJ-iON15SB-LT-RM-880E-V1
PURCHASE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iON15SB-LT-RM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE iON15SB-LT-RM

  • Page 1 15-INCH | 40-VOLT MAX* OPERATOR’S MANUAL Model iON15SB-LT-RM A Division of Snow Joe , LLC ® Form No. SJ-iON15SB-LT-RM-880E-V1 THANKS YOUR PURCHASE OF A REMANUFACTURED PRODUCT. To make sure you get the most out of your product, be sure to register online at snowjoe.com...
  • Page 2: General Safety Rules

    15-INCH | 40-VOLT MAX* OPERATOR’S MANUAL Model iON15SB-LT-RM A Division of Snow Joe , LLC ® Form No. SJ-iON15SB-LT-RM-880E-V1 IMPORTANT! WARNING! Always disengage the switch lever and remove the battery pack before making any adjustments, Safety Instructions inspecting, servicing, changing accessories, cleaning the snow blower, or when any other dangerous conditions present.
  • Page 3: Battery + Charger Safety Instructions

    ® ® 1-866-SNOWJOE (1-866-766-9563) for assistance. • Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. • Battery chemicals cause serious burns – Never let a Do not use the battery pack or charger in the presence of damaged battery pack contact the skin, eyes or mouth.
  • Page 4 ® ® ® 1. The battery pack supplied with your cordless snow blower customer service center at 1-866-SNOWJOE is only partially charged. The battery pack has to be (1-866-766-9563). charged completely before you use the tool for the 3. Electrical plugs must match the outlet. Never modify first time.
  • Page 5: Additional Safety Instructions

    ® ® minutes must be discarded. 1-866-SNOWJOE (1-866-766-9563) for assistance. 9. When handling batteries, be wary of electrostatic charge. • Noise control – When using the snow blower, respect Electrostatic discharges can damage the electronic the local laws and regulations regarding noise control and protection system and the battery cells.
  • Page 6: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand WARNING! Do not expose the and follow all instructions in the unit to rain or wet conditions.
  • Page 7: Technical Data

    Know Your Cordless Snow Blower Read the owner’s manual and safety rules carefully before operating your cordless snow blower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 8: Carton Contents

    + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). Handle knob NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric snow thrower. The packaging is made of recyclable materials.
  • Page 9 Chute Crank Assembly Fig. 8 1. The cotter pin comes pre-assembled on the unit, as shown. Remove the cotter pin and proceed to step 2 (Fig. 5). Fig. 5 Cotter pin 3. Secure the crank rod in place and replace the cotter pin (Figs.
  • Page 10: Discharge Chute Assembly

    5. Slide the upper crank rod into the top of the crank rod 2. Secure the deflector bolts, washers and knobs. Make sure connector (Fig. 12). the knobs are tightened (Fig. 15). Fig. 15 Fig. 12 Upper crank rod Crank rod connector Lower crank rod...
  • Page 11: Charger Operation

    Charger Operation Fig. 17 WARNING! Charge only iONMAX iBAT40-LT lithium- ion battery packs in compatible iONMAX iCHRG40 lithium-ion battery chargers. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to flow into the charger's AC/DC plug.
  • Page 12: Starting The Machine

    ® ® Starting the Machine 1-866-SNOWJOE (1-866-766-9563) for assistance. 7. When charging is complete, remove the battery from the 1. Open the battery compartment cover and slide the battery charger by pulling the push lock button and sliding the down until it clicks to lock it into position (Fig.
  • Page 13: Operating Tips

    Operating Tips Changing Throw Direction and Throw Height WARNING! Foreign objects, such as rocks, broken glass, nails, wire, or string, can be picked up and thrown by WARNING the snow blower, causing serious personal injury. Remove all foreign objects from the area to be plowed before operating the snow blower.
  • Page 14: General Maintenance Tips

    Maintenance Fig. 23 To order genuine replacement parts or accessories for the Snow Joe iON15SB-LT-RM cordless snow blower, please visit ® snowjoe.com or contact the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563). WARNING! Make sure to turn off the switch and...
  • Page 15 Replacing the Plastic Auger 4. Remove the screws and washer on the other side, and remove the auger axle (Figs. 27 – 28). NOTE: When replacing worn plastic plates, pay close attention to any different types of bolts and nuts and where they are Fig.
  • Page 16: Replacing The Belt

    Replacing the Scraper Bar 2. Use your right hand to turn the rib side of the belt up and pull upwards while turning the auger pulley 1. The scraper bar is located at the base of the snow thrower counterclockwise with your left hand. The belt can be beneath the rotor housing (Fig.
  • Page 17: Battery Caution + Disposal Information

    ® ® ® shorten the life of the batteries or cause batteries to leak. customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. 4. Do not mix old and new batteries. 2. Clean the snow blower before storing or transporting. 5. Do not mix Alkaline, Standard (Carbon-Zinc) or Be sure to secure the unit while transporting.
  • Page 18: Federal Communications Commission (Fcc)

    iCHRG40 Federal Communications Commission (FCC) WARNING! Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 19 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 20 NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 We’re here to help Monday through Friday from 9AM to 6PM EST. You can reach us at 1-866-SNOWJOE (1-866-766-9563), online EXCLUSIONS: at snowjoe.com, via email at help@snowjoe.com or tweet us • Wearing parts like belts, augers, chains and tines are @snowjoe.
  • Page 24 snowjoe.com...
