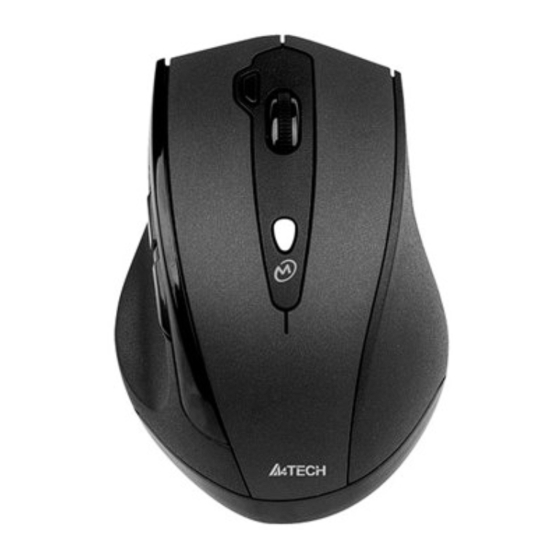

A4Tech MeetingMan G10-810L User Manual

Wireless mouse
Hide thumbs

Advertisement

Quick Links

Download this manual
MeetingMan
Wireless Mouse
User Manual
Model: G10-810L,G10-810
www.a4tech.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MeetingMan G10-810L and is the answer not in the manual?

Questions and answers

Related Manuals for A4Tech MeetingMan G10-810L

Summary of Contents for A4Tech MeetingMan G10-810L

  • Page 1 MeetingMan Wireless Mouse User Manual Model: G10-810L,G10-810 www.a4tech.com...
  • Page 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Federal Communications Commission Requirements The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules.
  • Page 3 1. Hardware Installation 1). Connect the 10-Link receiver Take out the 10-Link receiver from bottom of the mouse and connect it to your computer or Notebook. Notes: 1. If you are using the receiver in a long range meeting room or there is strong wireless conflicts nearby, adopting the receiver with a USB extension cable to keep it away from the computer or any interfering sources.
  • Page 4 (Note: The software is applicable to Windows 2000/ XP/ 2003/ Vista/ Windows 7) 2. Software Installation The G10 MeetingMan offers 2 flexible ways to install the driver, Normal Installation and Mobile Execution. The MeetingMan main program has a special feature that it can be executed directly without the need to install the software to Windows system.
  • Page 5 (Otherwise, installation is failed and you have to remove the software and re-install.) To remove the driver, follow the steps: Go to START>> PROGRAMS >>A4TECH Software >> "G10 MeetingMan" >> "Uninstall G10 MeetingMan, see figure on the right. Mobile Execution: You may copy and store the Mobile Edition files to your storage device, e.g., a memory stick,...
  • Page 6 3. The G10 MeetingMan Main Menu: Mode Name/Select: Default: Name a new mode or Mode Number: Resume to default select modes to use. Select mode settings. number to edit. ① ④ ② ③ Description of Reminder: Enter short description here Mouse Button Definition: for each button setting, which Display current mouse button...
  • Page 7 Main Menu of G10 MeetingMan (1) Knowing the G10 MeetingMan Software Before you are getting started to use this product, it is vital to understand the basic principles and design concepts of MeetingMan. For each of MeetingMan’s script file, it will contain 5 different working modes, and each working mode can setup 7 buttons on the mouse with various functionalities.
  • Page 8 . Mode Name/Select Click on “Mode Name/Select” on the Main Menu, the mode setup screen will pop up as shown on the right. You may tick off the modes you would not need temporarily from bottom to top order, or tick the mode you need from top to bottom order.
  • Page 9 ④. Default Click the "Default" a reminder will pop up as shown on the right. Click "OK" will resume all the buttons to the original settings, or click "Cancel" to exit the screen without any change. - 8 -...
  • Page 10 Functionality Listing of Mouse Buttons in Each Working Mode Mouse Button Diagram Mode 1 Mode 2 Mode 3 Mode 4 Mode 3 Mouse Button Office TutorPen Meeting Open file LaserPointer Gaming Meeting Right Button From Current Slide Right Button From current Right Button or Exit Slide slide or Exit Slide...
  • Page 11 Report Rate 125Hz(8ms) 125Hz(8ms) 125Hz(8ms) 125Hz 250Hz (2) Button Settings and Relevant Functions Functions Descriptions Figures Button Click any “button definition area” on the main menu; you will see the function listing Settings as shown on the right. According to your preference, you may select one of them as the button setting.
  • Page 12 5) Click “Apply” to save the new button setting. Example: While in the session of a meeting or teaching, it is embarrassing to keep others waiting due to searching for a document, or look up for a program or a shortcut. With “Open a File” function, you may have better way to resolve this issue.
  • Page 13 up(UP) and Wheel down (DN). Office Sets You may setup any one of Office command sets such as: “Zoom In, Zoom Out, Paste Text, Double Click and Treble Click”to the mouse buttons. Zoom In/Out：One click to perform zoom in or zoom out function, applicable to CAD, ACDSee, Windows or text editing programs.
  • Page 14 TutorPen This TutorPen function is available for mouse button 2,3,4,5, and 6. Usage: Press "Mode Shift " button to switch to Mode 2, then press and hold the mouse 6th button to draw lines. You can double-click on the same button to erase lines you just drew, triple-click on the same button will erase all lines on the screen.
  • Page 15 ⑥ Click the Description of Reminder area on the main menu, a reminder screen will Description appear as shown on the right. Enter the reminder description, which will be of Reminder displayed on the right-down corner of your screen as the key setting reminder. DPI Setting Customizable and independent 2,000 DPI resolution for each X and Y axes.
  • Page 16 250 Hz High Game Plays G10 MeetingMan is A4Tech’s latest innovation. According to various applications, the bandwidth is divided into 3 report rate levels: 1X bandwidth: USB report rate is 125Hz, suitable for office and general users, power consumption is the lowest.
  • Page 17 (3) Gesture 16-in-1 On the button definition area of Main menu, click “ ” of button or , you will see the “Gesture 16-in-1” on the function listing as shown on the right. Select “Gesture 16-in-1 Setting” from the listing; the setup screen will pop up as shown on the right.
  • Page 18 Usage: Press and hold the gesture button to draw any of 16 lines and directions as shown on the right, then release the button. The corresponding commands will be executed immediately, including Keyboard, Mouse, Hyperlink, Office, Text, Multimedia, Internet and Key Setting Reminder, which can be preset and store to your receiver memory.
  • Page 19 Original After drawing the line, the column has been enlarged 4. Draw the line in Windows Picture and Fax Viewer. Original After drawing the line, the column has been enlarged - 18 -...
  • Page 20 (4) Task Listing of G10 MeetingMan There are 2 ways will display the working mode number when it is shifted: Display 1: When the mode is shifted, the memo screen will be displayed on the screen center to remind current mode number information as shown on the right. Display 2: Meanwhile, the small MeetingMan icon on the system tray will shift with mode numbers .
  • Page 21 2. Mouse-Control Panel: Select “Mouse-Control Panel” will open “Mouse Properties” setup screen of your Windows system, e.g., you may setup mouse pointers and other often -used mouse settings. 3. 4-way Wheel: A. The 4-way Wheel is the latest scrolling technology. It splits working screen into 2 areas, A and B as shown on the right.
  • Page 22 5. Power Management: Click the icon" "at the right-down corner of your system tray and select "Power Management" to define wake-up modes and sleeping time. According to the stand-by status, the intelligent power-saving management supports "Slight, Little, Middle & Deep" 4 working modes. User may define the time interval to enter into the Deep Sleeping Mode, and 6 seconds enter into Deep Sleeping Mode after the PC is power off.
  • Page 23 Special Note: The laser pointer on your mouse requires higher power to function, if supplied voltage under 1.1 volts and the remaining power is less than 25%, it will not work properly. Replace with new batteries if needed. 6. Wireless Working Range Setting: You may setup wireless working ranging within 15~20 meters;...
  • Page 24 8. RF Channel Setting: Auto Channel Hopping: This is the G10 MeetingMan default setting. Applicable to single-alone user, or when there is no wireless interference nearby. Channel-lock: If more than one set of wireless Mice&KBs are used in the same site, you may perform ”Channel-lock”...
  • Page 25 9. Wireless Signal Monitoring: Search and Keep away from Wireless Conflicts: If wireless mouse is not working smoothly due to wireless conflicts, use wireless signal monitoring to monitor and improve the signal level and get best improvements. Detect Receiving Signal Level: Moving the mouse, the indicator will display current signal level.
  • Page 26 Portability: The 10-Link Receiver is capable of linking 5 sets of Mice&KBs, you may leave 10-Link receiver installed on your notebook and use any paired A4Tech G10 products at home or in the office with the same receiver. Note: The 10-Link receiver is made in Blue color for better identification. The Black color receiver is a conventional receiver and will not support all the advanced features of 10-Link receiver.
  • Page 27 10-Link Meeting Management: In this section, you will be able to manage the 10-Link Meeting for each linked mouse and keyboard. Click “10-Link Meeting Management” will bring the management screen as shown on the right. Management of Linked Mice and Keyboards: From the screen, you may see the listing of linked mice and keyboards with their IDs and Names.
  • Page 28 1. New IDs for Mice/KBs: After the pairing process is completed, you may give a new ID for the mouse or keyboard, which will be displayed on the screen right under the cursor position for easier identification. Or, “Unnamed” will be used if you leave it blank. You may choose to display “Names” or “Color Labels”...
  • Page 29 2. Setting up 5-color TutorPen: Press "Mode Shift” button to switch to Mode 2, then press and hold the mouse 6th button to draw lines. You can double-click on the same button to erase lines you just drew, triple-click on the same button will erase all lines on the screen.
  • Page 30 How to Add a New Device Using “New Mice/KBs ID Pairing” Step 1. 1. Select “10-Link Meeting Technology” from the G10 MeetingMan Task Listing, the main screen of “10-Link Meeting Management” will pop up as shown on the right. (For better operation, you may need another mouse to perform ID pairing before the wireless mouse is applicable).
  • Page 31 Step 4. After ID pairing is completed, move the mouse and reply YES if mouse moves fine, then click NEXT. In case the ID pairing fails, click “BACK” to repeat steps 2,3 and perform the ID pairing procedure again. Step 4 Step 5.
  • Page 32 12. Exit: Exit G10 MeetingMan software. (5) Innovative GlassRun Technology (Low Power Consumption, High Performance Optical Engine) The “GlassRun” is the new technology that it collects all the diffusion light and improves image quality. It saves 30% power consumption than a conventional mouse and works even on slightly dusty glass.
  • Page 33 To ensure that your mouse sends and receives perfectly, please read below instructions for your reference: 1. Avoid Channel Confliction from Auto Channel Hopping 1). Left-click on the icon " " at the right-down corner of 2). Select "Channel-lock" to define a private channel to your system tray and select "RF Channel Setting".
  • Page 34 4. Try another USB port. Product Support Need help with technical support? Please go to: http://www.a4tech.com/ennew/support.asp and our support team will respond within 72 hours. **All pictures and description mentioned above is for reference only and is subject to change without notice.
